Lowell LT2-830-T870-VB 8-Inch Coaxial Lay-in Tile Ceiling Speaker with 70V Transformer - 20W Coaxial Driver, 12 Oz Magnet, 2x2 Grille & 0.8 Cu Ft Enclosure - Perfect for Commercial Background Music, Restaurants, and Office PA Systems

Lowell LT2-830-T870-VB 8-Inch Coaxial Lay-in Tile Ceiling Speaker with 70V Transformer, 2x2 Grille, 0.8 Cubic Feet Enclosure; 20W Coaxial Driver with 12 Oz Magnet Quick-install speaker system for suspended tile ceilings features an 8-inch coaxial driver, 70V transformer, 2x2 fine perforation grille with sub-plate and volume enclosure. Ideal for foreground music Key Features: - Driver (CT830A): 8 inch 20W coaxial driver with 12 oz magnet, frequency response of 57Hz-14kHz (+/-6dB), 44Hz-20kHz (+/-7.6dB) and sensitivity of 97.0dB average measured 1W/1M - Transformer: 70V transformer with primary taps at 1, 2, 4, and 8W - Volume Backbox (0.8 cu ft): Steel backbox with 1.5 inches thick acoustic lining; driver leads exit through metal clamp; backbox is offset to fit around plenum obstructions - Grille with Sub-plate (2 x 2): Fine-perforation grille provides maximum free-air space for excellent sound transmission while maintaining an unobtrusive appearance in new or existing tile ceilings; white - Mounting Aids: Restraint tabs Specifications: - Driver: 8-inch 20W coaxial - Transformer: 70V - Taps: 1, 2, 4, 8W - Enclosure: 0.8 cu ft - Grille: 2x2 - Driver Sensitivity (Average SPL at 1W/1M): 97.0 dB - Frequency Response: 57Hz-14kHz (+/-6dB); 44Hz-20kHz (+/-7.6dB) - Dispersion (Conical at 2kHz octave, -6dB): 80 degrees - Shipping Weight: 24 lbs

Driver (CT830A) 8 inch 20W coaxial driver with 12 oz magnet, frequency response of 57Hz-14kHz (+/-6dB), 44Hz-20kHz (+/-7.6dB) and sensitivity of 97.0dB average measured 1W/1M

Transformer 70V transformer with primary taps at 1, 2, 4, and 8W

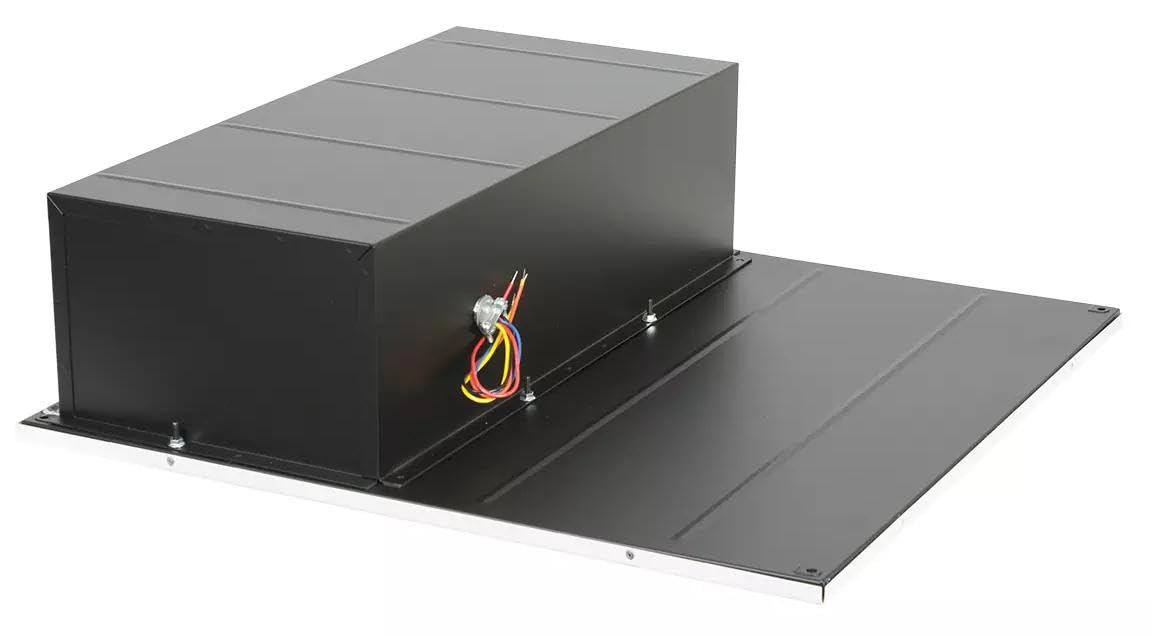

Volume Backbox (0.8 cu ft) Steel backbox with 1.5 inches thick acoustic lining; driver leads exit through metal clamp; backbox is offset to fit around plenum obstructions

Grille with Sub-plate (2 x 2) Fine-perforation grille provides maximum free-air space for excellent sound transmission while maintaining an unobtrusive appearance in new or existing tile ceilings; white

Mounting Aids Restraint tabs
