Aluminum Radiator Compatible with Ford Fairmont Granada LTD Mustang Thunderbird 1975-93 & Mercury Capri Cougar Marquis Monarch 1975-88 - 3 Row High Performance Cooling System with Dual 12" Fans, Shroud & Relay Kit - Perfect for Classic Car Restoration & Hot Rod Upgrades

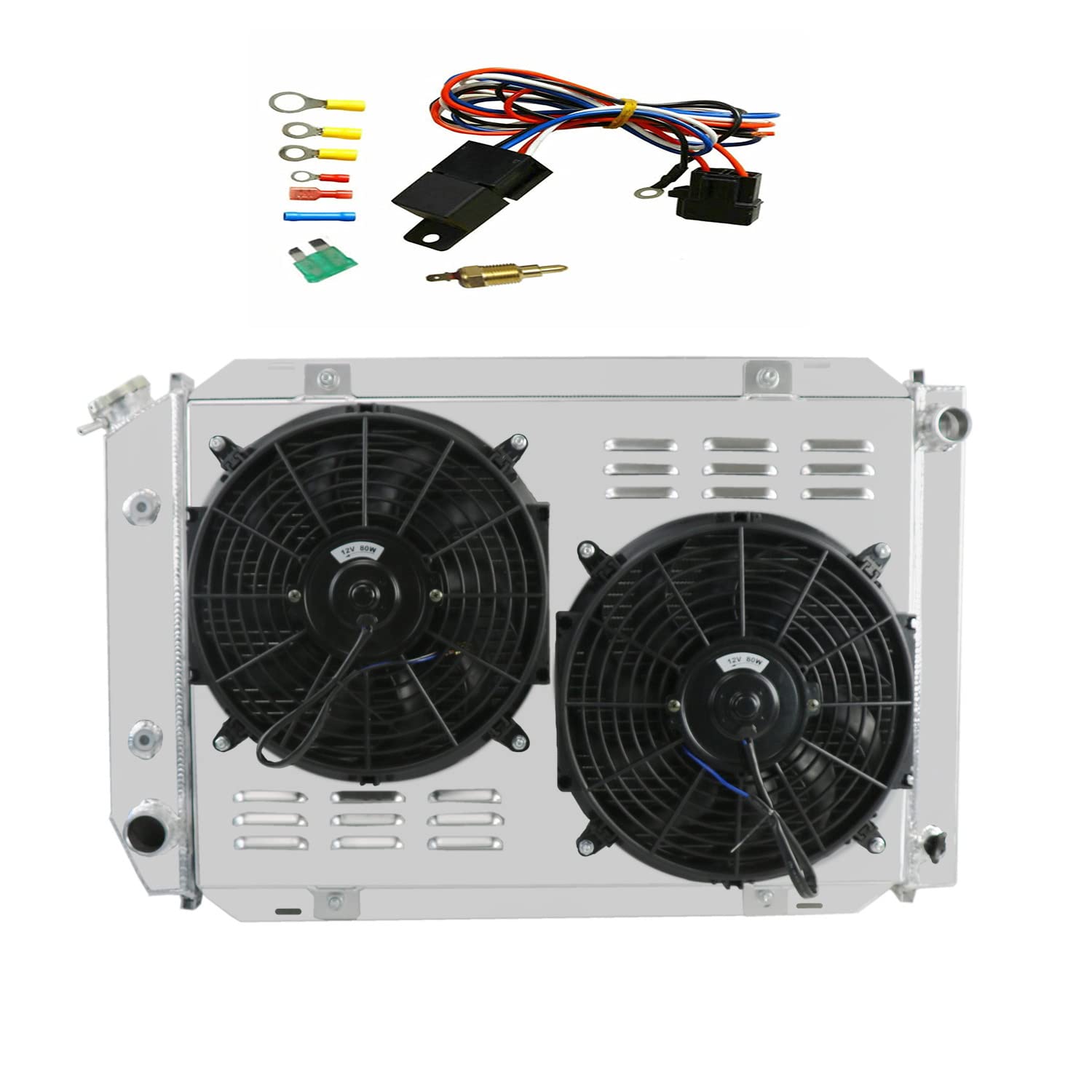

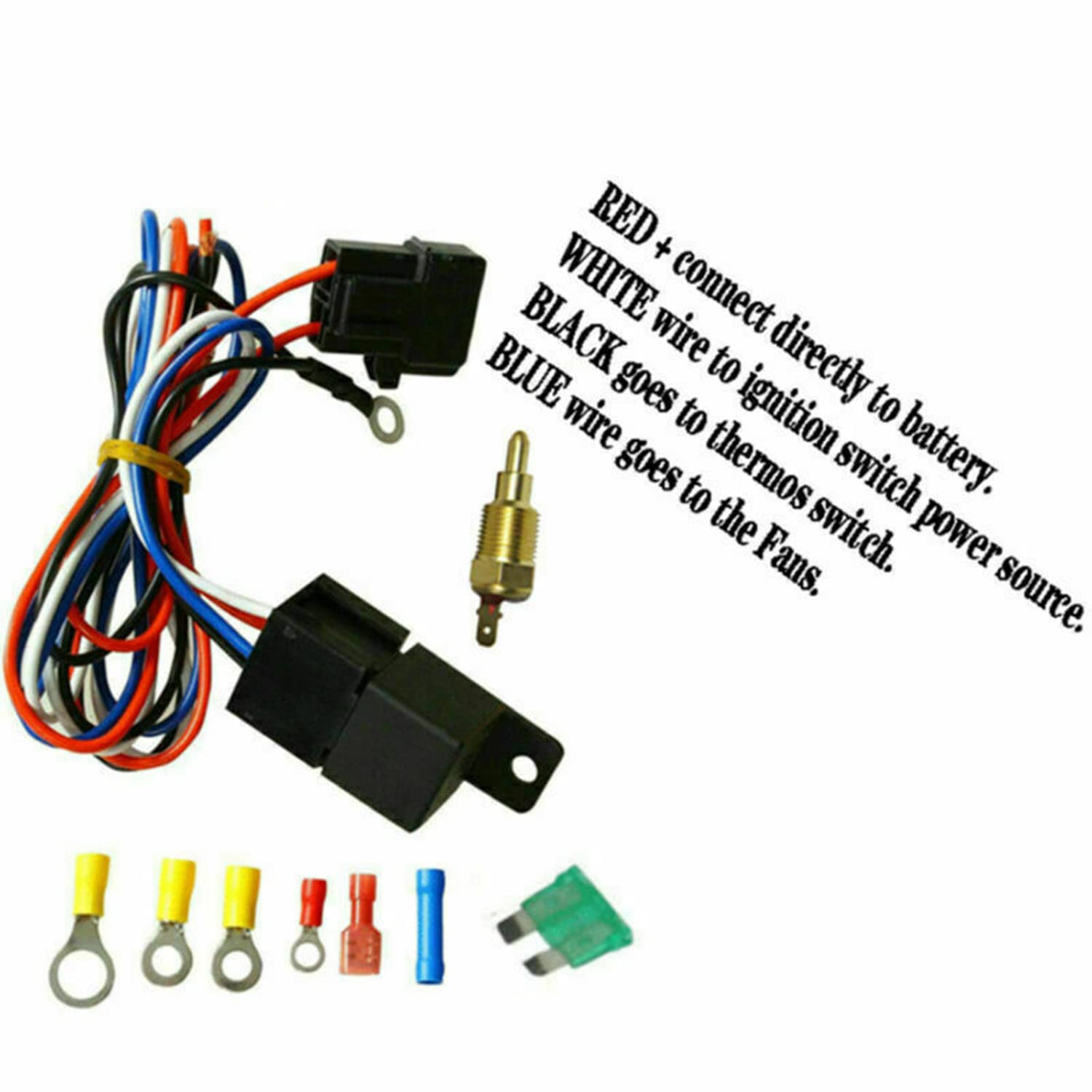

Radiator Specifics: Condition: 100% Brand New Material: Aircraft T-5052 grade aluminum tank & core Row: 3 Row Core Size: 16.5'' H x 24.4'' W x 1.73'' Thickness Overall Size: 19.1''H x 29.5''W x 5.1'' T Inlet Diameter: 1.26 inch Passenger Side Outlet Diameter: 1.5 inch Driver Side Transmission Oil Cooler: 38x200x1/4-18NPT(T) CNC Precision Machined Radiator OEM Style Brass Petcock Drain Fan Spec: Maximum Fan CFM: 2300±200 FAN Diameter: 12.05" X 12.05" X 2.5" Number of Blades: 10 blades (Plastic) Amp Draw: 12.70 amps Maximum Fan RPM: 2,250 rpm Thermostat Relay Kit Instructions: Activates by grounding electric fans at preset temperature. 180'F/165'F turn on/off temperature. RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. This Radiator Compatible with: 1980-1983 Ford Fairmont (2.3L L4) (3.3L L6) (4.2L V8 1981-1982 Ford Granada (2.3L L4) (3.3L L6) (3.8L V6) (4.2L V8) 1980-1993 Ford Mustang (2.3L L4) (3.3L L6) (3.8L V6) (4.2L 5.0L V8) 1980-1988 Ford Thunderbird (2.3L L4) (3.3L L6) (3.8L V6) (4.2L 5.0L V8) 1980-1987 Lincoln Continental (2.4L L6) (3.8L V6) (5.0L 5.8L V8) 1984-1992 Lincoln Mark VII (2.4L L6) (5.0L V8) 1980-1988 Mercury Cougar (2.3L L4) (3.3L L6) (3.8L V6) (4.2L 5.0L V8) 1984-1986 Mercury Marquis (2.3L L4) (3.8L V6) 1980-1983 Mercury Zephyr (2.3L L4) (3.3L L6) (4.2L V8) OM/OEM Part Number: 138 CU138 CC138 DPI138 SBR138 PLS check more detailed vehicle information by AmazonConfirmedFit to confirm this radiator fit your vehicle before you order. Shroud+Fans The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.

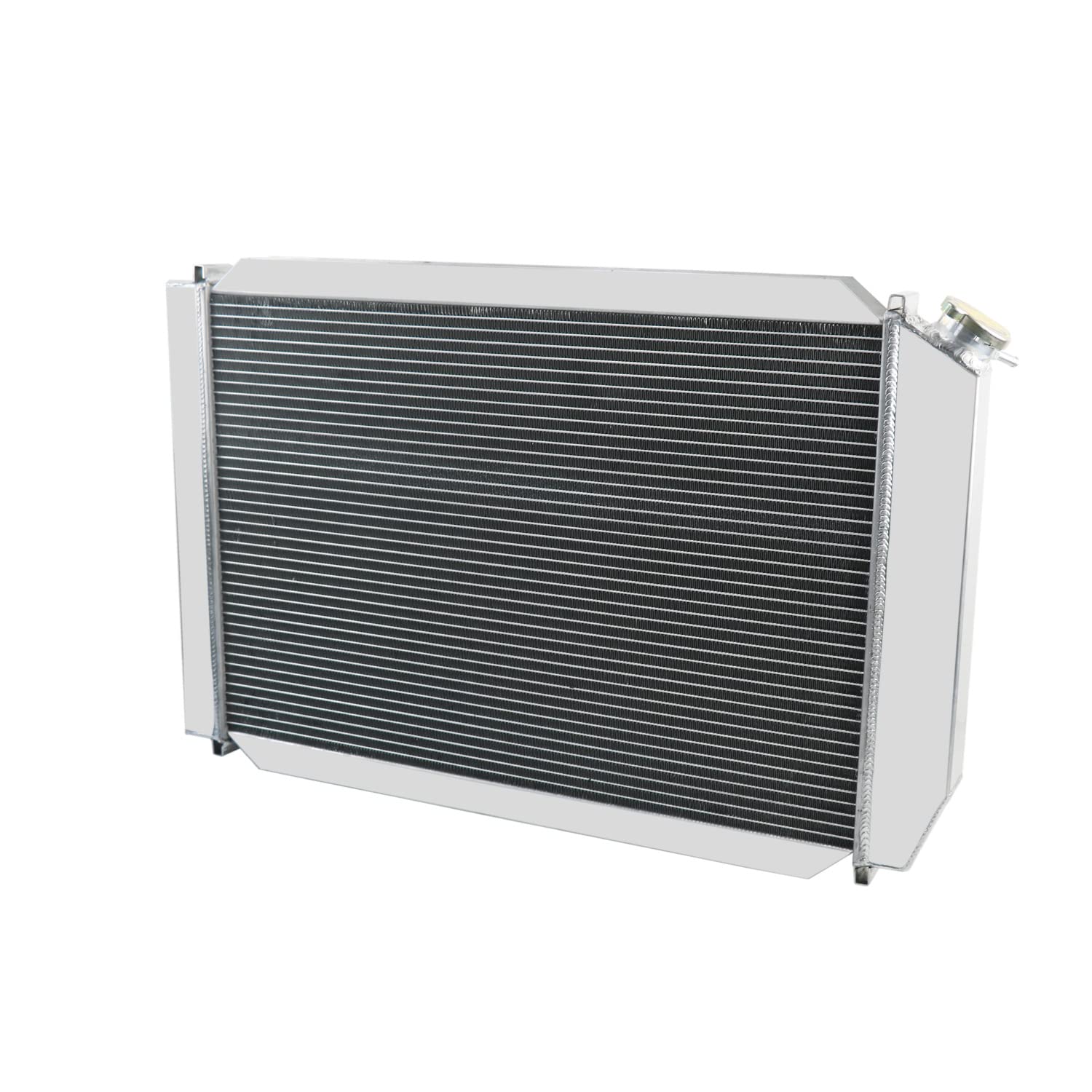

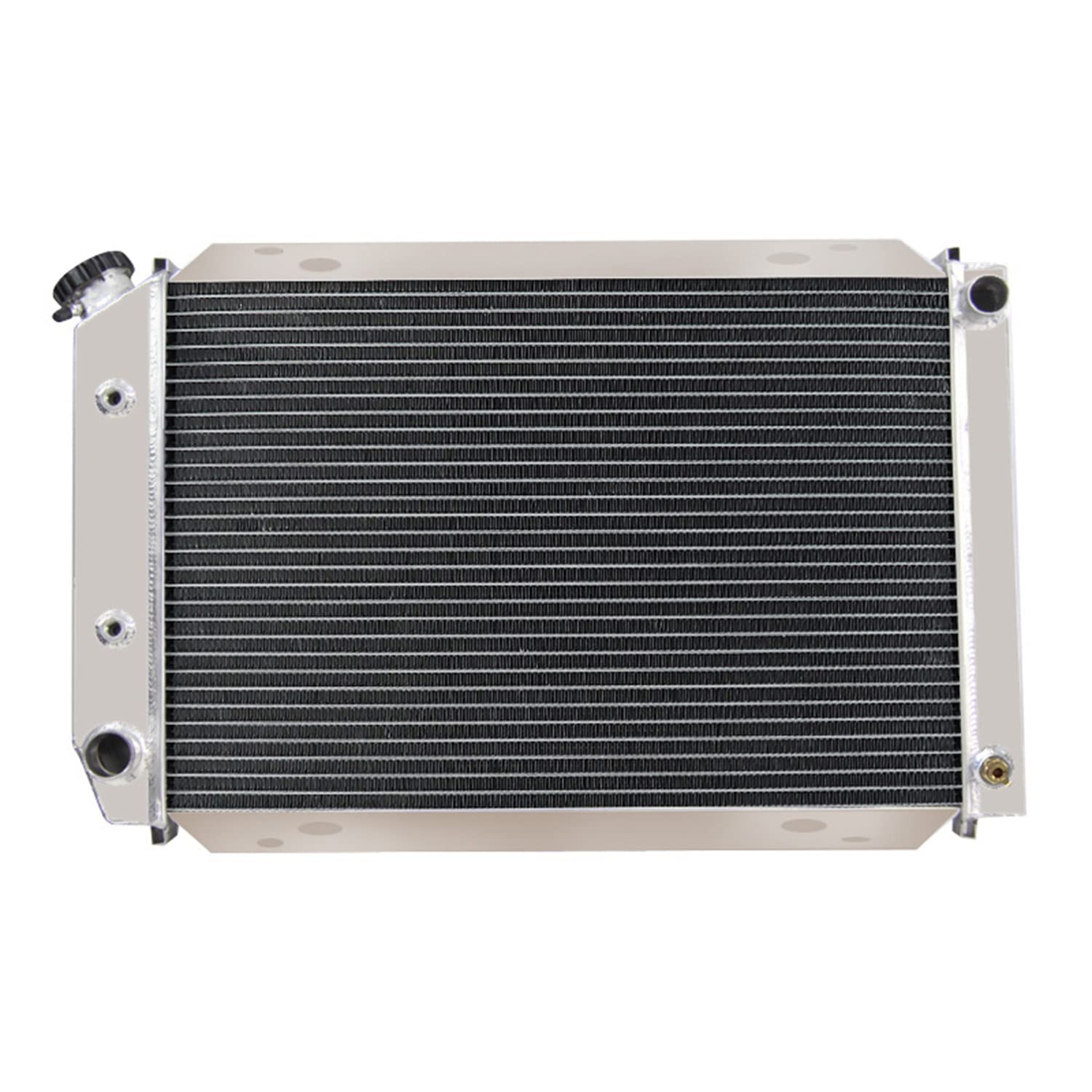

Core Size 16.5'' H x 24.4'' W x 1.73'' Thickness, Overall Size 19.1''H x 29.5''W x 5.1'' T

Inlet Diameter 1.26 inch Passenger Side, Outlet Diameter 1.5 inch Driver Side

Transmission Oil Cooler 38x200x1/4-18NPT(T)

Made of High Quality Full T-5052 Aircraft Aluminum Construction

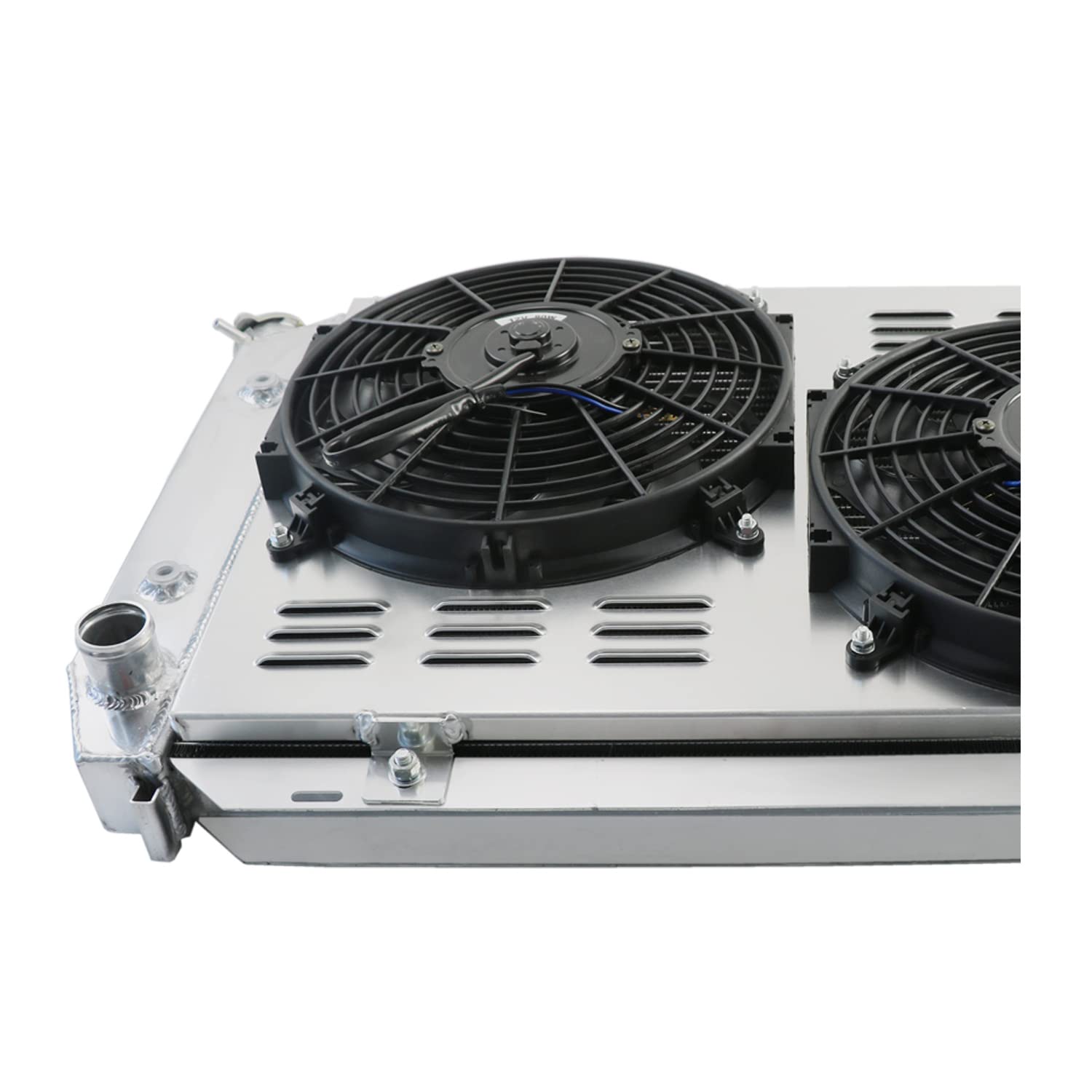

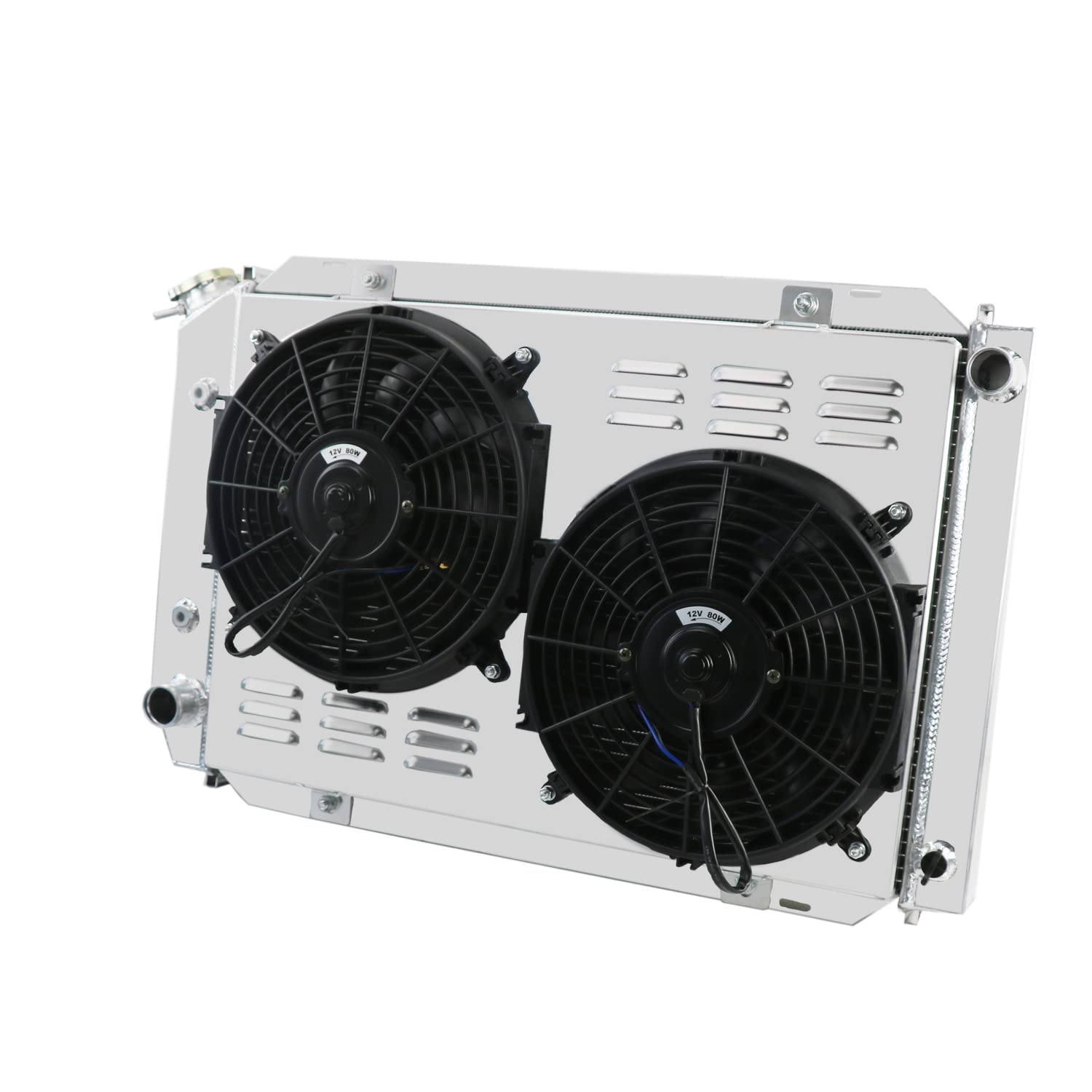

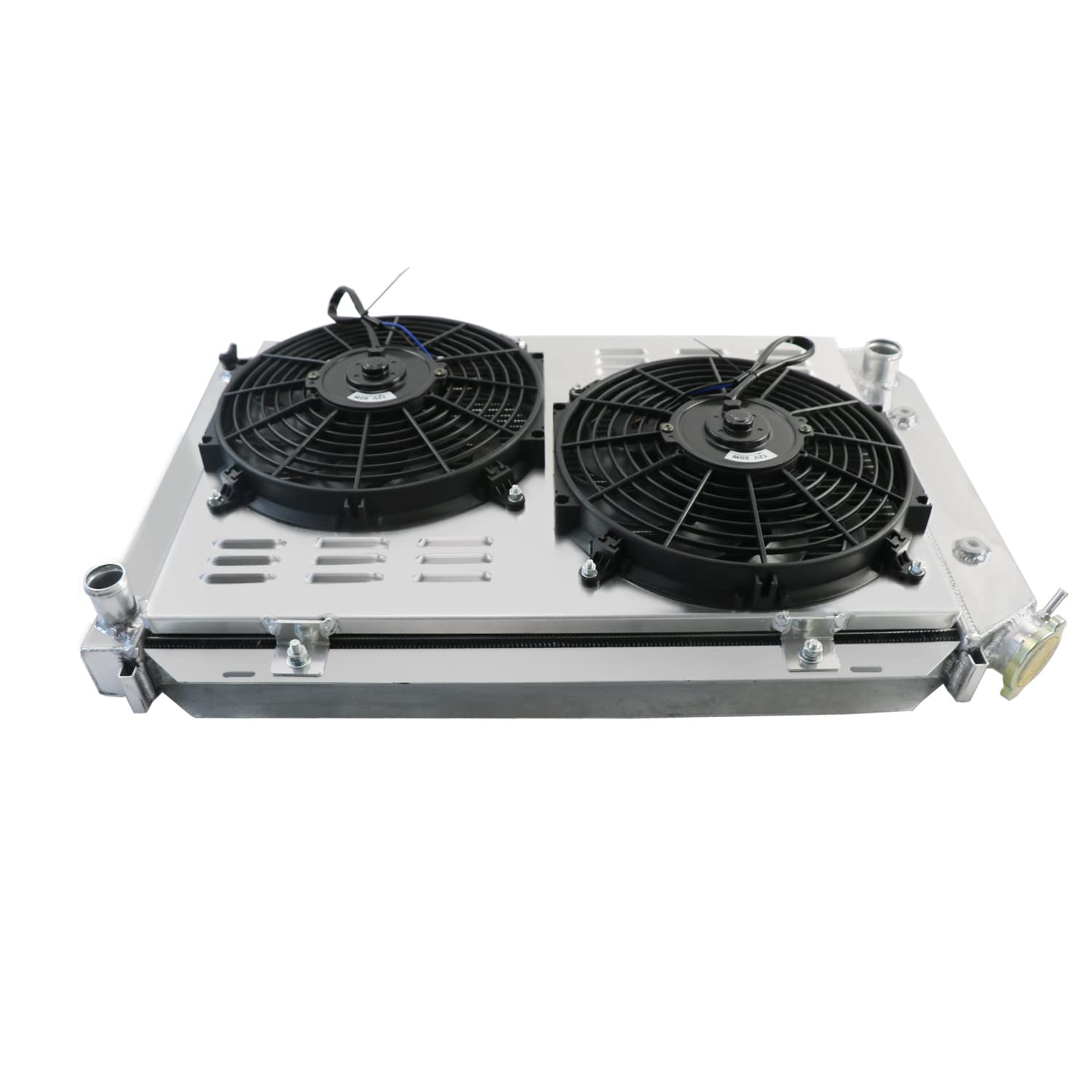

Shroud fan provides protection and extra heat heat dissipation for the radiator
