4 Row Aluminum Radiator Shroud with Cooling Fans & Relay Kit - Compatible with 1963-1966 Chevy C10 C20 C30 K10 K20 Pickup/Suburban & 1961-1966 Pontiac Catalina/Bonneville/Grand Prix/Star Chief - Heavy Duty Cooling Upgrade for Hot Rods, Classic Trucks & Restoration Projects

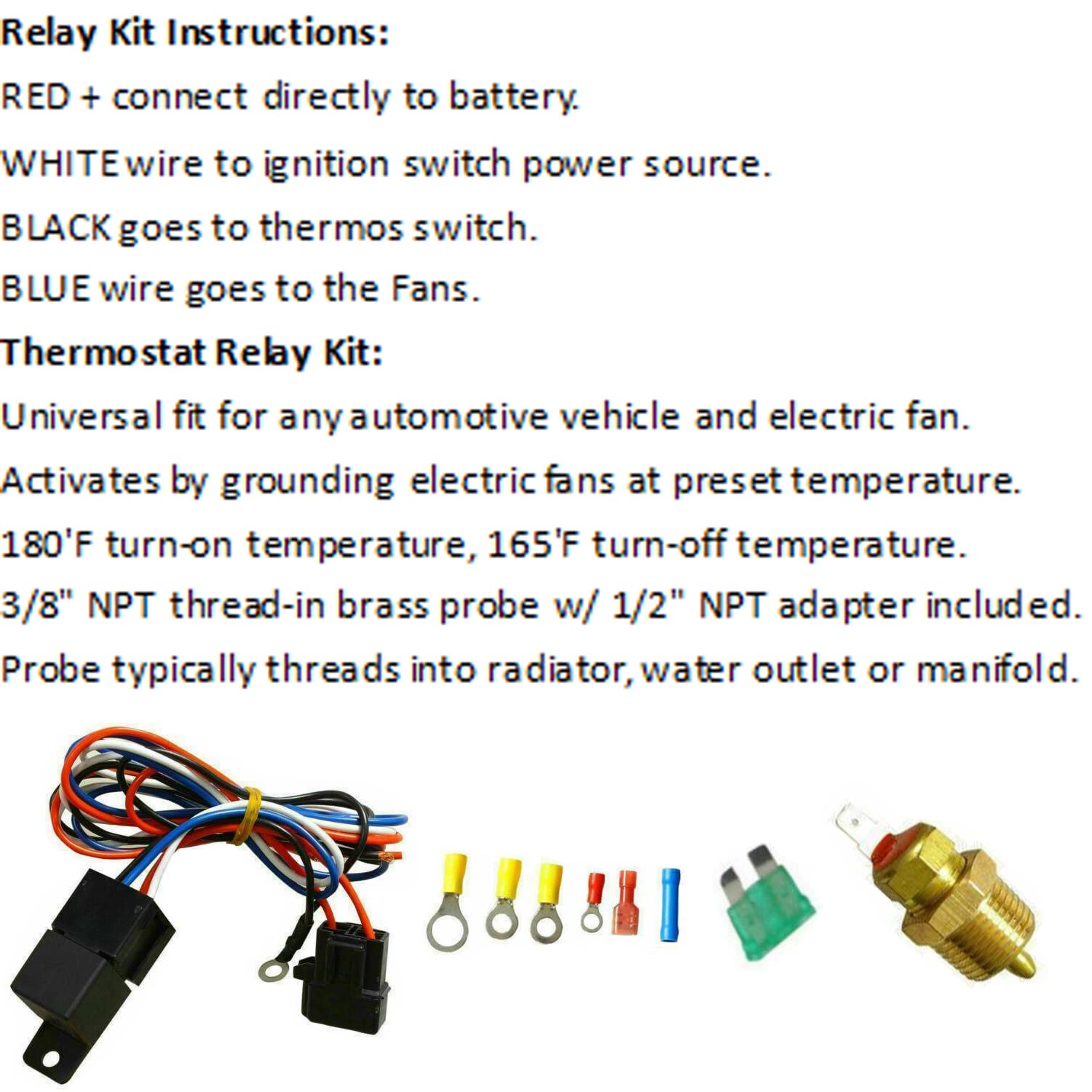

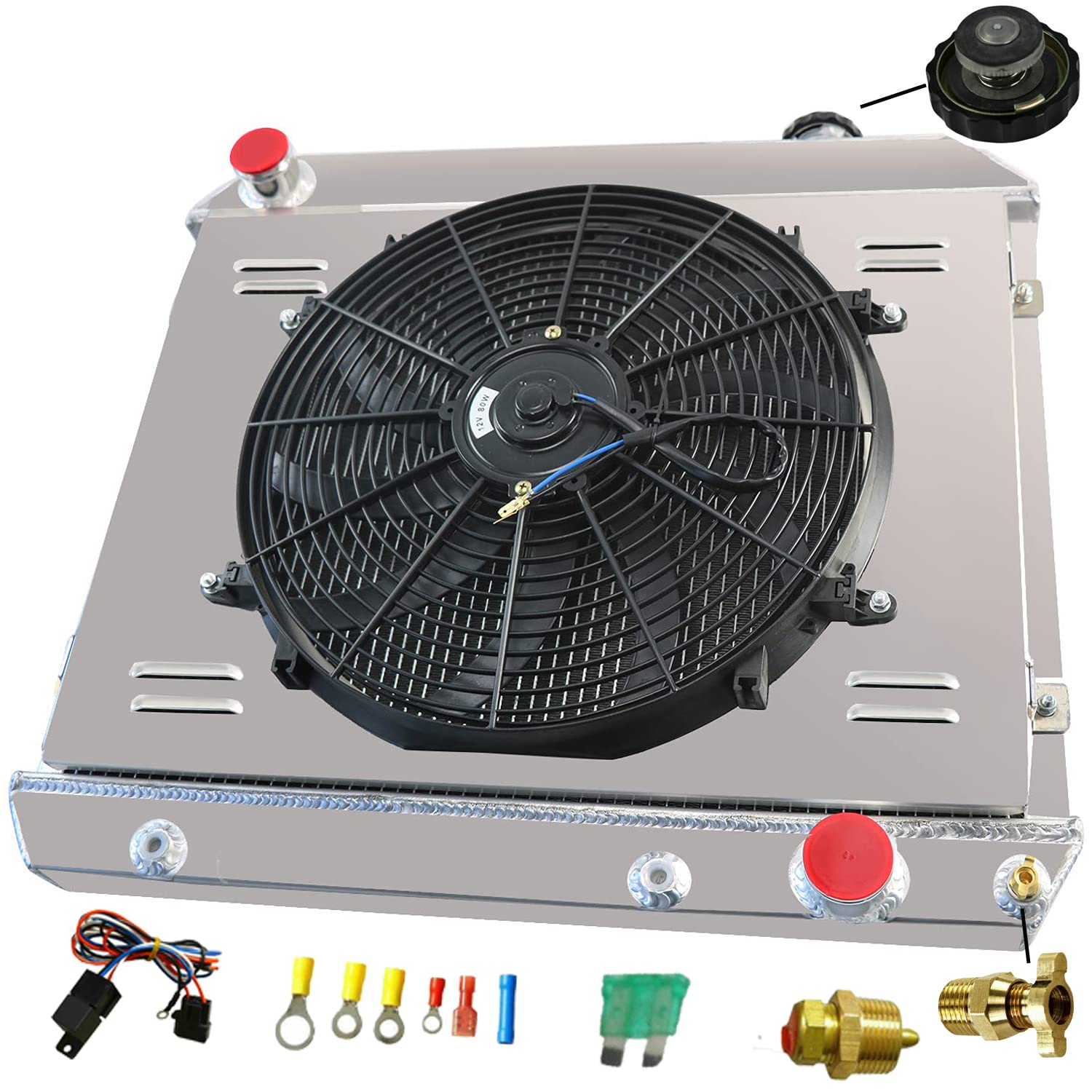

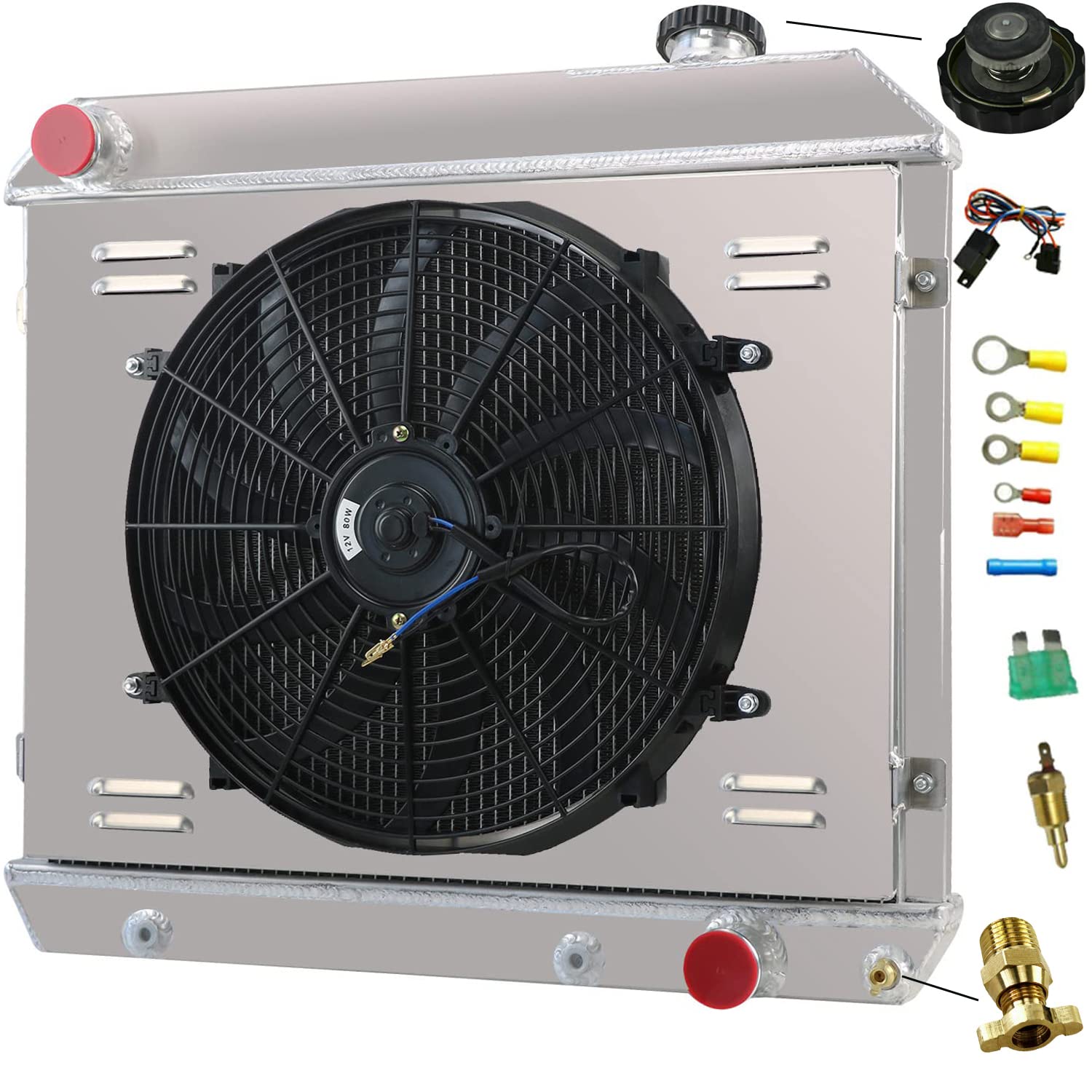

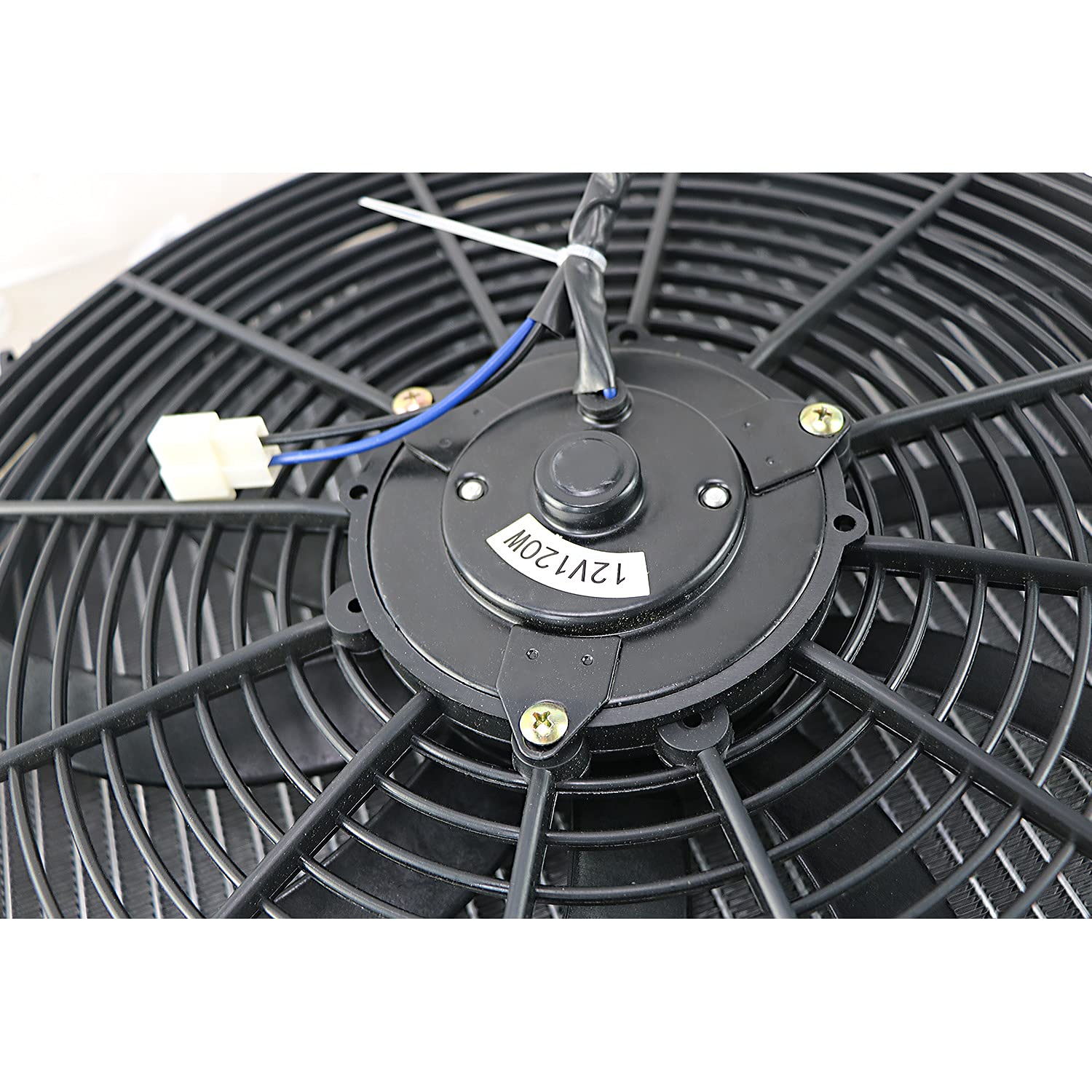

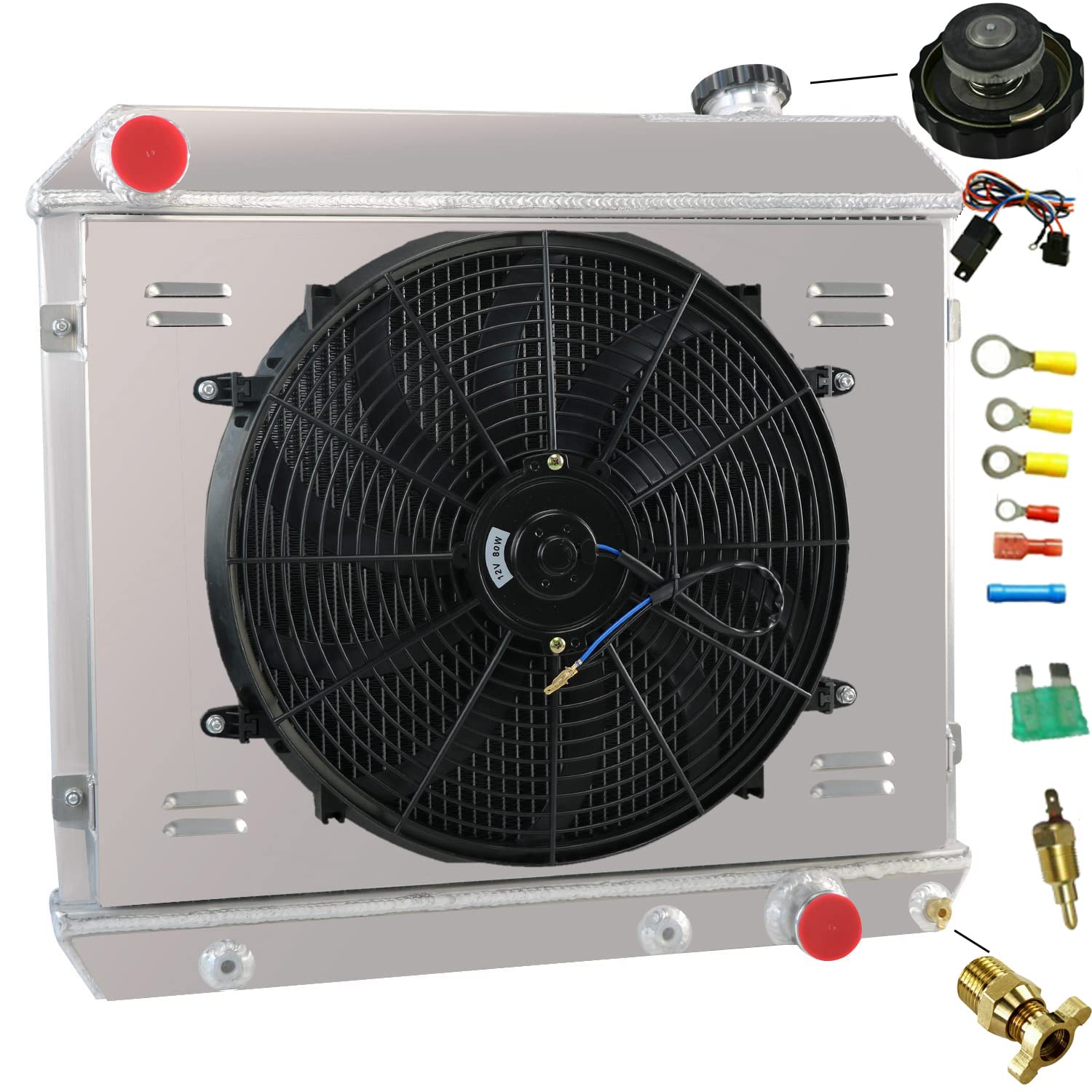

Fitment: For Chevy Truck Pickup Suburban 1963-1966 For Chevy Truck C10 C20 C30 1963-1966 For Chevy Truck C/k Series/pontiac Pickup 1961-1966 For Pontiac Bonneville 1961-1966 For Chevy C10 Pickup Truck V8 For Gm/c/k Truck 1961-1966 For Pontiac Grand Prix 1962-1964 For Gmc K10 K20 1963-1966 This Listing Is Including: 1 X 4-Row Aluminum Radiator (Includes Radiator Cap) 1 X Aluminum Shroud 1 X 16" Fans (Includes mounting kits) 1 X Thermostat Relay Kit FAN SPEC: Maximum Fan CFM: 2000±200 Fan Diameter (in): 16.050 inches Thickness (in): 2.790 inches Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Radiator Details: 4 Row Core Radiators Material: All Aluminum ; Aircraft 5057 grade aluminum Fitment Type: Direct Replacement Crafts: 100% Tig welded Delivery: Local Delivery Placement on Vehicle: Engine Compartment Transmission: Automatic and Manual Mount System: Saddle Mount Features: 100% Leak Tested,Downflow Radiator Mounting Style: Bolt-On OE/OEM Part Number: RAD284,SPTCU284,AE284 EC284 RC284 RA284 RK284,8010284,CU284,433284,SPTCU284,284 284,SBR284,CC284,CU284,DPI284,MC284,899284,B284 Description: PERFORMANCE : up to 30%-45% cooling HIGH COOLANT CAPACITY ：much higher capacity for coolant than stock ones OE STANDARDS : exceptional OE standards for precise fit ,Direct Replacement HIGH QUALITY, STRICT INSPECTION ：All our products are 100% fully tested to ensure top quality Full set in box and 100% brand new About Us: If you have any questions, please feel free to contact us, we will solve it for you

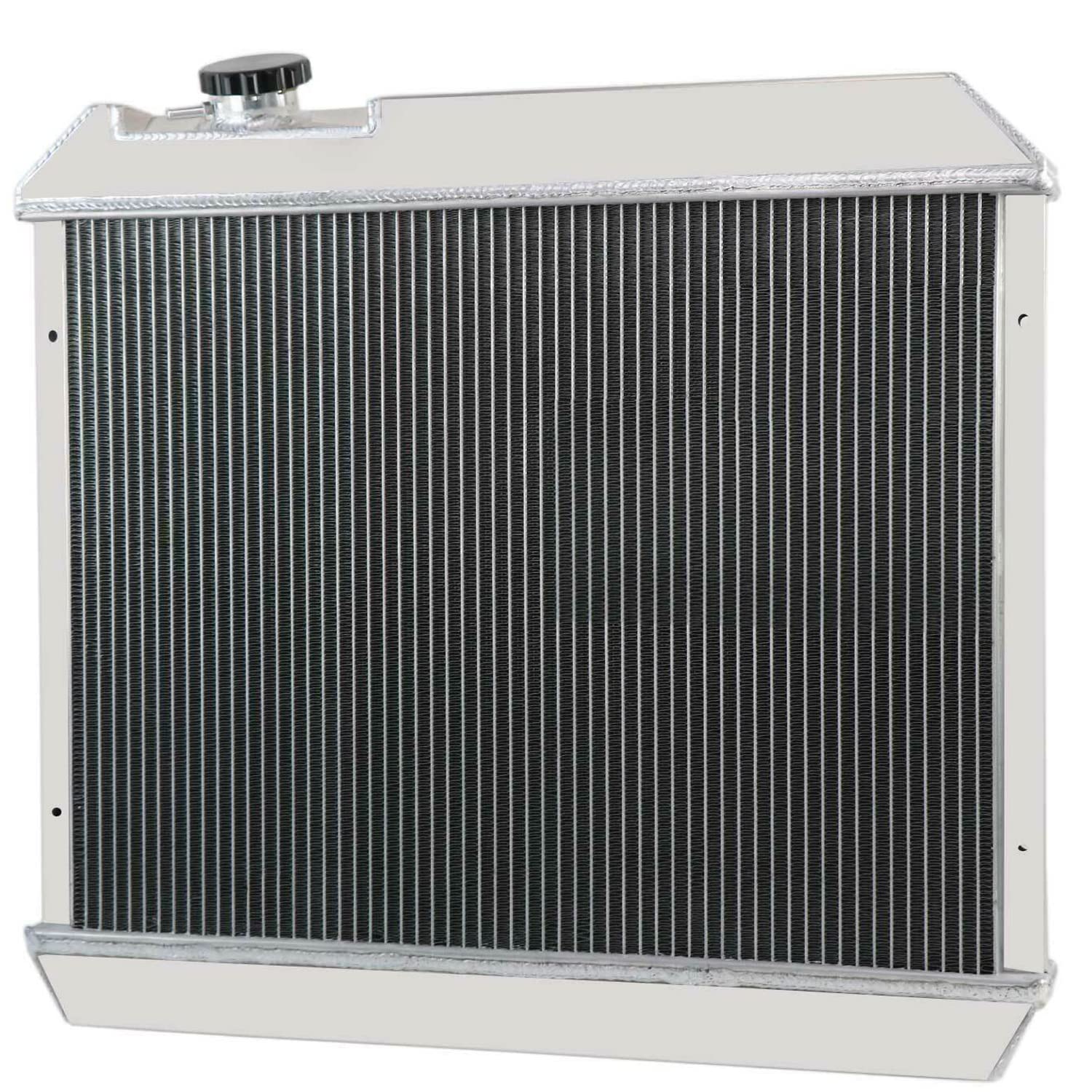

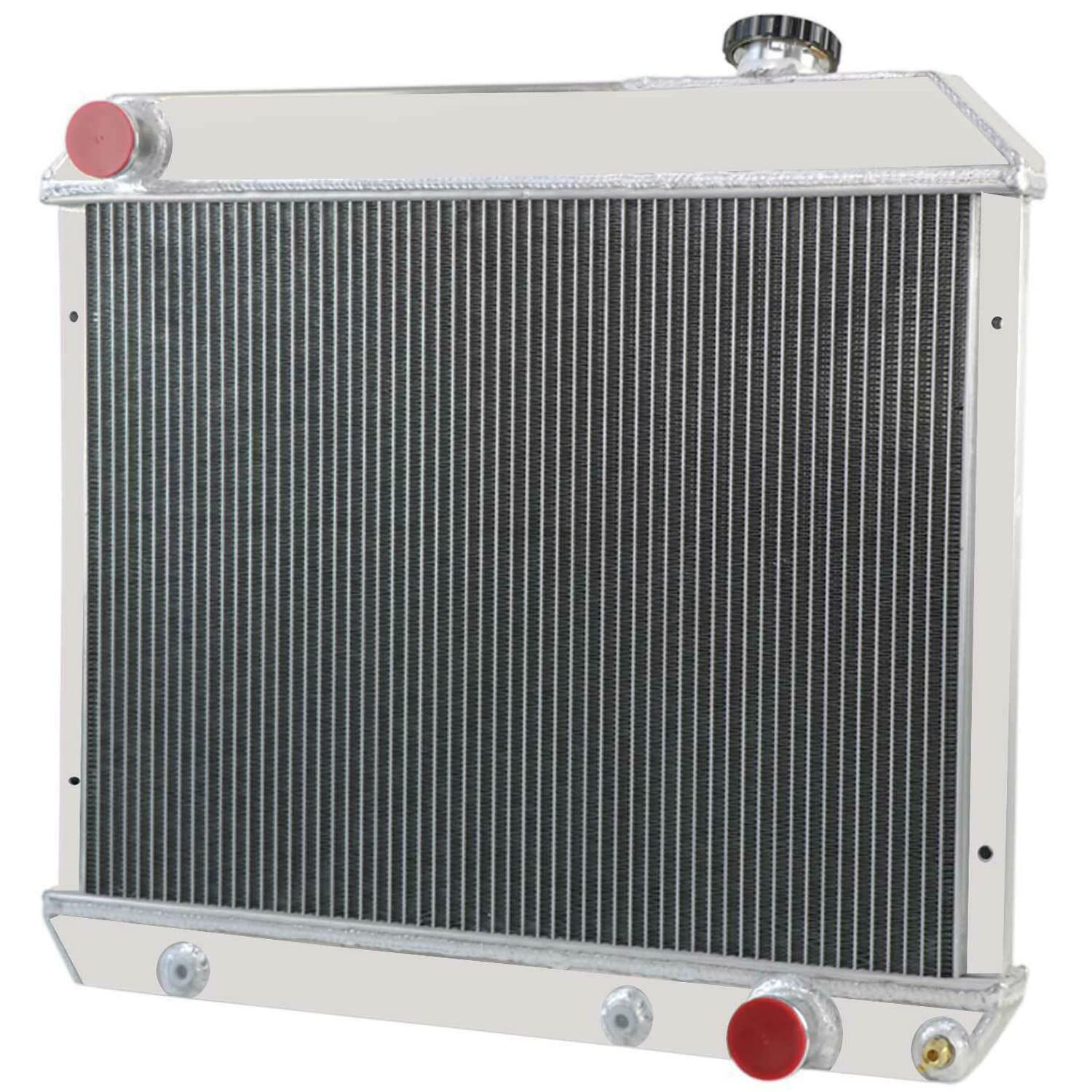

Core Size 17.4" H x 22.76" W x 2.44" T ; Overall Size 23.54" H x 25.23" W x 4.71" T ; Upper inlet 1.77" located on driver side ; Lower outlet 1.77" located on passenger side

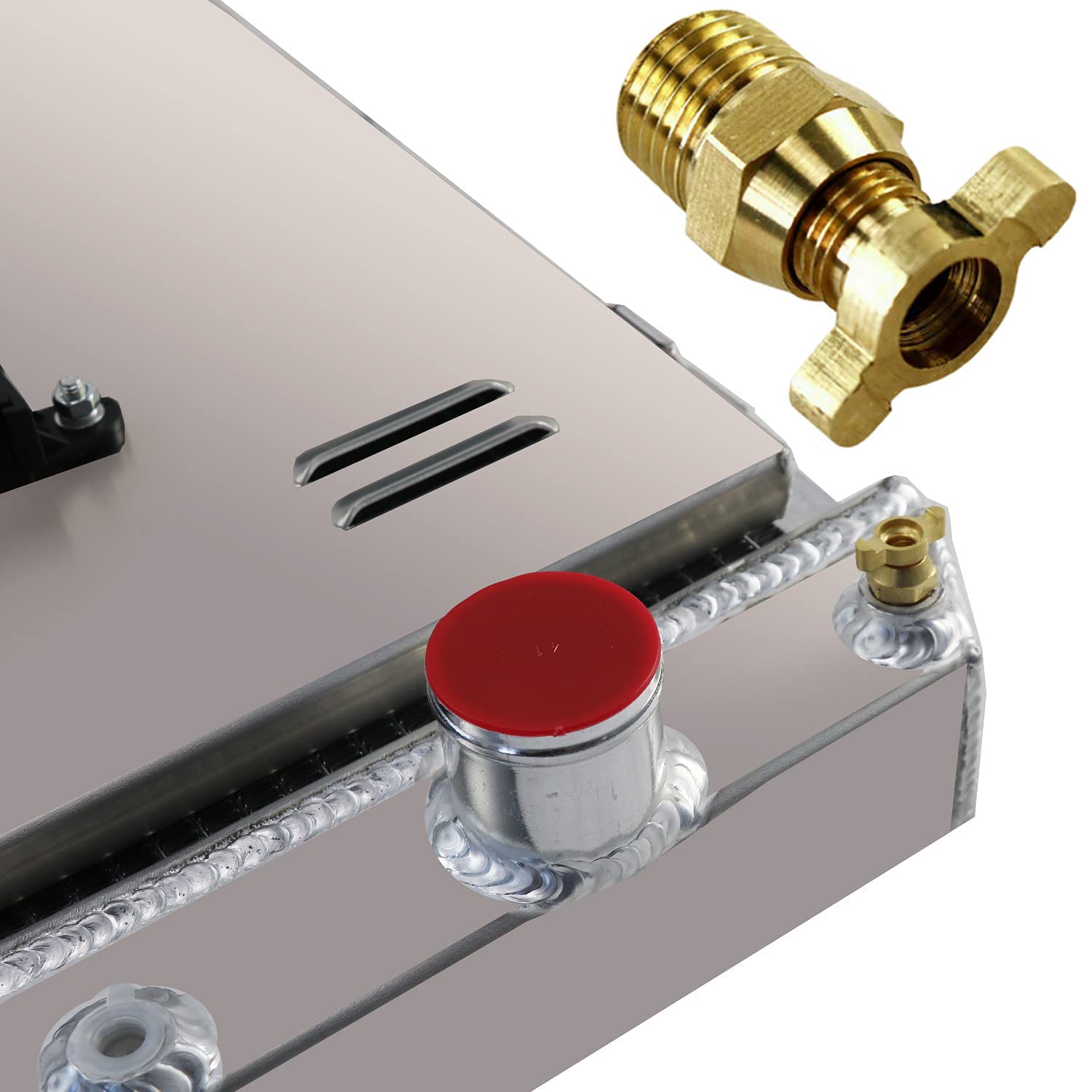

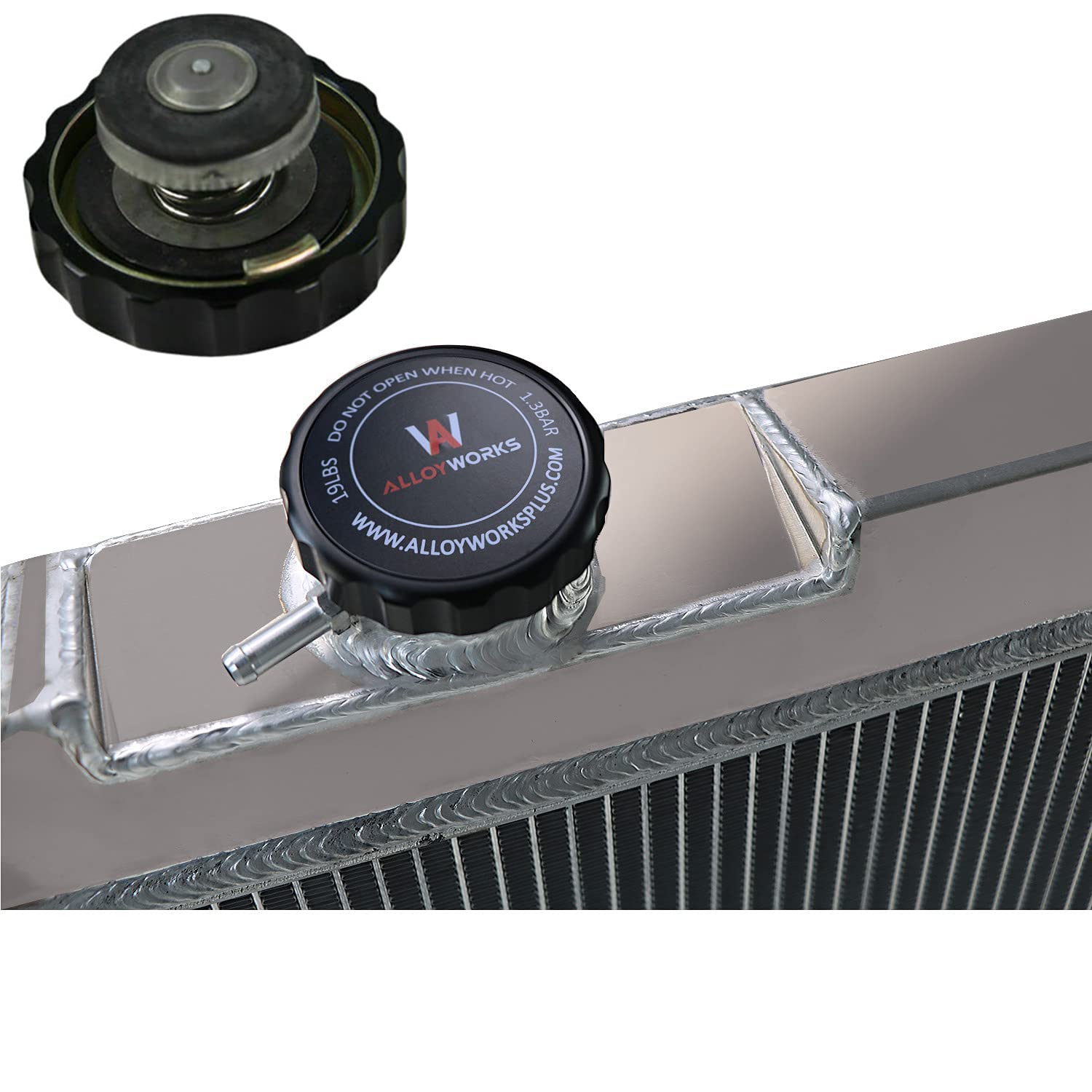

Trans cooler Build-In; Trans Oil Cooler ￠22*300*G1/4(Z) ; Includes CNC machined filler neck and cap,OEM Style Brass Petcock Drain.

100% aluminum construction provides greater heat and pressure tolerance, better heat dissipation

All-aluminum design with durable TIG-welded construction (T-6061 aircraft aluminum)

12 Months warranty ; If you have any questions, please feel free to contact us, we will solve it for you
