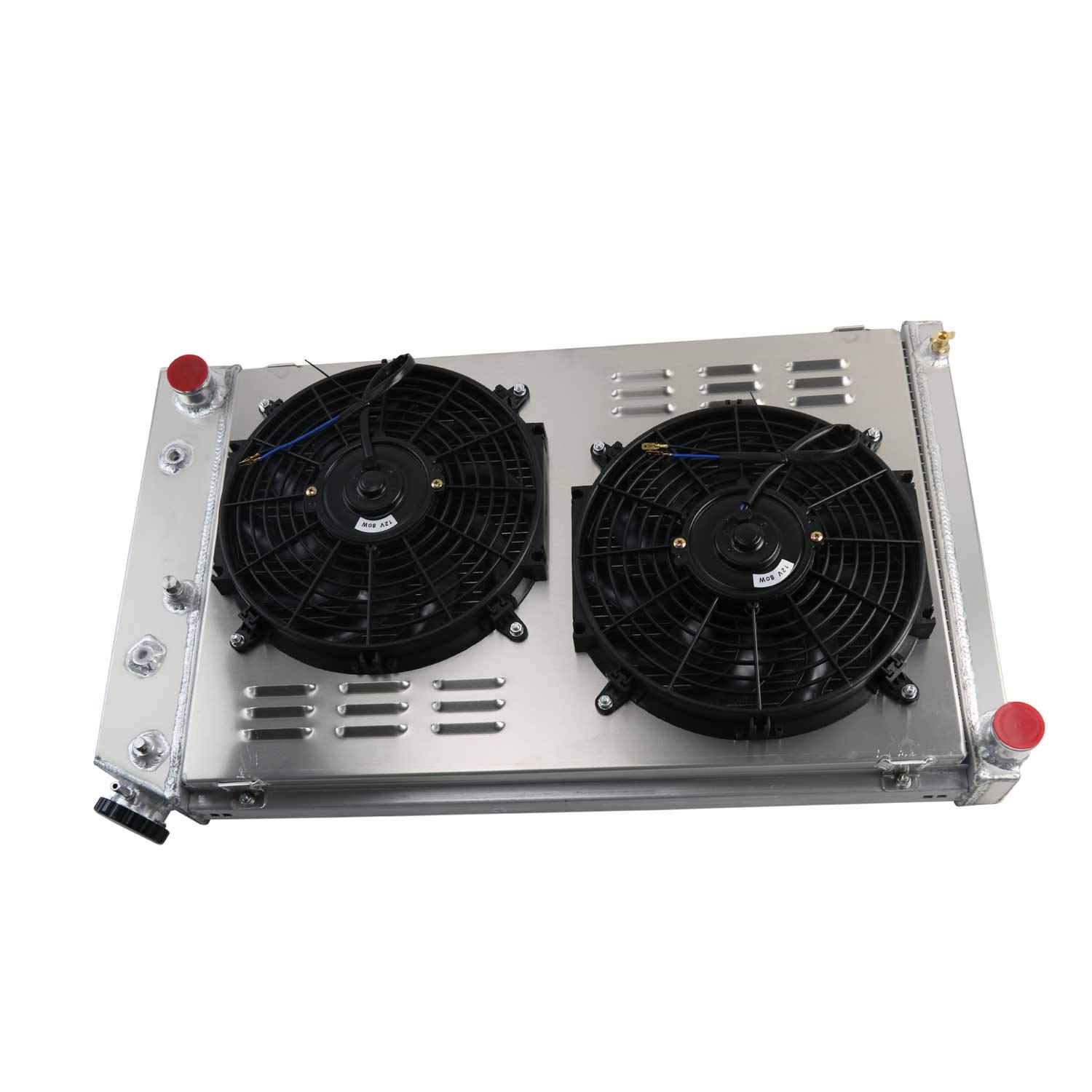

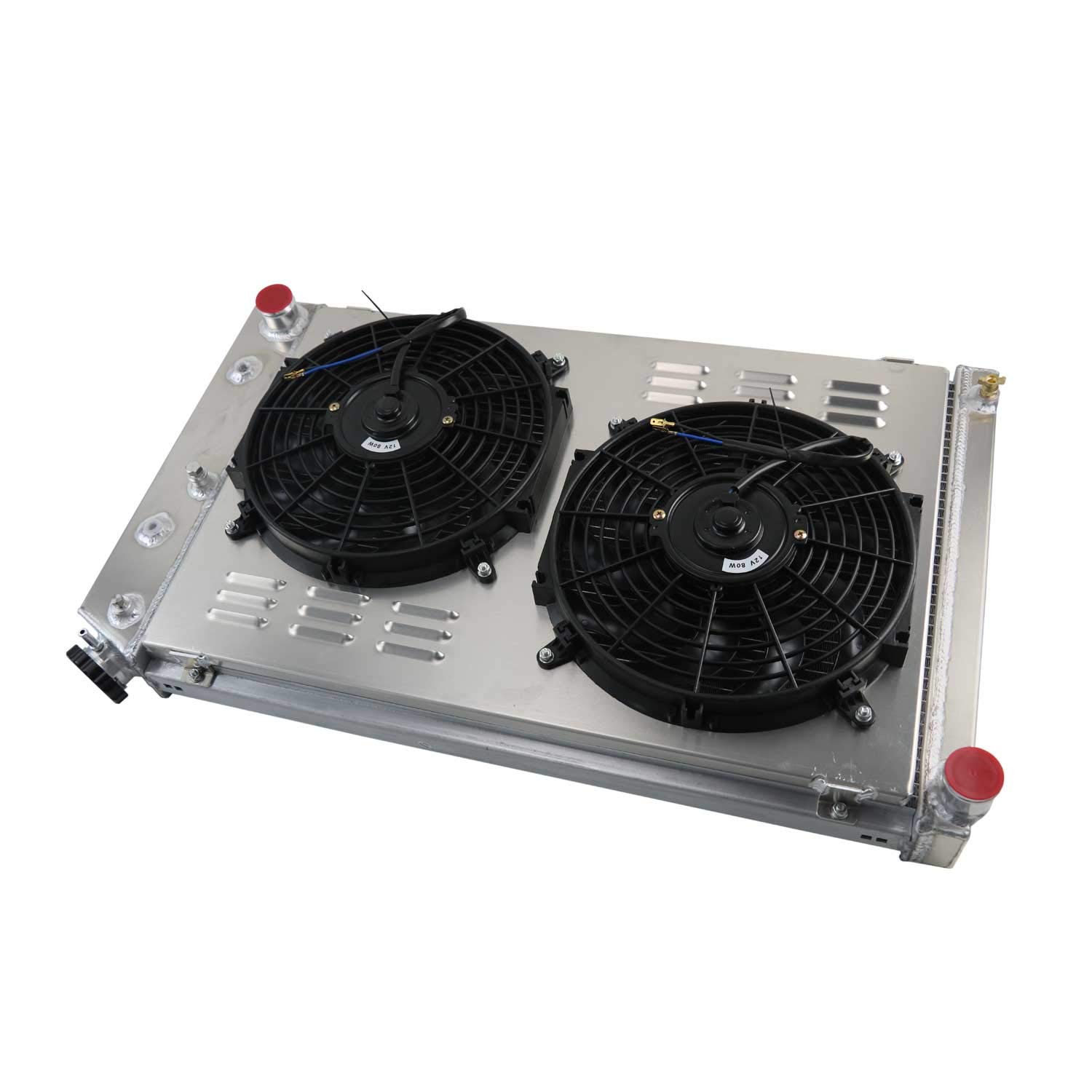

CoolingCare 4 Row Aluminum Radiator with Dual 12" Electric Fans & Shroud - Compatible with Chevy Monte Carlo 1978-1987, El Camino 1980-1987, Nova 1970-1981 (26.3" Core Width) - High Performance Cooling for Classic Car Restoration & Hot Rod Upgrades

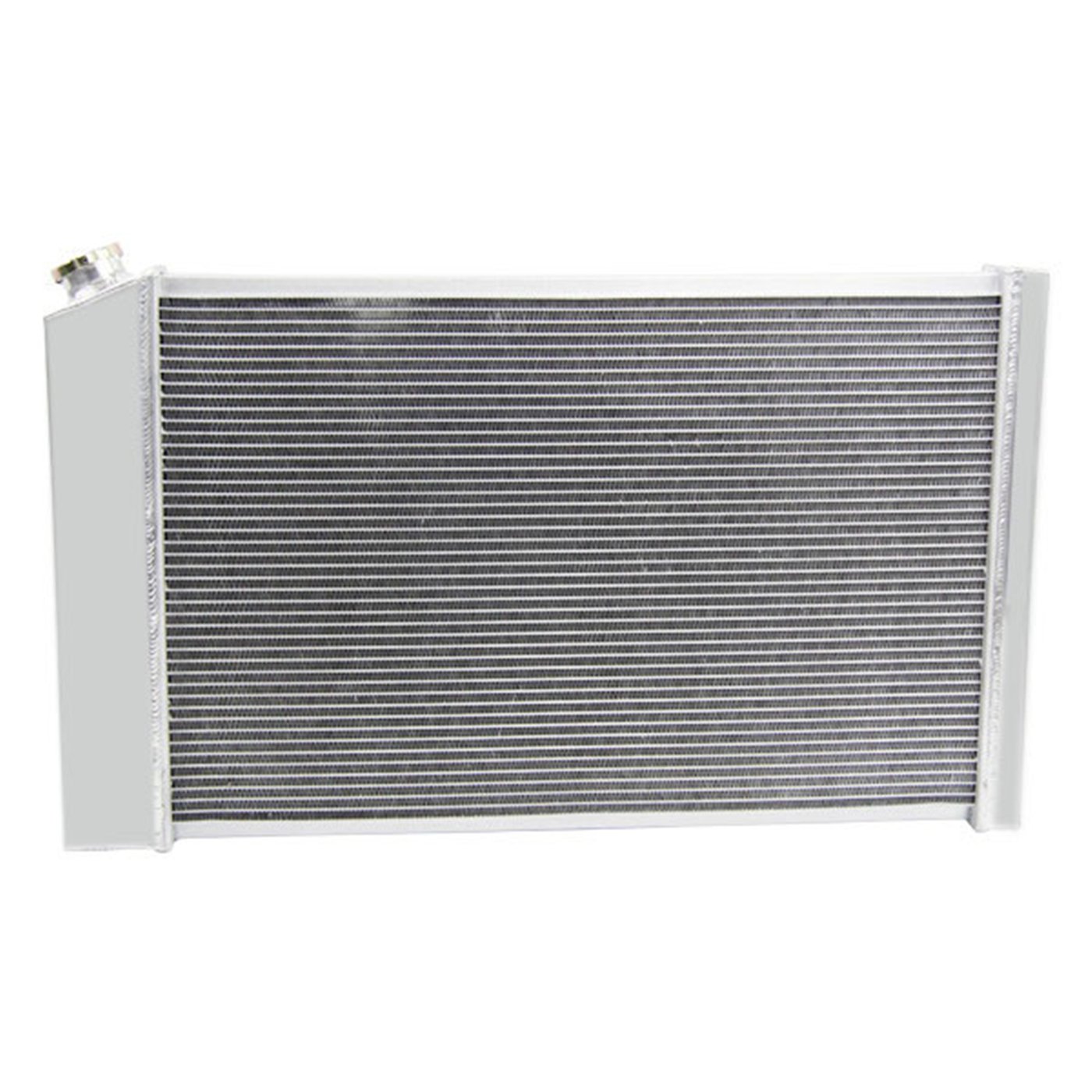

CoolingCare Radiator is designed and specifically engineered to maximize cooling efficiency by up to 30%, boost engine functions and protect your car from overheating. The radiator features a lightweight core, and holds up to more coolant. The CoolingCare radiator showed a 20degF drop in outlet temp compared to the OEM. CoolingCare fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place. With excellent operating temperature management, allowable levels of engine temperature are stabilized. ✦Radiator Details: Core Size :17" H x 26-1/4" W Overall Size :18-1/4" H x 31-5/8" W Upper Inlet: 1-1/2" located on the Driver side Lower Outlet: 1-1/2" located on the Passenger side Trans Cooler Details: 1/2" 20 STRAIGHT THREAD G1/4 Mount Type: Saddle Mounting Specs: Vert - 13 1/4 Horizontal - 24 3/8 ✦Fan Specification: OE Fitment or Replacement, Push or Pull Type Maximum Fan CFM: 1730 cfm Fan Diameter (in): 10.050” Thickness (in): 2.500” Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation

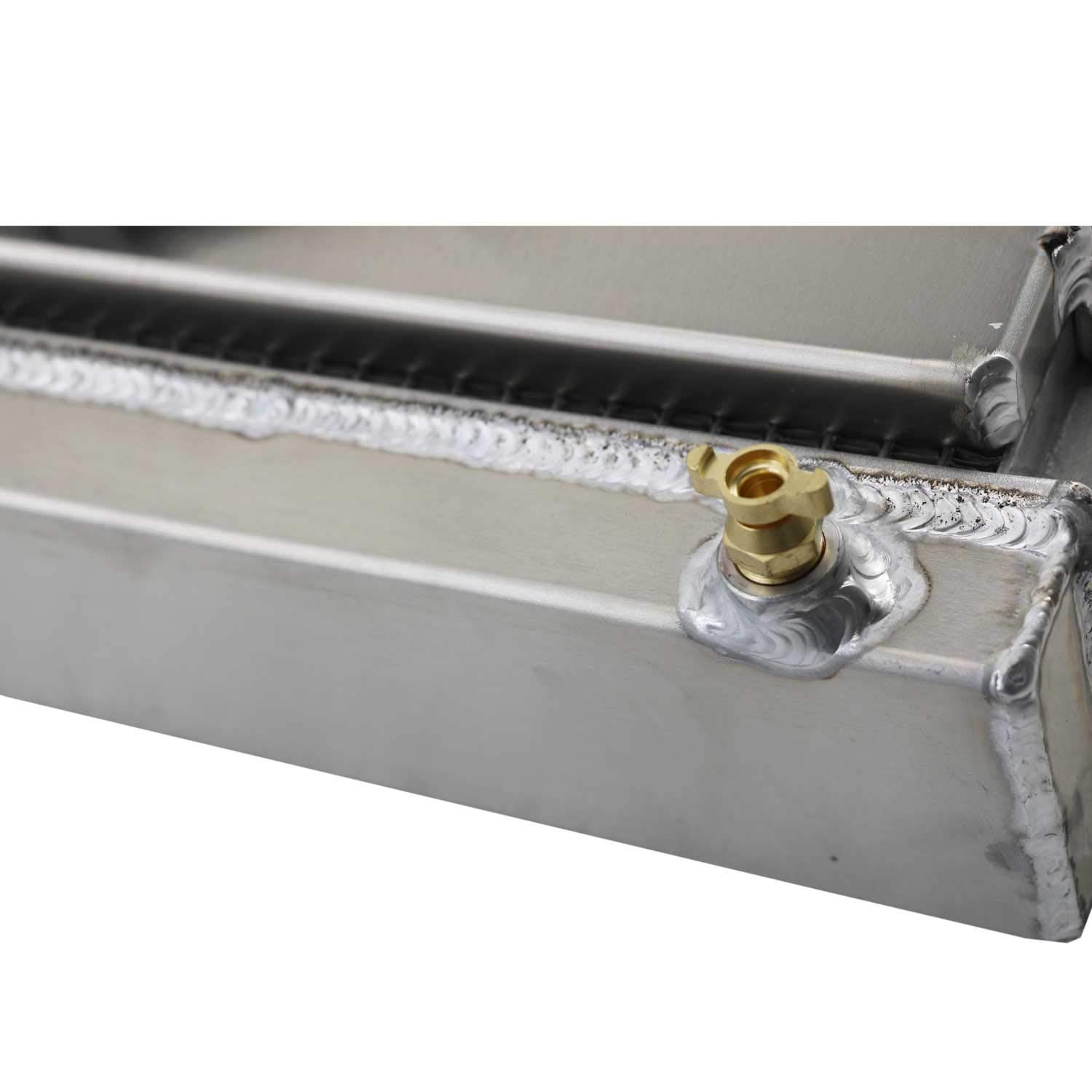

Leading-edge welding craftsmanship, exclusive tube design that dramatically increases 35-45% cooling

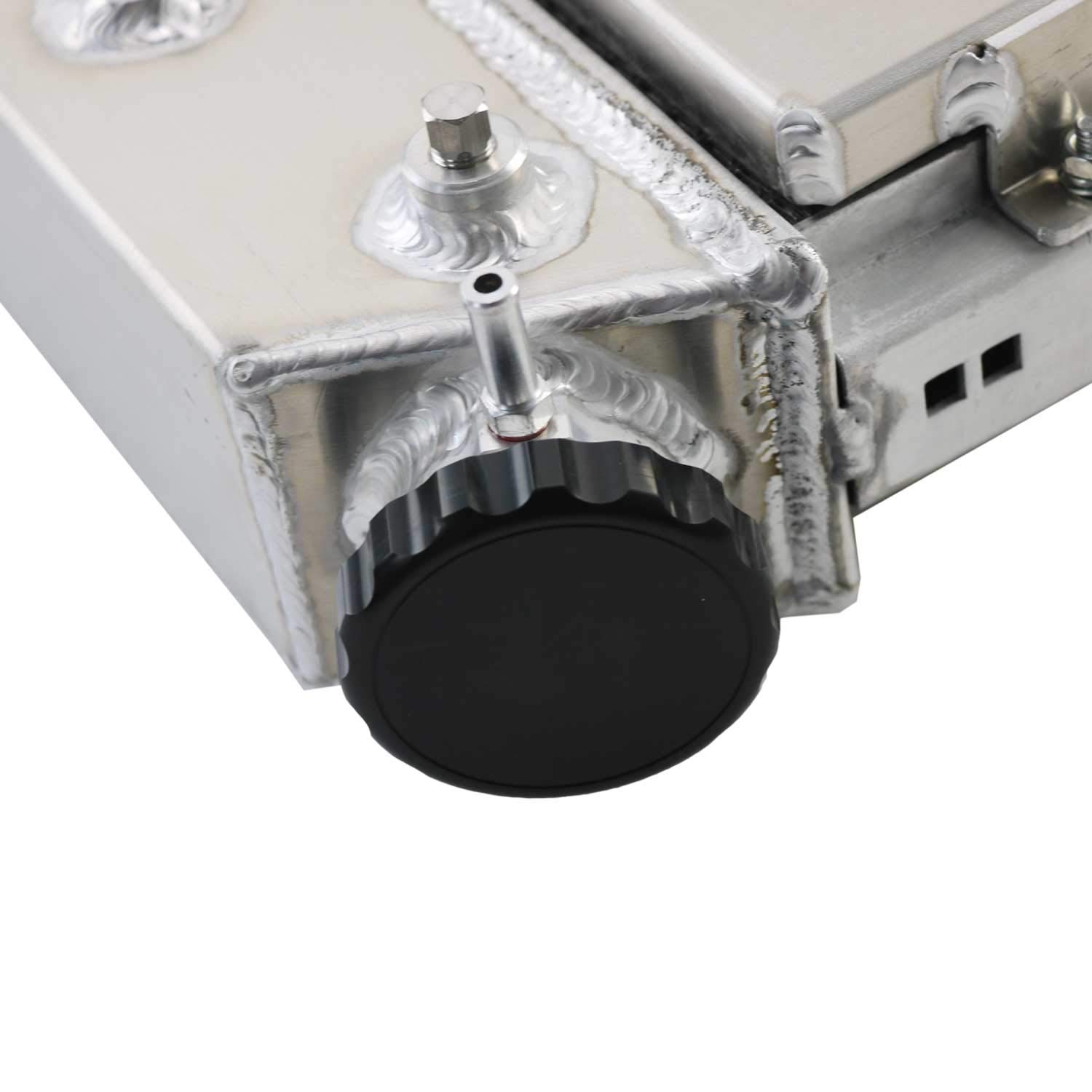

All-aluminum construction includes rad cap and magnetic drain plug

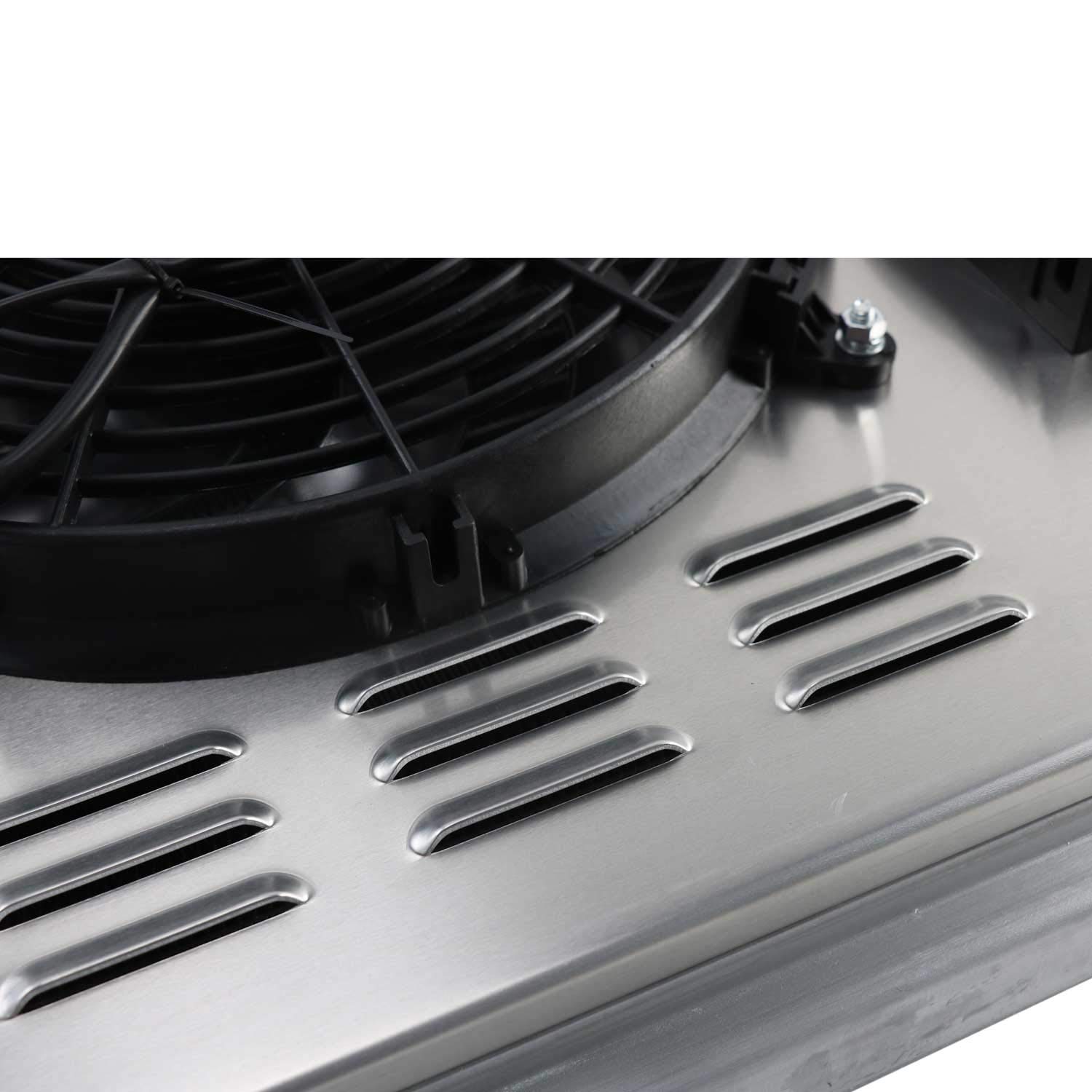

Unique cooling shroud, designed with louver to direct airflow, improving heat rejection

Build-in trans oil cooler

Gentle hint Your item will be shipped out within 1 day from our USA warehouse(CA, KY or NJ), faster fulfillment by us and 3-6 days will be delivered
