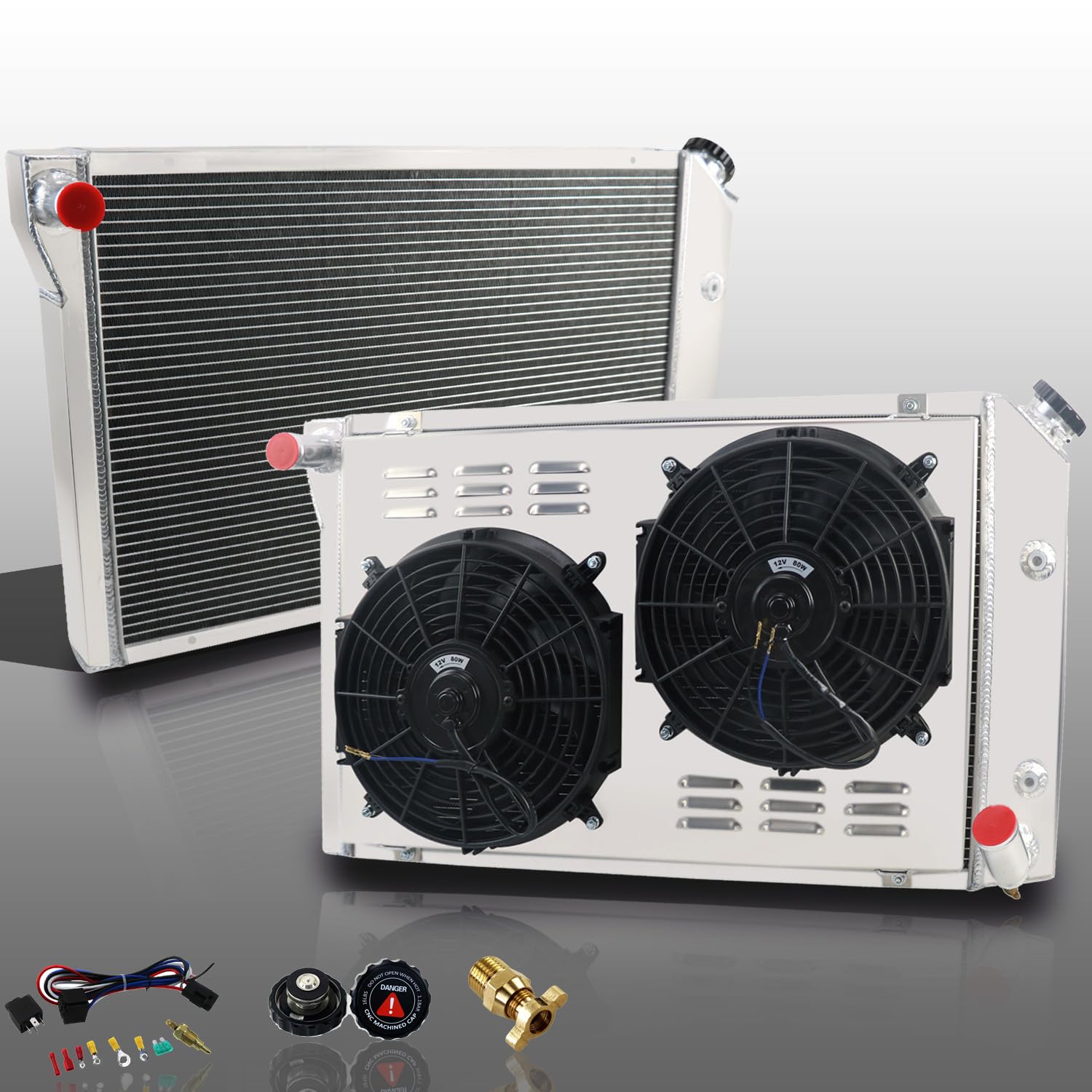

ColQuee MC718 3-Row Aluminum Radiator with Shroud & Dual 12" Fans - Compatible with 1977-1982 Chevy Corvette V8 AT/MT | High-Performance Cooling Upgrade for Street Racing & Hot Rod Builds

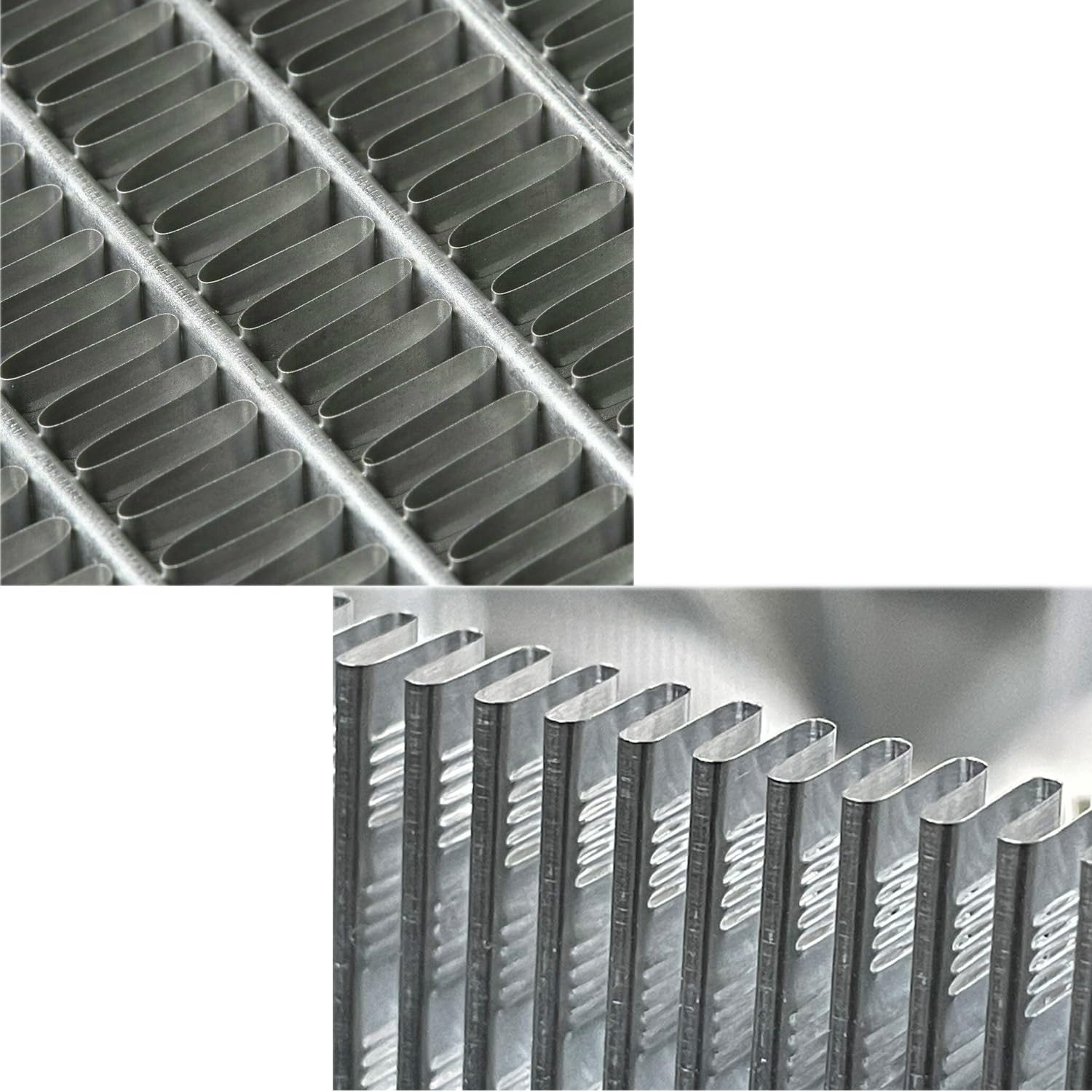

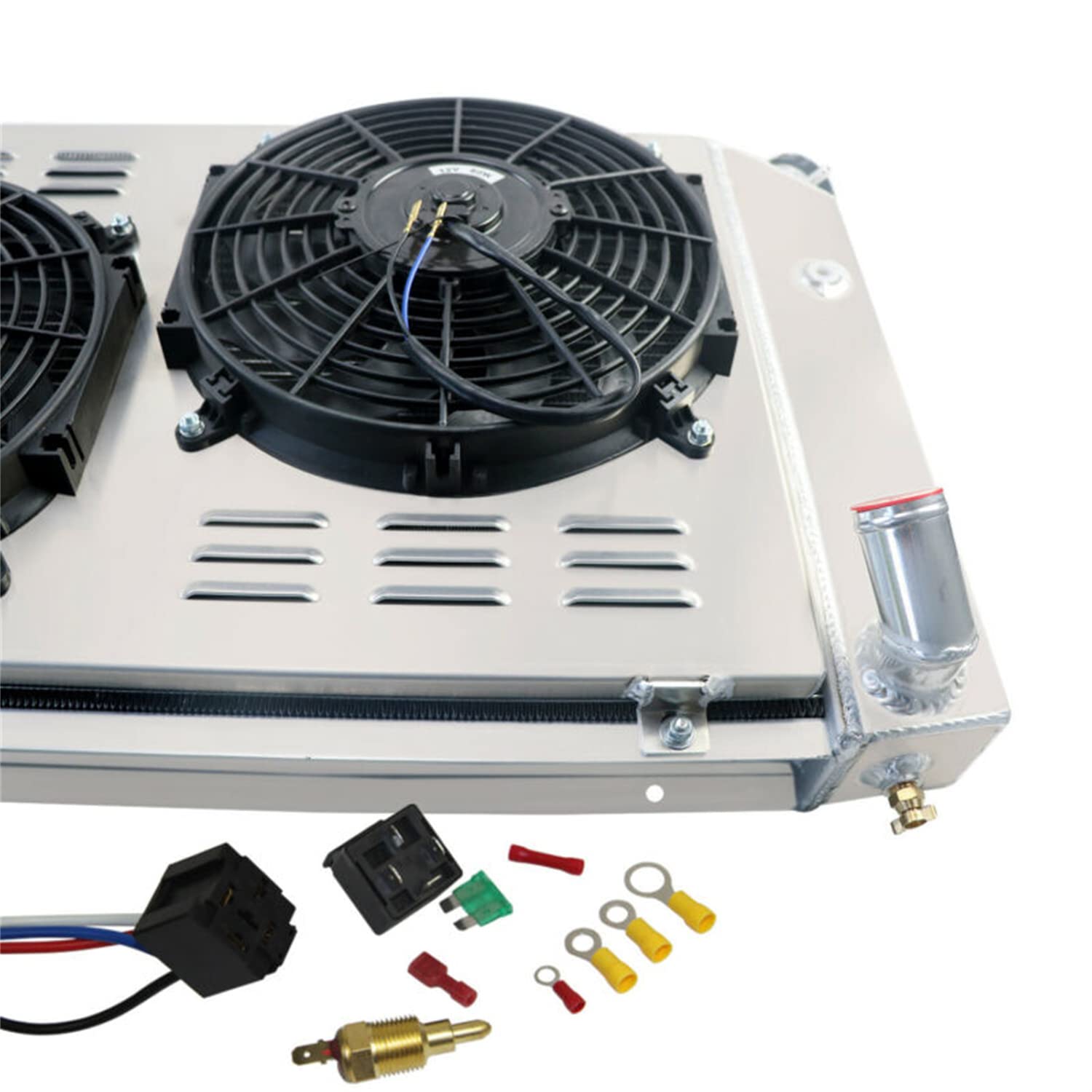

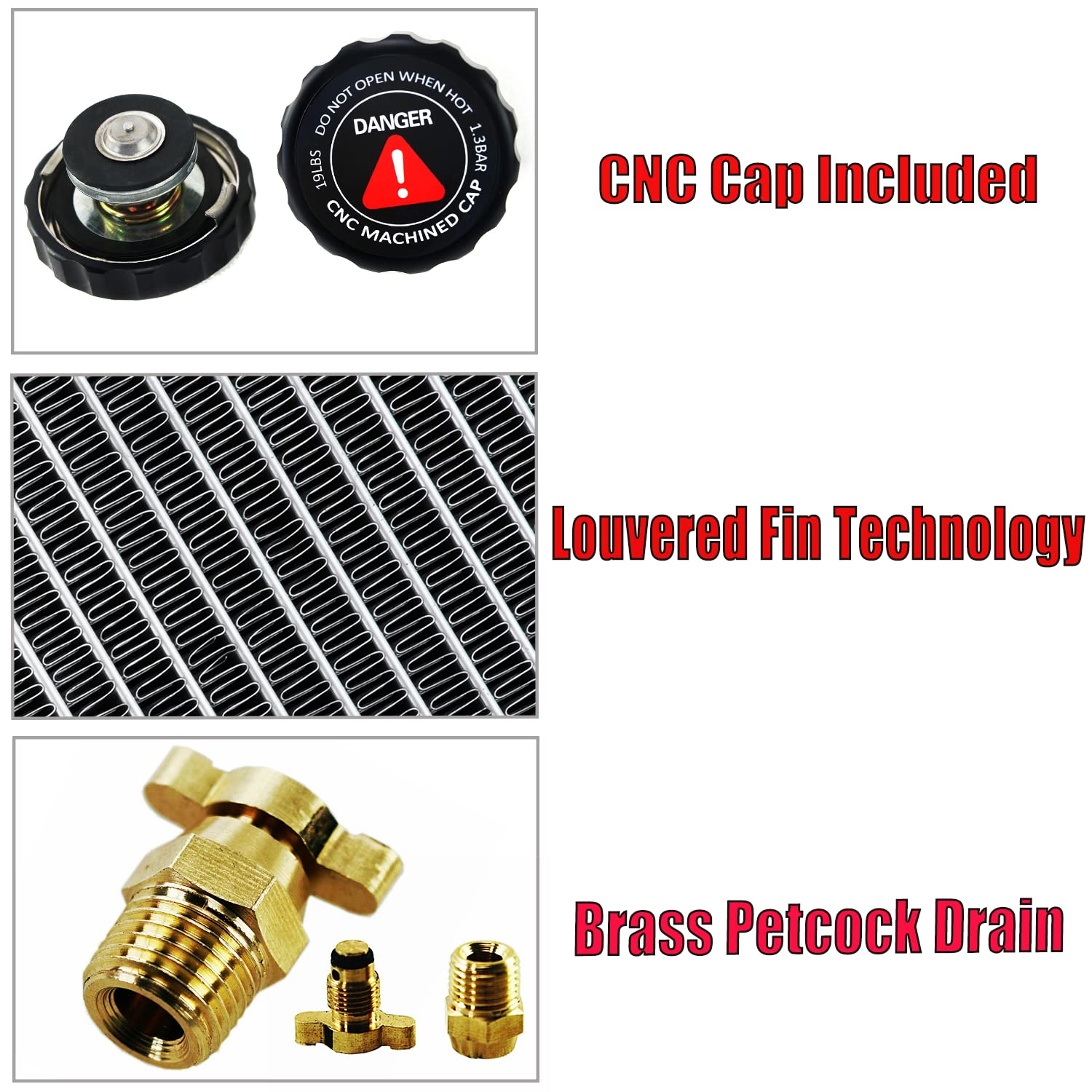

Made from Aircraft AA5052 grade aluminum for prolonged lifespanand with raw aluminum finishBrazed core technology to ensure optimum performance and dependabilityAll AA5052 Aluminum 2mm thick tanks and fittings,Ensure it's hard and durableBillet Aluminum CNC machined fill neck rugged and durableErgonomic design CNC machined cap with Engraved craftsmanship, anodized treatmentOEM Style Brass Petcock DrainCarefully crafted to exceptional OE standards for precise fit. Radiator Size: Material: Full AluminiumCore size: 3 Row CoreCore Dimensions: 17"High x 26-1/2"WideOverall Dimensions: 18-3/4"High x 32-1/4"WideUpper Inlet: 1-3/8" located on the Driver side.Lower Outlet: 1-1/2" located on the Passenger side.Transmission Oil Cooler: ￠26*205*G1/4(Z)CNC Precision Machined Radiator CapOEM Style Brass Petcock Drain FAN Specification: Maximum Fan CFM: 1730 cfmFan Diameter (in): 12.050"Thickness (in): 2.500"Number of Blades: 10 bladesMaximum Fan RPM: 2,250 rpmBlade Material: PlasticAmp Draw: 12.70 ampsIncludes the Mounting Tabs for an Easy Zip Tie Installation. Thermostat Kit: Universal fit for any automotive vehicle and electric fan.Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature.RED + connect directly to battery.WHITE wire to ignition switch power source.BLACK goes to thermos switch.BLUE wire goes to the Fans.This set up will run Fans & pull air in through radiator. Precision Manual Welding! Core Brazing Technology! High Quality Products! Product Leaking Testing！ Vehicle Fitment: Compitable with 1977-1982 Chevy Corvette 350ci 5.0L / 5.7L V8 EngineInterchange Part Number: 717,718,CC718 A717,B718,CU717,CU718Other Part Number: DPI718, EC718,8010717Manufacturer Part Number: MC718 Package Include: 1 X 3-Row AA5052 Aluminum Radiator 1 X CNC Machined Radiator Cap 1 X AA5052 Aluminum Shroud 2 X 12" Fans (Includes mounting kits) 1 X Thermostat Relay Kit If you have any questions, we have comprehensive after-sales service and will do our best to help you.

☆PAKAGE INCLUDING! - ONE 3-Row Full Aluminum Radiator+Aluminum Shroud+2X12"Fans&Kit.

☆VEHICLE FITMENT! - Compatible With Chevy Corvette 350ci 5.0L/5.7L V8 Engine 1977-1982 - You can check more Vehicle Fitment above the product's title. - Please check the Vehicle Fitment before you buy!

☆PRODUCT DETAILS! - Core Dimensions 17"High x 26-1/2"Wide ; Overall Dimensions 18-3/4"High x 32-1/4"Wide ; Upper Inlet 1-3/8" located on the Driver side ; Lower Outlet 1-1/2" located on the Passenger side ; Transmission Cooler Included ; Maximum Fan CFM 1730 cfm ; Maximum Fan RPM 2,250 rpm ; Fans Amp Draw 12.70 amps.

☆CAPACITY & TECHNIQUE! - With High tech quality control and CE welding craftsmanship, the Light weight Aluminum radiator can be direct bolt-on OEM fitment or replacement easily, and it can improve 30%-45% more cooling performance than stock ones.

☆BUY WITH CONFIDENCE - Vehicle test-fitted prior to market release, ensuring perfect drop-in fit and safety
