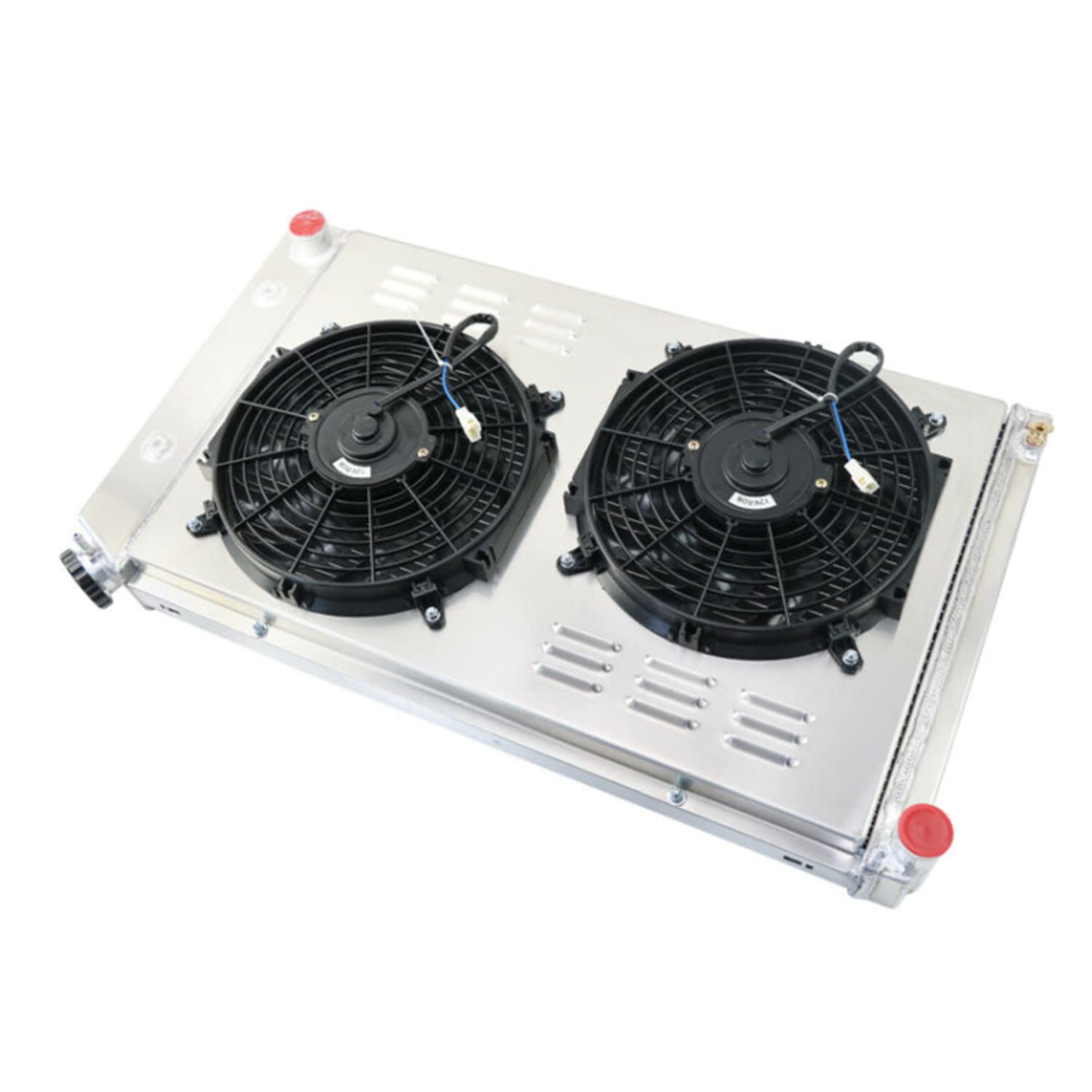

4 Row Aluminum Radiator Shroud with Dual 12" Fans - Compatible with 1970-1981 Pontiac Firebird & Trans Am (V8/L6 4.3L) - High Performance Cooling Upgrade for Classic Muscle Cars - Perfect for Hot Rods, Street Racing & Summer Driving

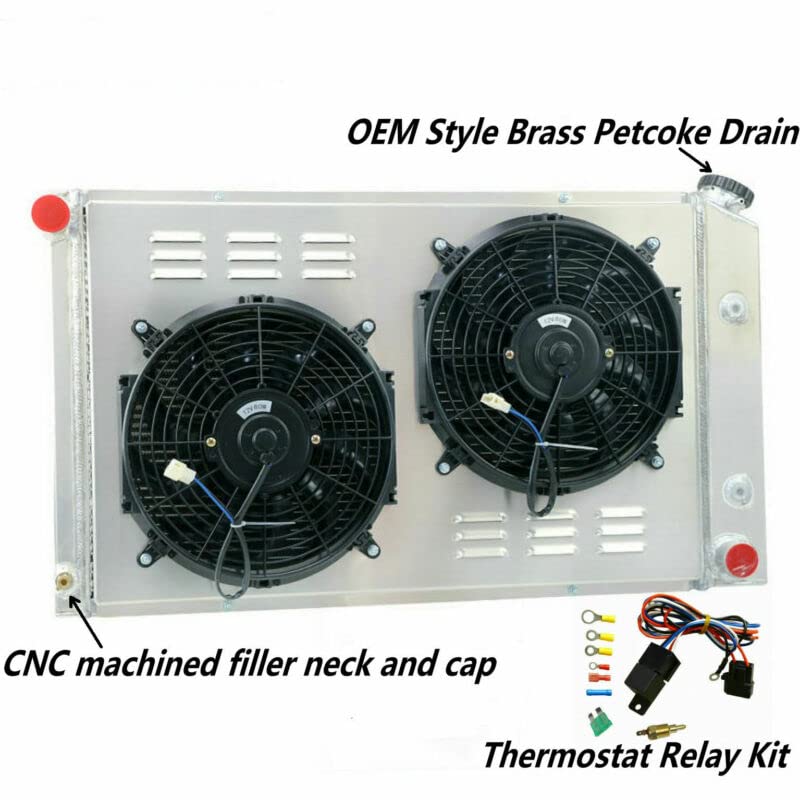

Vehicle Fitment For 1970-1973 Pontiac Firebird Trans Am 4.1L 5.7L 6.6L 7.5L For 1974-1975 Pontiac Firebird Trans Am V8 5.7L For 1974-1976 Pontiac Firebird Trans Am V8 7.5L For 1979-1981 Pontiac Firebird Trans Am V8 4.9L For 1980-1981 Pontiac Firebird Trans Am V8 5.0L For 1976-1979 Pontiac Firebird Trans Am V8 6.6L For 1977-1981 Pontiac Firebird Base / Esprit V6 3.8L For 1980-1981 Pontiac Firebird Base / Esprit V8 4.3L For 1977-1981 Pontiac Firebird Base / Esprit / Formula V8 4.9L For 1977-1980 Pontiac Firebird Base / Esprit / Formula V8 5.0L For 1974-1979 Pontiac Firebird Base / Esprit / Formula V8 5.7L For 1976-1977 Pontiac Firebird Base / Esprit V8 6.6L For 1974 Pontiac Firebird Base / Esprit / Formula V8 7.5L For 1976-1979 Pontiac Firebird Formula V8 6.6L For 1981 Pontiac Firebird Formula 3.8L 4.3L 5.0L 4 Core Radiator Size High Performance Racing Spec. 4-Row of tubes Core Racing Design Petcock Drain:OEM style brass petcock drain Core Size: 17" H x 27 1/2" W Overall Size: 18 3/8" H x 32 1/2" W Upper Inlet: 1 1/2" on driver side Lower Outlet: 1 1/2" on passenger side Transmission Oil Cooler: G1/4(Z) Fan Size Maximum Fan CFM: 1730 cfm Fan Diameter (in): 12.050” Thickness (in): 2.500” Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation ASCIUTTA Radiator, Your Best Choice 1. Made from Aircraft AA5052 grade aluminum for prolonged lifespanand with raw aluminum finish 2. Brazed core technology to guarantee optimum performance and dependability 3. All AA5052 Aluminum 2mm thick tanks and fittings, ensure it's hard and durable 4. Billet Aluminum CNC machined fill neck rugged and durable

Model Application For 1970-1981 Pontiac Firebird/Trans Am V8 I6. This 4 core radiator is designed for either a 3.8L(231ci) V6, 4.3L(265ci) V8, 4.9L(301ci) V8, 5.0L(305ci) V8, 5.7L(350ci) V8, 6.6L(400ci) V8 or a 6.6L(403ci) V8 engine.

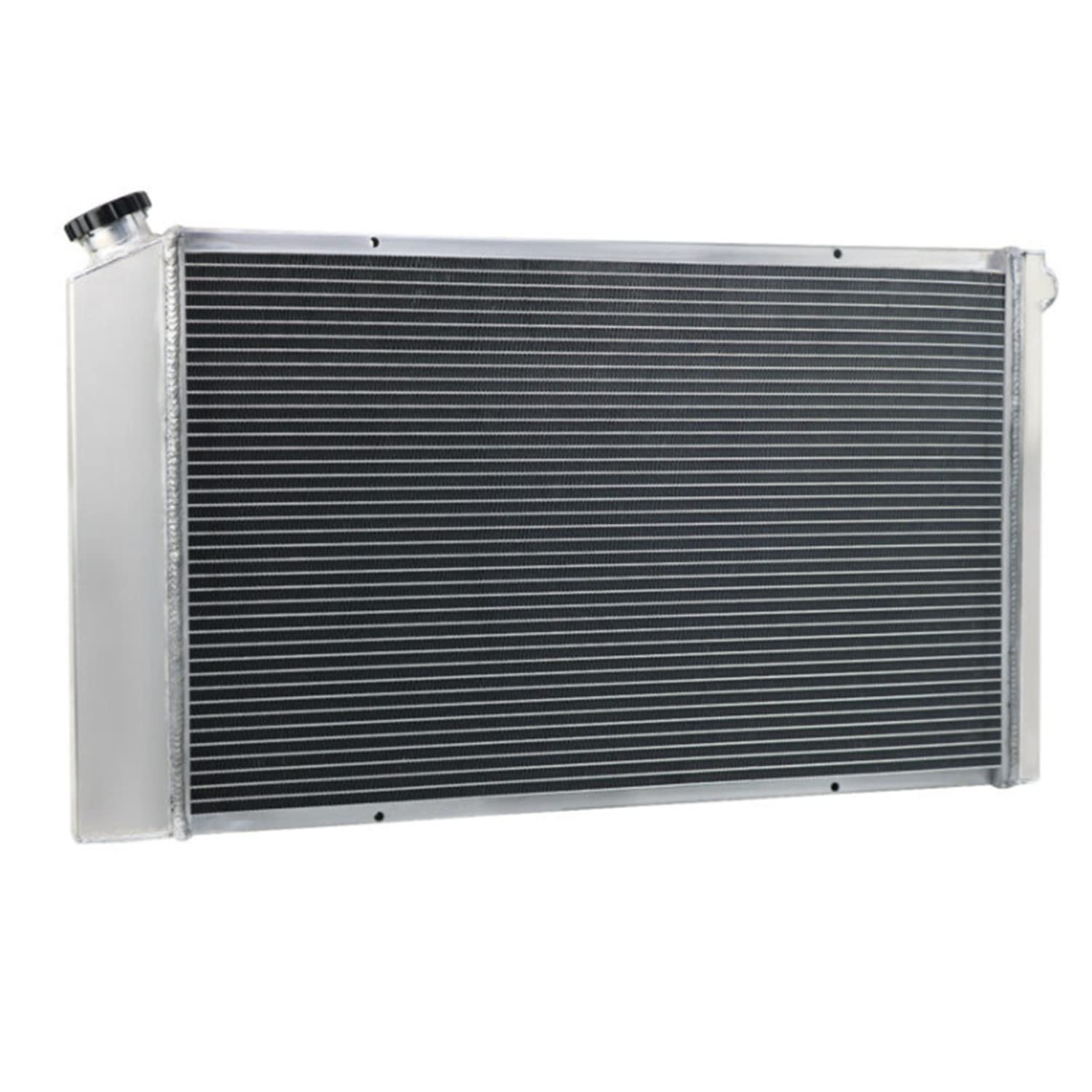

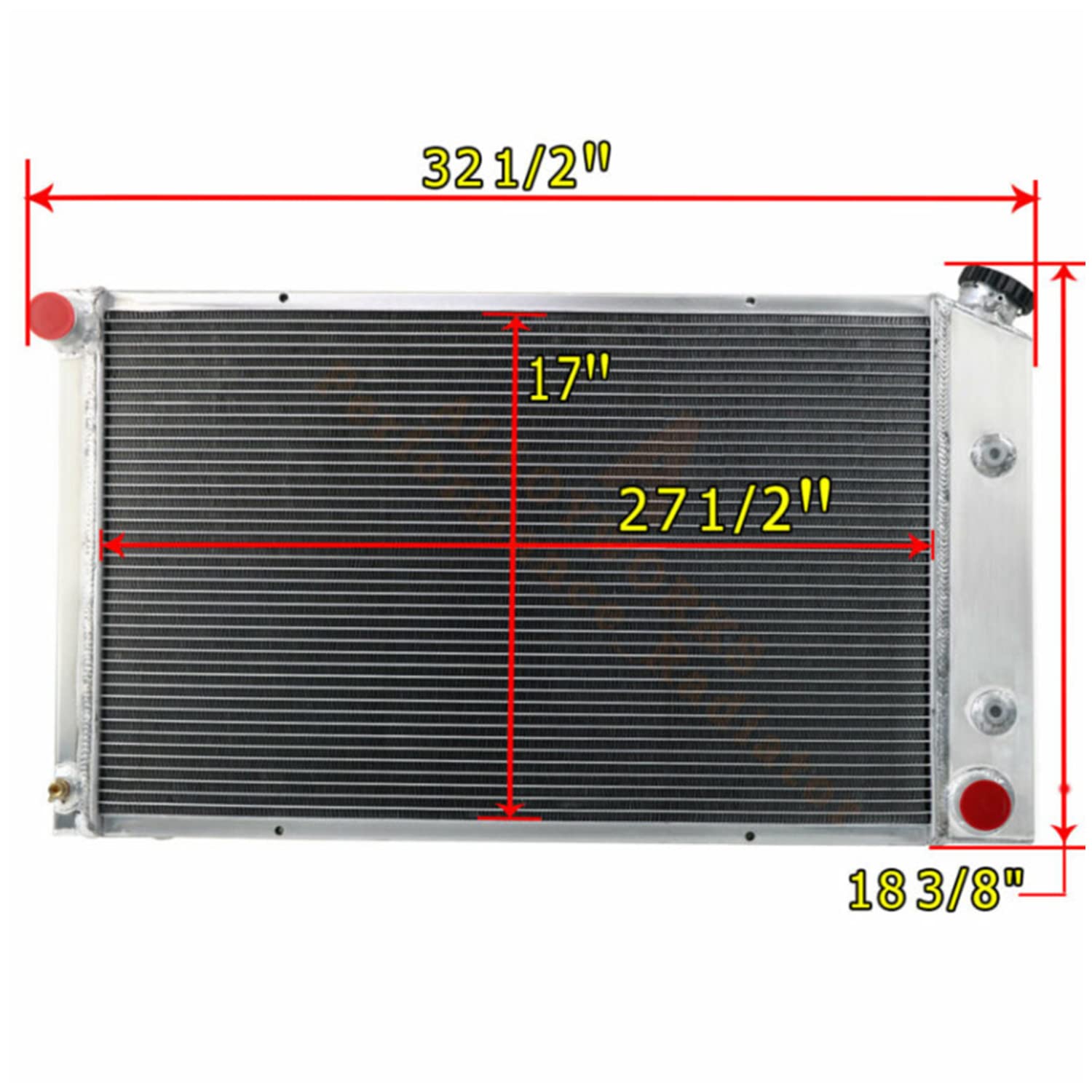

Product Details Core Size 17" H x 27 1/2" W; Overall Size 18 3/8" H x 32 1/2" W; Upper/Lower Inlet 1 1/2"; Transmission Oil Cooler G1/4(Z)

Performance Made of high quality Aircraft AA5052 grade aluminum Construction. At least 40% more efficient than stock one.

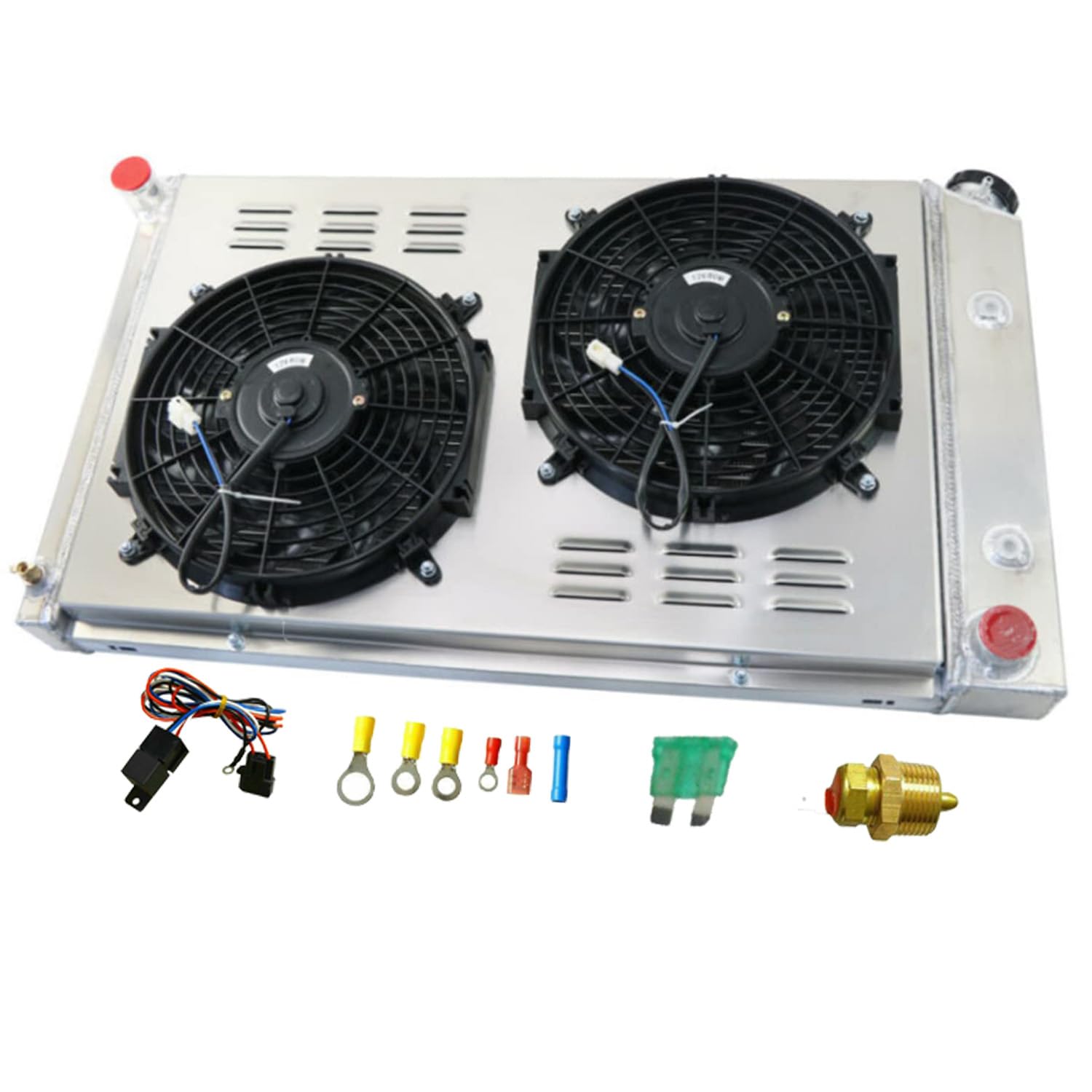

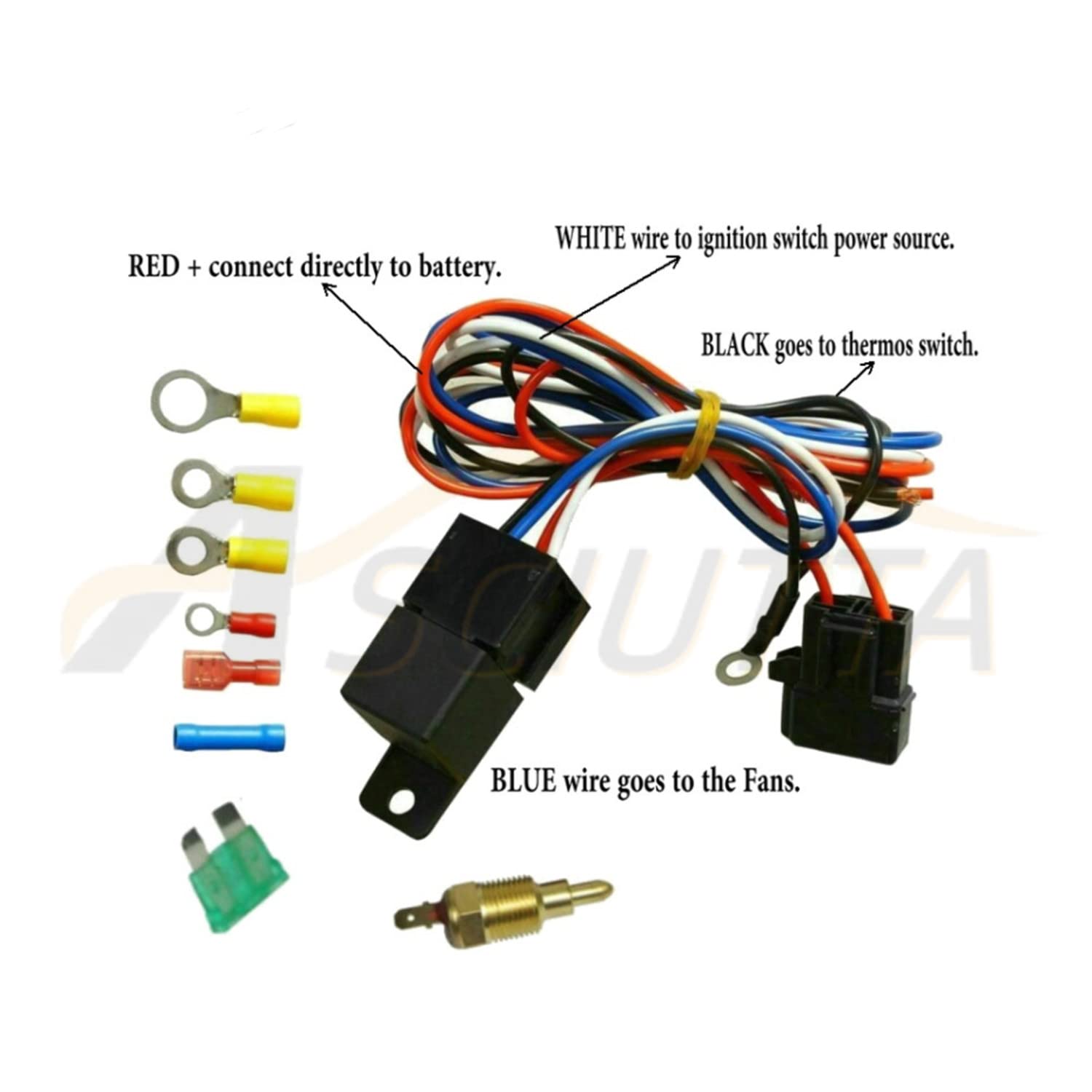

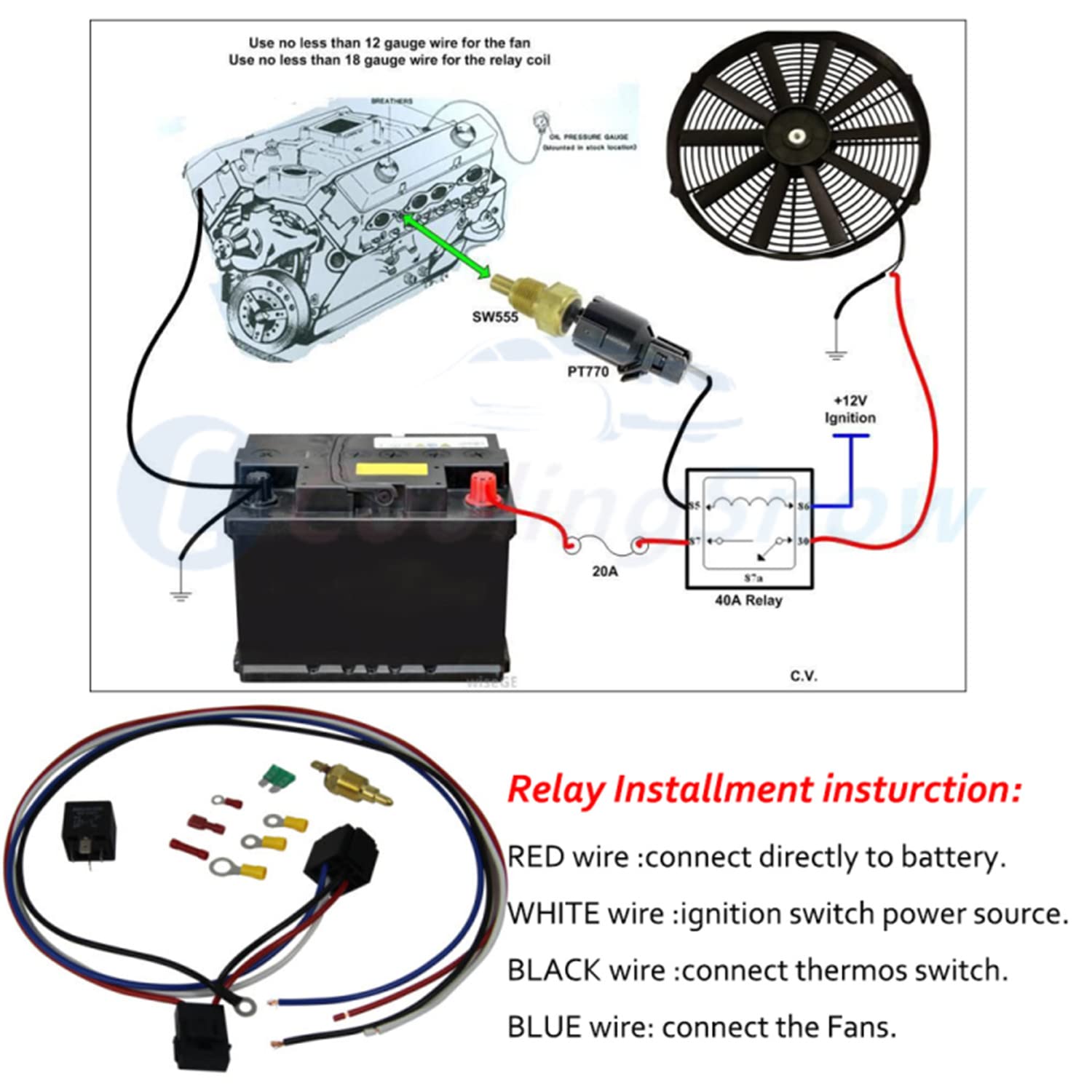

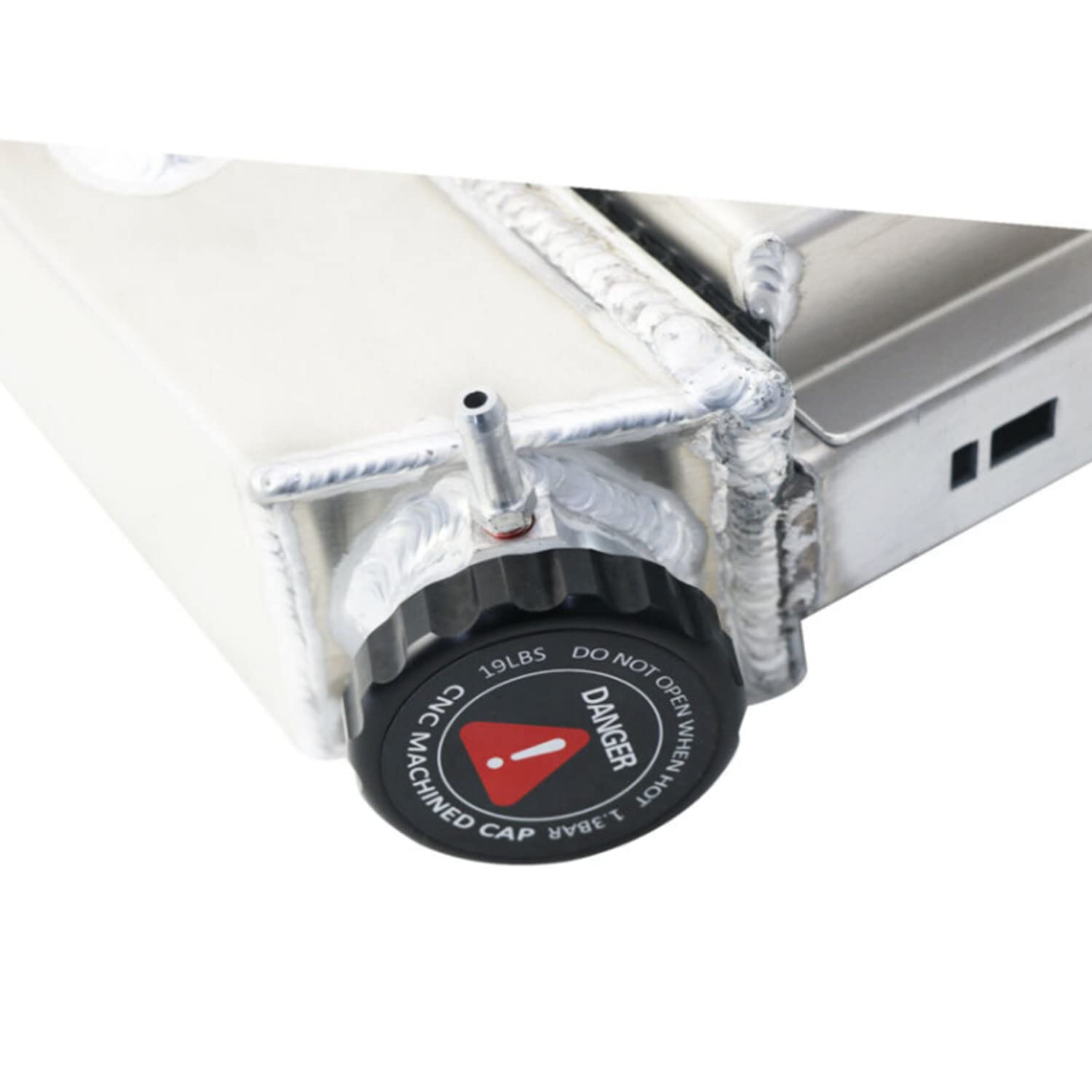

Package Include 1 X 4 Rows Aluminum Radiator (Includes Radiator Cap); 1 X Aluminum Shroud; 2 X 12" Fans (Includes mounting kits); 1 X Thermostat Relay Kit

Please Check The Measurements and Make Sure Your Vehicle's Model, Year or Other Parameters Meticulous Prior to Ordering Is Better. Any Doubts, PLS Message Me Prompt
