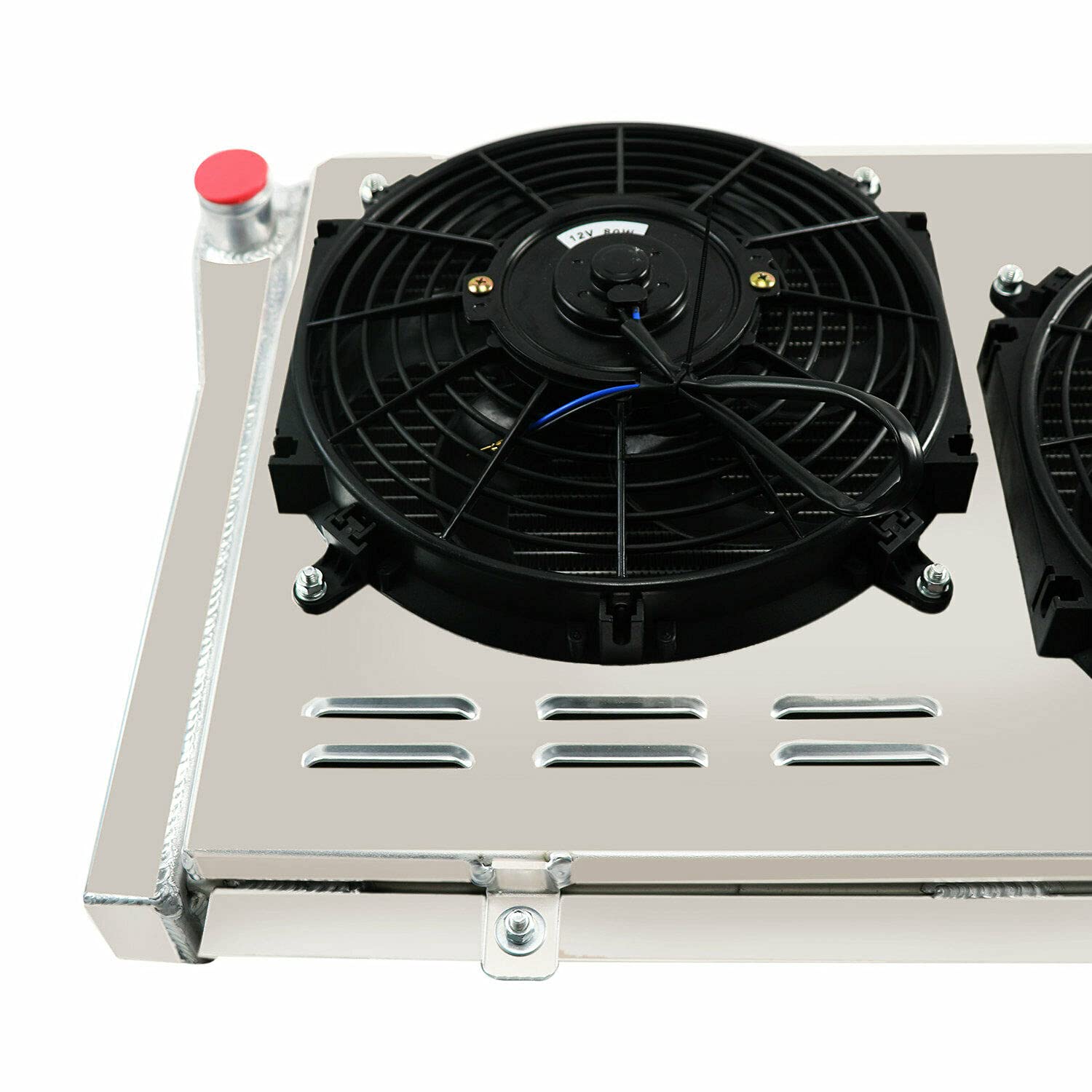

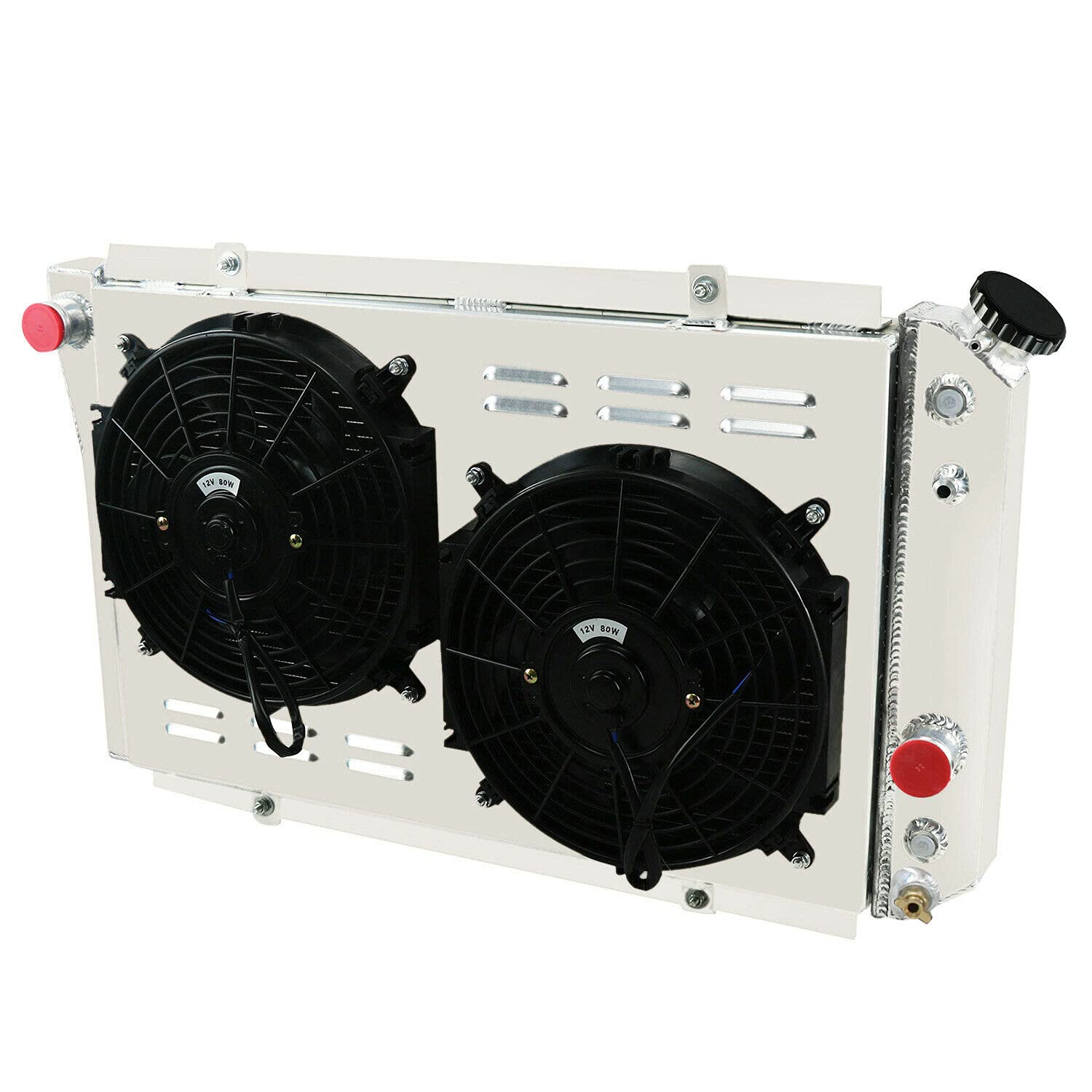

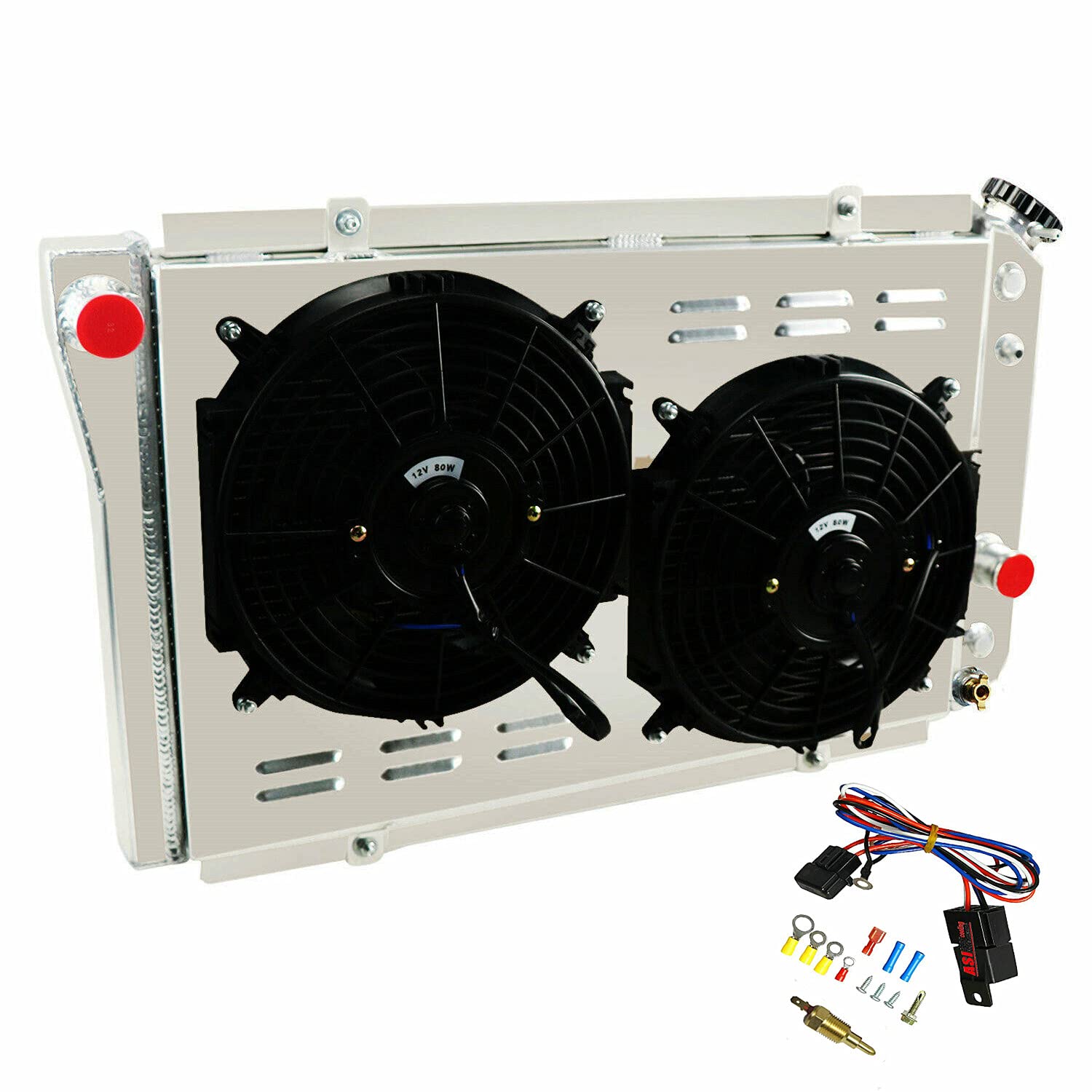

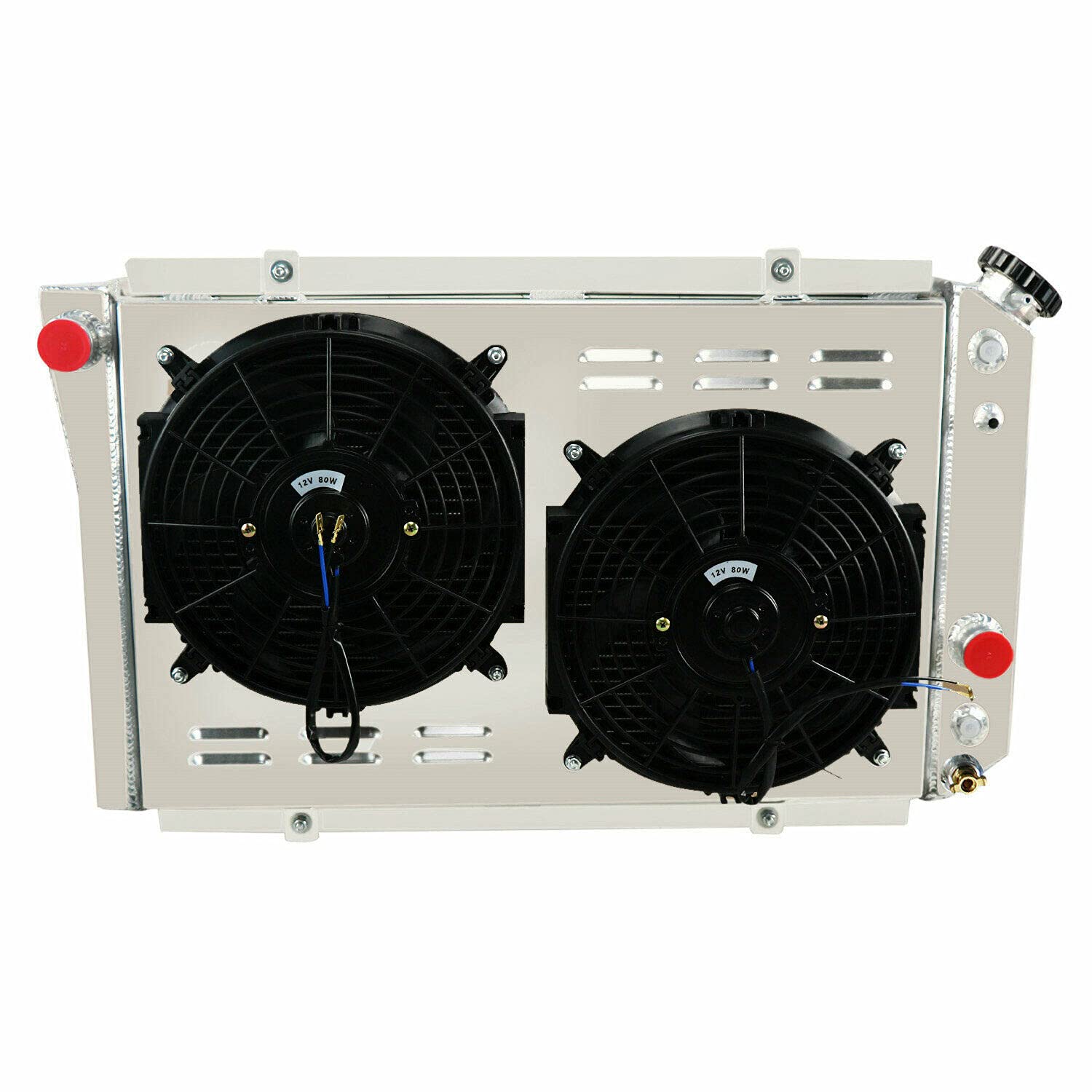

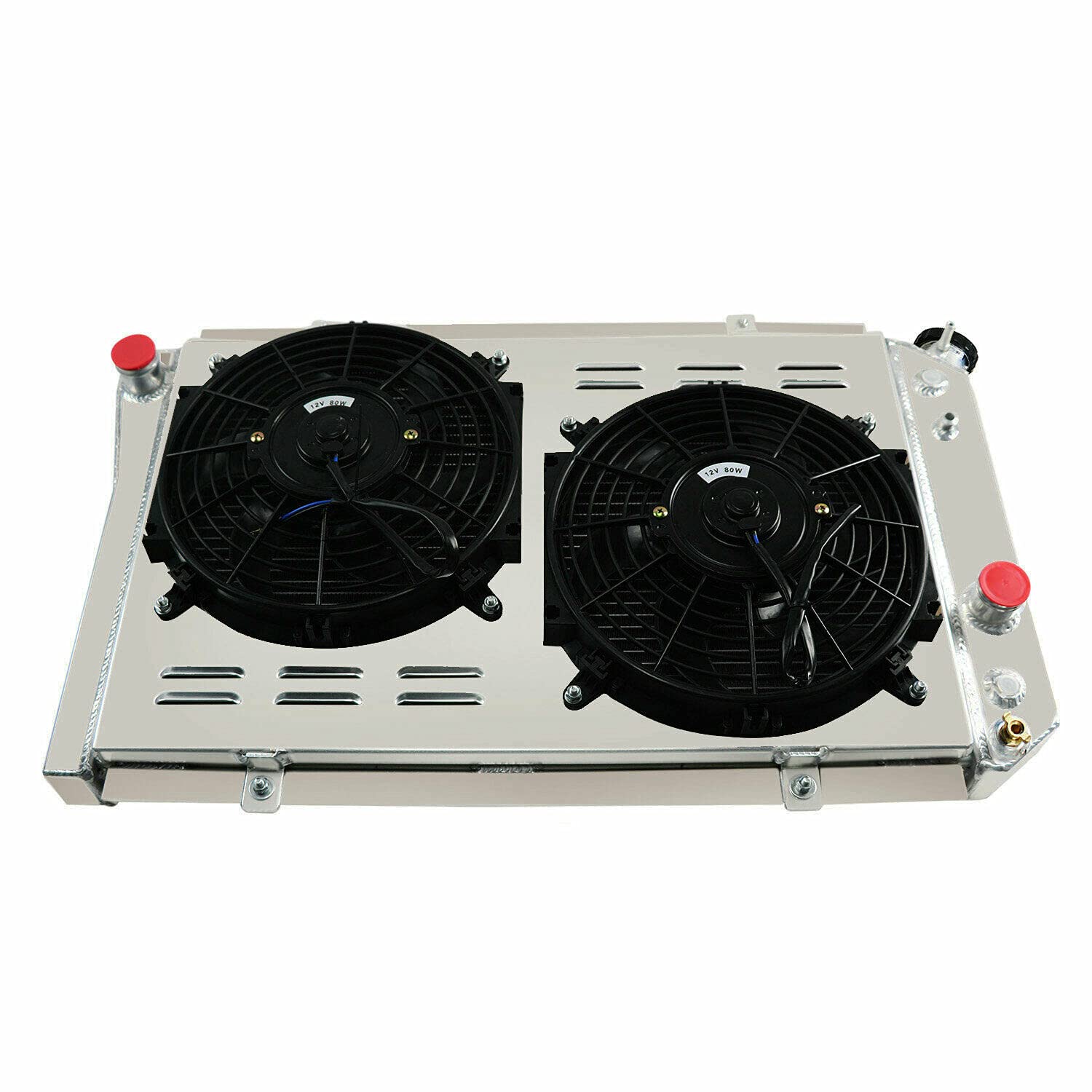

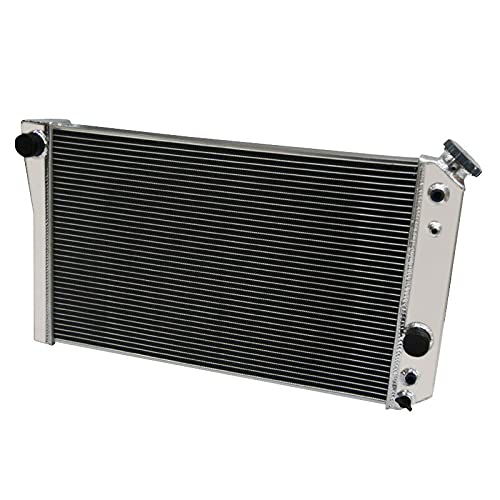

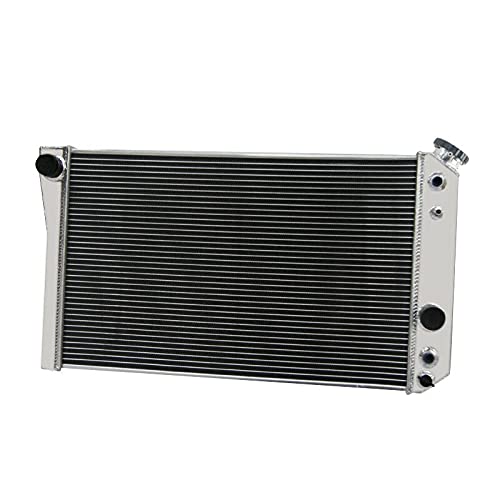

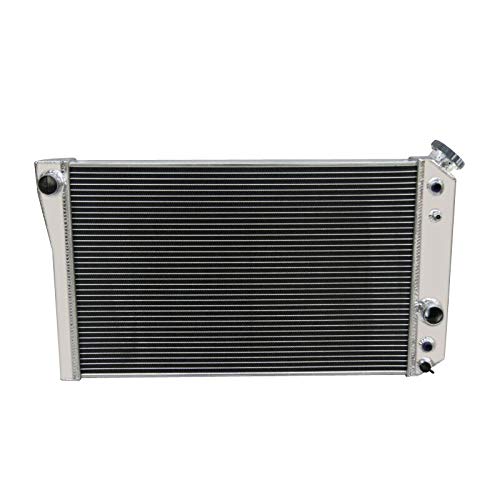

ECMRAD Aluminum Radiator Shroud Fans Combo for 1984-2002 Chevy S10 V8 Swap & 1984-1990 Corvette 5.7L V8 | High-Performance Cooling System | Perfect for Engine Upgrades & Hot Weather Driving

ECMRAD Aluminum Radiator is produced and designed to provide maximum cooling efficiency to prevent engine cooling failure. It is made of full aluminum light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. It has an increased durability over the factory plastic end tank radiator, and much inmprovwed engine cooling. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications. This Aluminum Radiator Compatible for: for 1982-2002 Chevrolet S10/S-10 Blazer V8 Conversion for 1984-1990 Chevrolet Corvette 5.7 V8 Radiator Size Details: 3 Rows Core Core Size: 23.500inch x 15.750inch Overall Size: 28.750inch x 16.000inch x 2.00inch Inlet/ Outlet: 1.375inch/ 1.375inch Transmission Oilcooler: BUILD-IN OILCOOLER Mounting Type : pin Package Included: 1 X 3-Row Aluminum Radiator w/ Radiator Cap 1 X Aluminum Shroud 2 X 12inch Fans (Includes mounting kits) 1 X Thermostat Relay Kit in a Carton Box Fans Details: Maximum Fan CFM: 1730 cfm Fan Diameter (in): 10.050inch Thickness (in): 2.500inch Number of Blades: 6 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps

Full aluminum construction with durable, TIG-welded end tanks

This Aluminum Radiator is at least 35% to 45% more efficient than stock ones

Fit for V8 Conversion Application ONLY

Core Size 14-3/4 inch H x 23-5/8 inch W, Overall Size 15-3/8 inch H x 29-3/4 inch W

Transmission Oil Cooler included, built-in, OEM Style Brass Petcock Drain

Compatible with vehicle type For Chevy Corvette L83/S10 Pickup 2.5L 2.8L 4.3L 5.7L V8 GAS 1984-1990

Part number ECM-R-2270

Fit type Vehicle Specific
