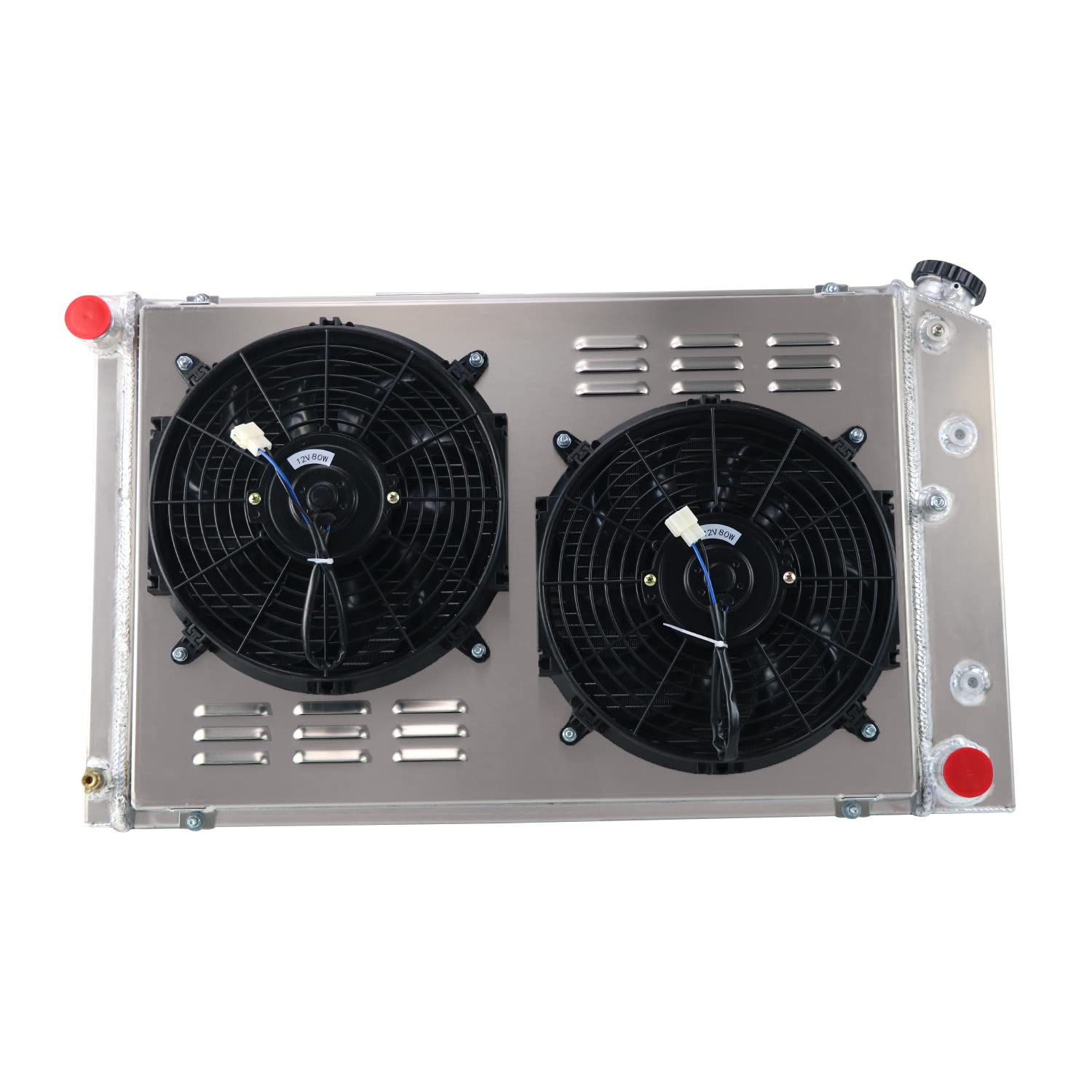

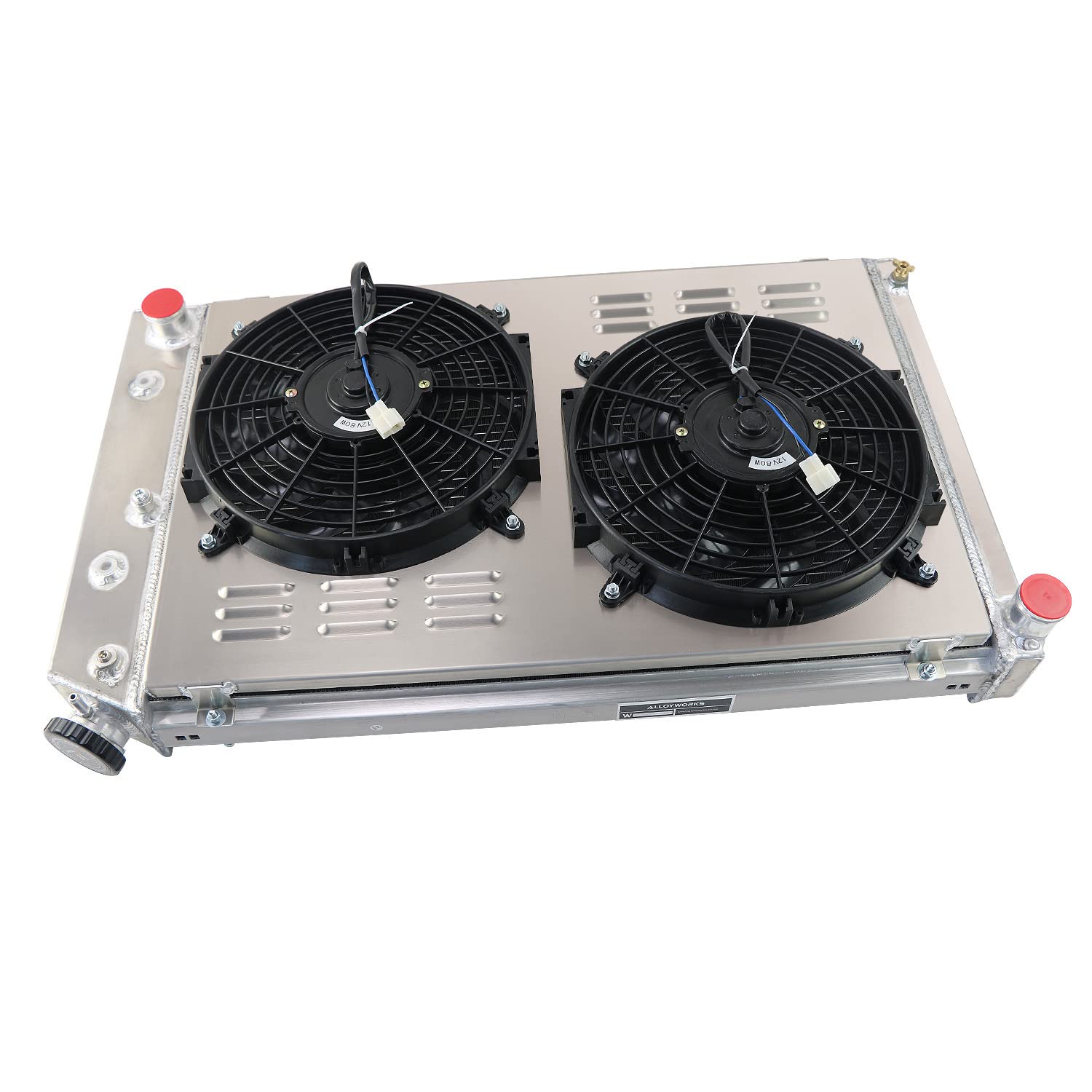

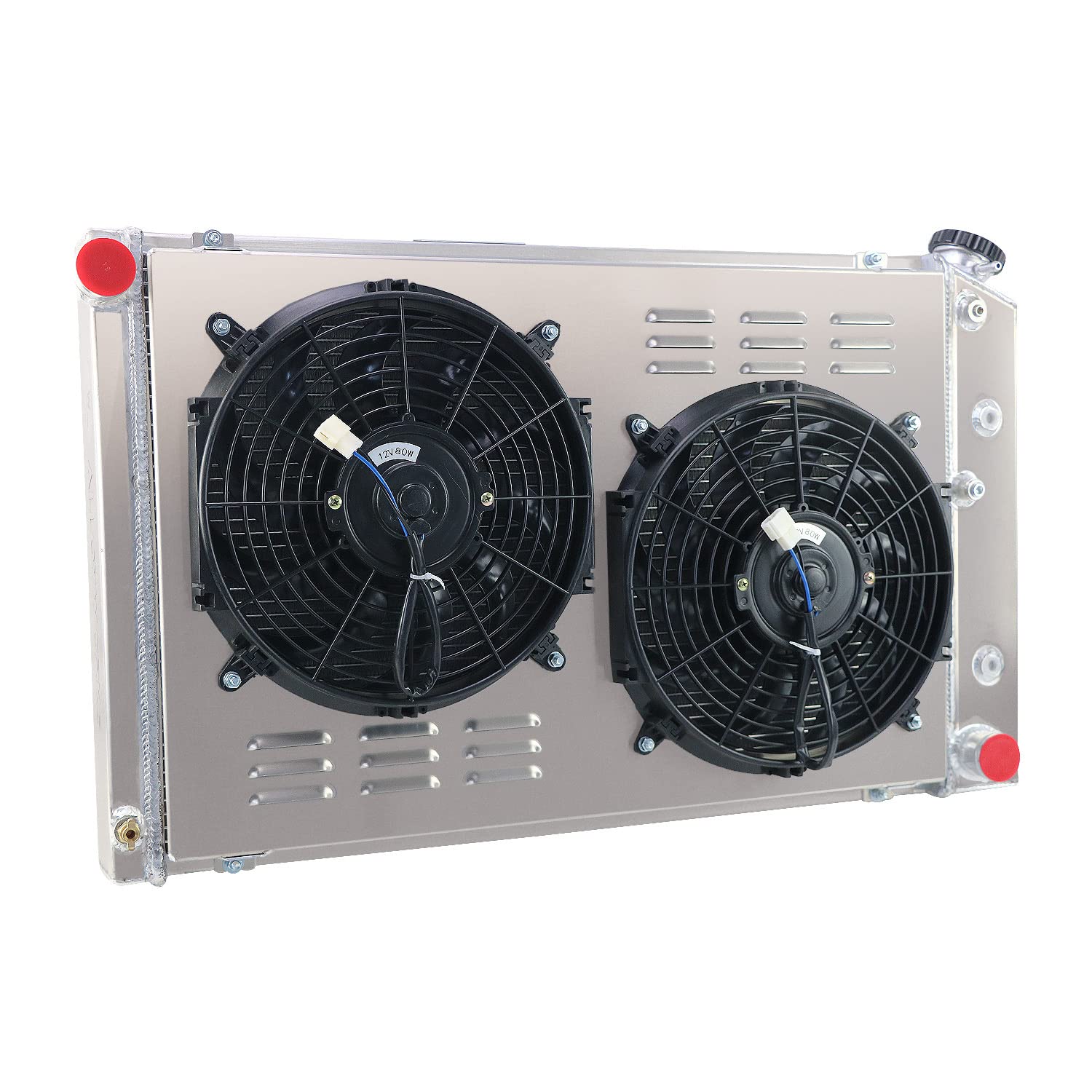

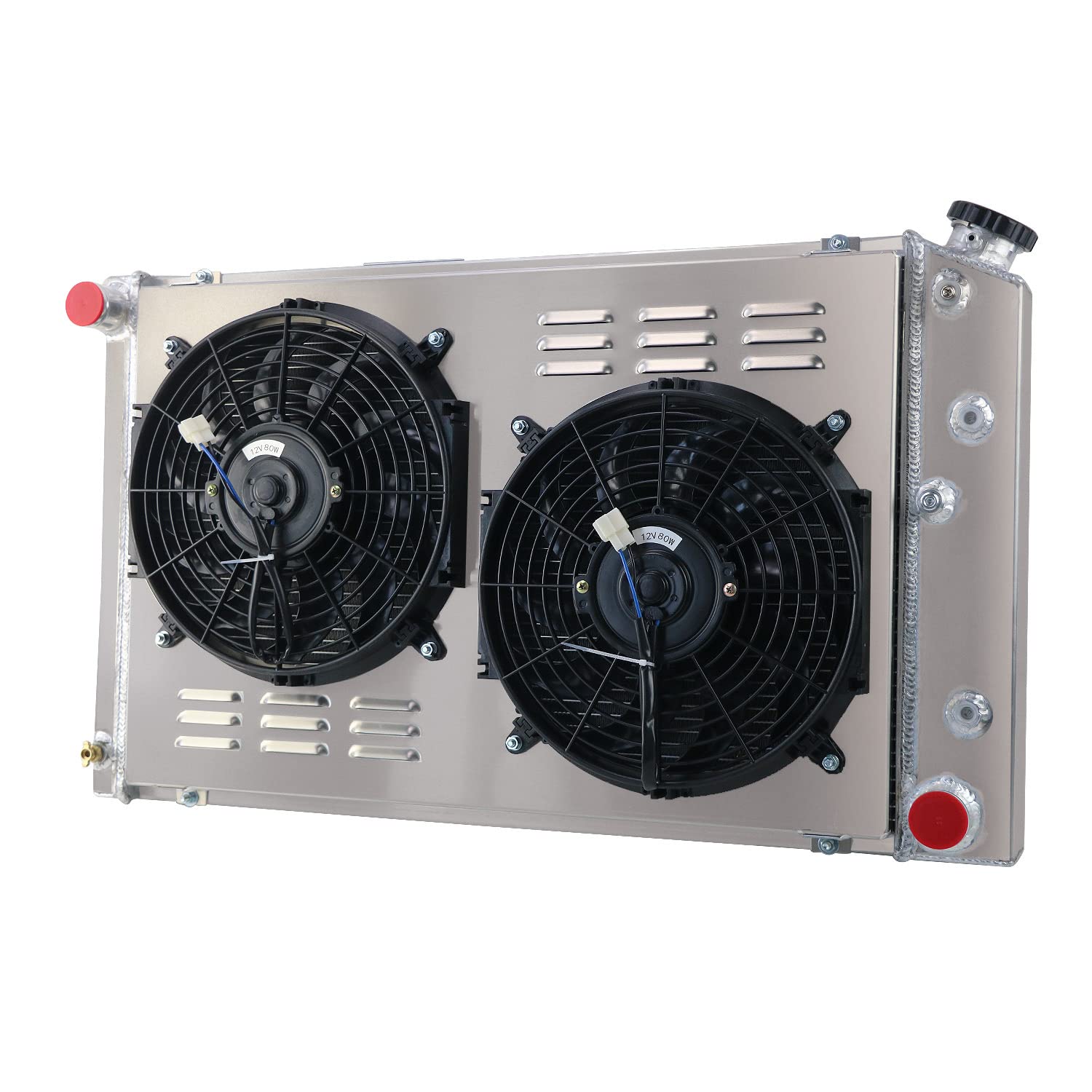

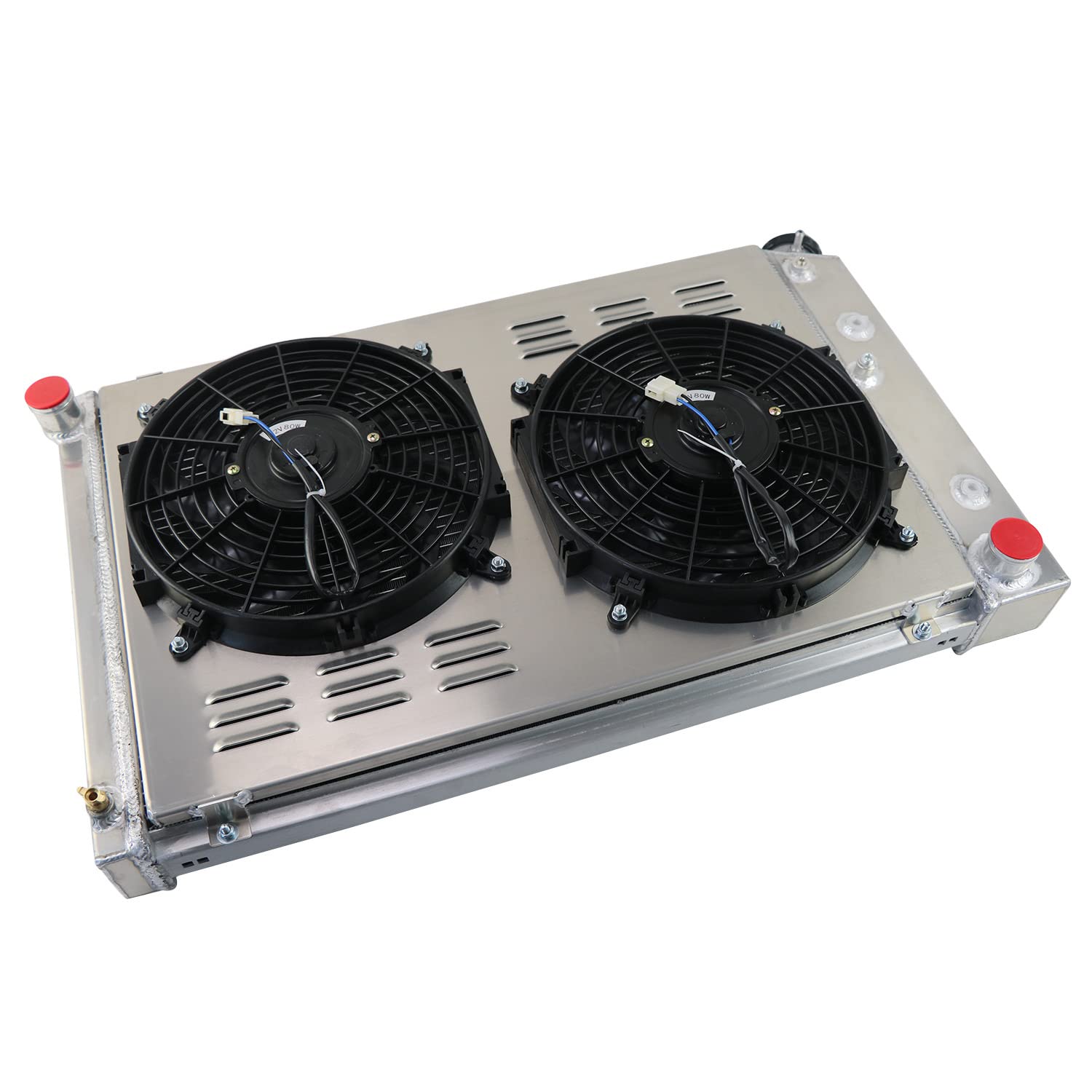

High-Performance 3 Row Aluminum Radiator with Fan Shroud & Relay Kit - Compatible with 1973-1980 Chevy/GMC C/K 10 20 30 Pickup Suburban, 1970-1981 Camaro, 1978-1987 Monte Carlo, 1978-1988 Cutlass Supreme & More - Perfect for Engine Cooling & Restoration Projects

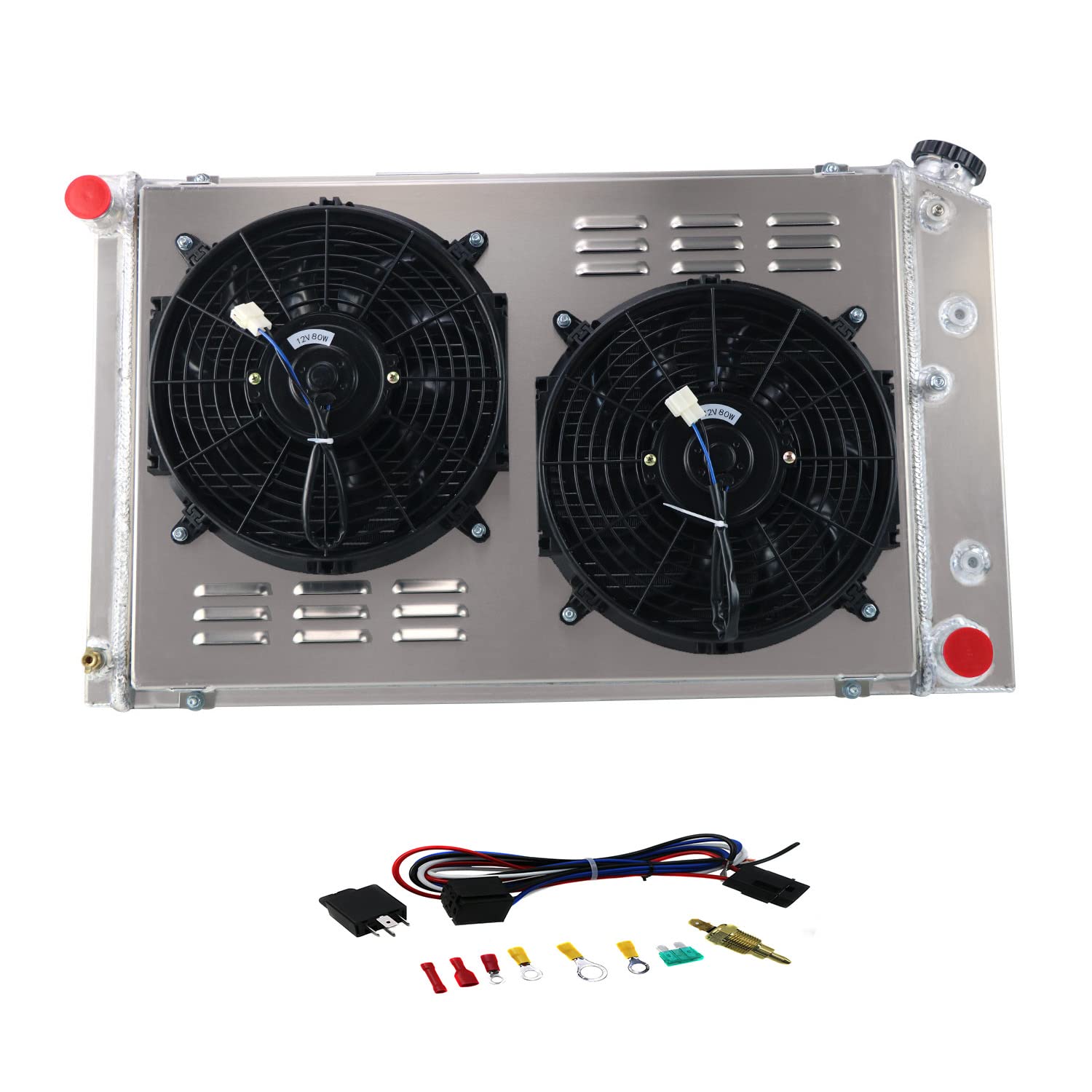

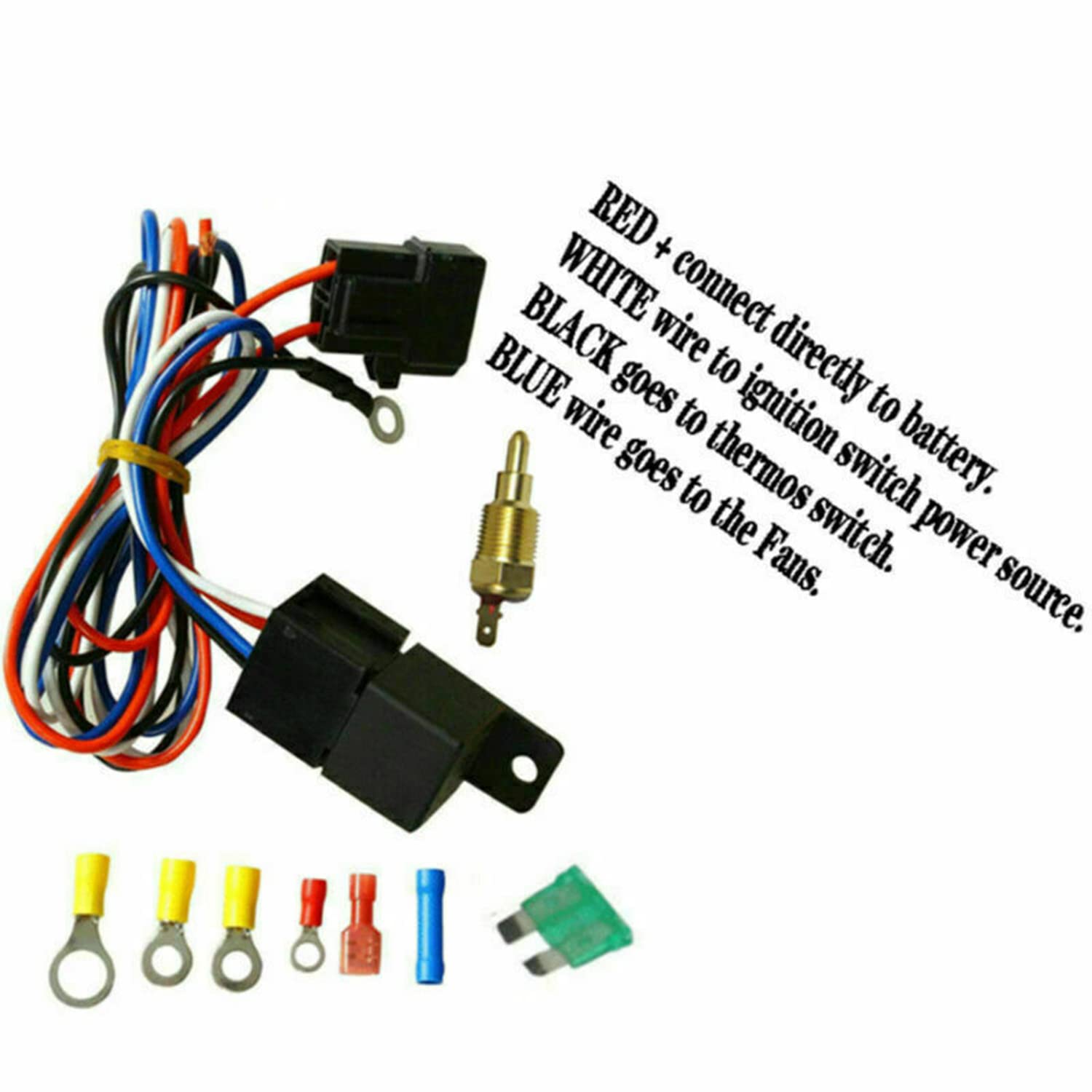

Package Include: 1 X 3 row aluminum radiator 1 X aluminum shroud 2 X 12" fans (includes mounting kits) 1 X thermostat relay kit Radiator Specifics: Condition: 100% Brand New Material: Aircraft 5057 grade aluminum tank & core Row: 3 Row Core Dimensions: 17" H x 26-1/4" W x 2 1/4" Thick Overall Dimensions: 18-1/4" H x 31-5/8" W x 2-1/2" Tank Thickness Upper Inlet 1-1/2" located on the Driver side Lower Outlet 1-1/2" located on the Passenger side Trans Cooler Included -1/2" 20 STRAIGHT THREAD G1/4- Mount Type: Saddle Fan Spec: Maximum Fan CFM: 2300±200 FAN Diameter: 12.05" X 12.05" X 2.5" Number of Blades: 10 blades (Plastic) Amp Draw: 12.70 amps Maximum Fan RPM: 2,250 rpm Thermostat Relay Kit Instructions: Activates by grounding electric fans at preset temperature. 180'F/165'F turn on/off temperature. RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. This Radiator Compatible with: 1980 Buick Century 4.3L 4.9L 5.0L 1979-1980 Buick Regal 3.8L 4.9L 1979 Buick Estate Wagon 5.7L 1979-1980 Chevy C10 / C20 /C30 /G10 4.1L 4.8L 5.7L 1979 Chevy C10 Suburban / C20 Suburban/ G20 / G30 4.1L 5.0L 5.7L 1979 Chevy Camaro /El Camino 3.3L 4.1L 4.4L 5.0L 5.7L 1980 Chevy Impala / Monte Carlo /P30 5.0L 5.7L 1979-1980 Chevy K10/K20 /K30 4.1L 4.8L 5.7L 1979 Chevy K10 Suburban / K20 Suburban 5.0L 5.7L 1979-1980 Chevy Malibu 3.3L 3.8L 4.4L 5.0L 5.7L 1980 GMC C1500/ G1500 /C1500 Suburban / C2500 /Jimmy/ K1500 Suburban/K2500 Suburban 1980 OldsmobileCutlass/Cutlass Cruiser/ Delta 88 5.0L 4.3L 1980 Pontiac Catalina / Grand LeMans/ LeMans OM/OEMPart Number: 162, SBR162, DPI162, CC162, CU162, KKS162

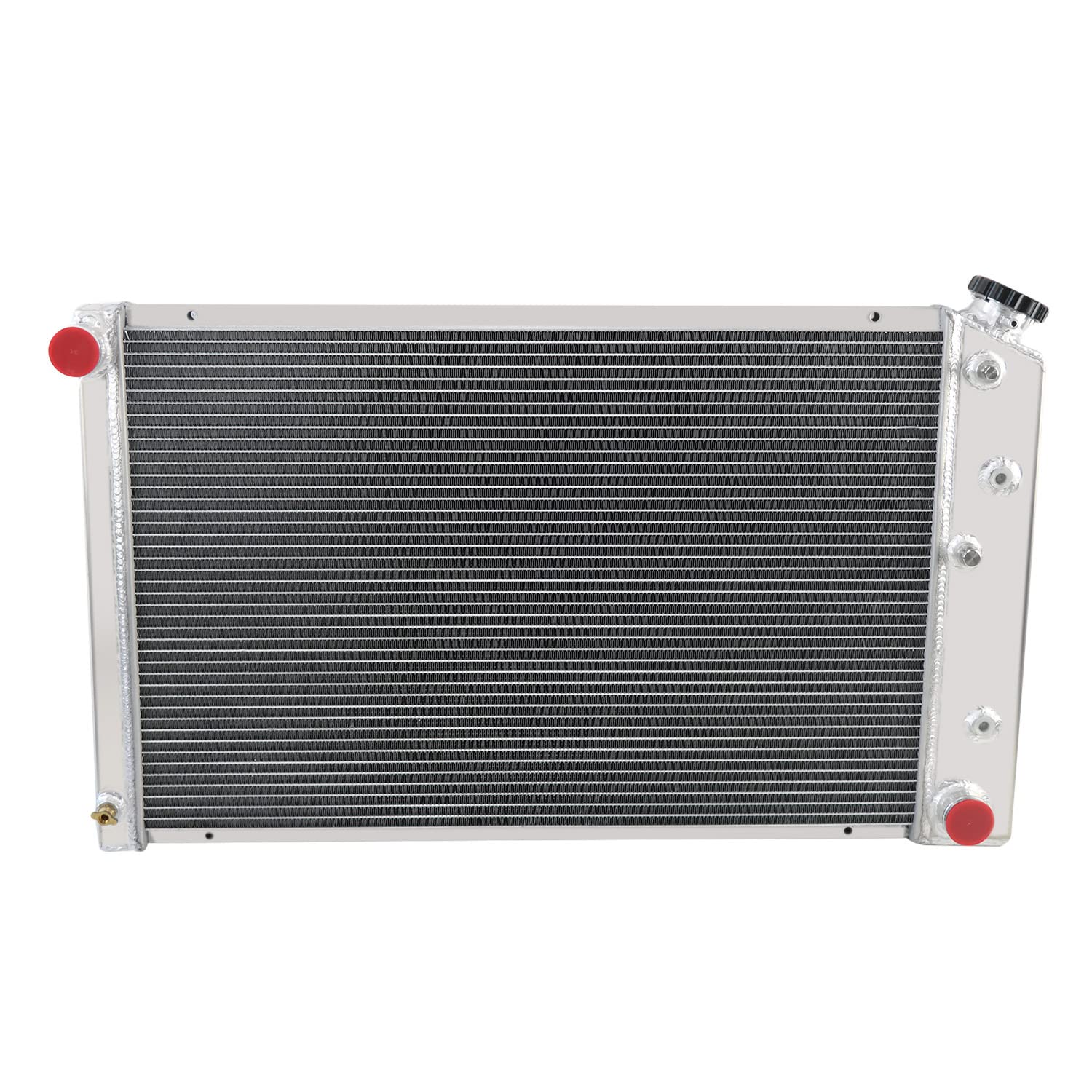

100% brazed aluminum core, TIG-welded to aluminum end tanks for superior durability and longevity

Core Dimensions 17" H x 26-1/4" W x 2 1/4" Thick, Overall Dimensions 18-1/4" H x 31-5/8" W x 2-1/2" Tank Thickness

Upper Inlet 1-1/2" located on the Driver side, Lower Outlet 1-1/2" located on the Passenger side

Shroud fan provides protection and extra heat heat dissipation for the radiator

Has undergone thorough inspection to guarantee consistent, lasting performance
