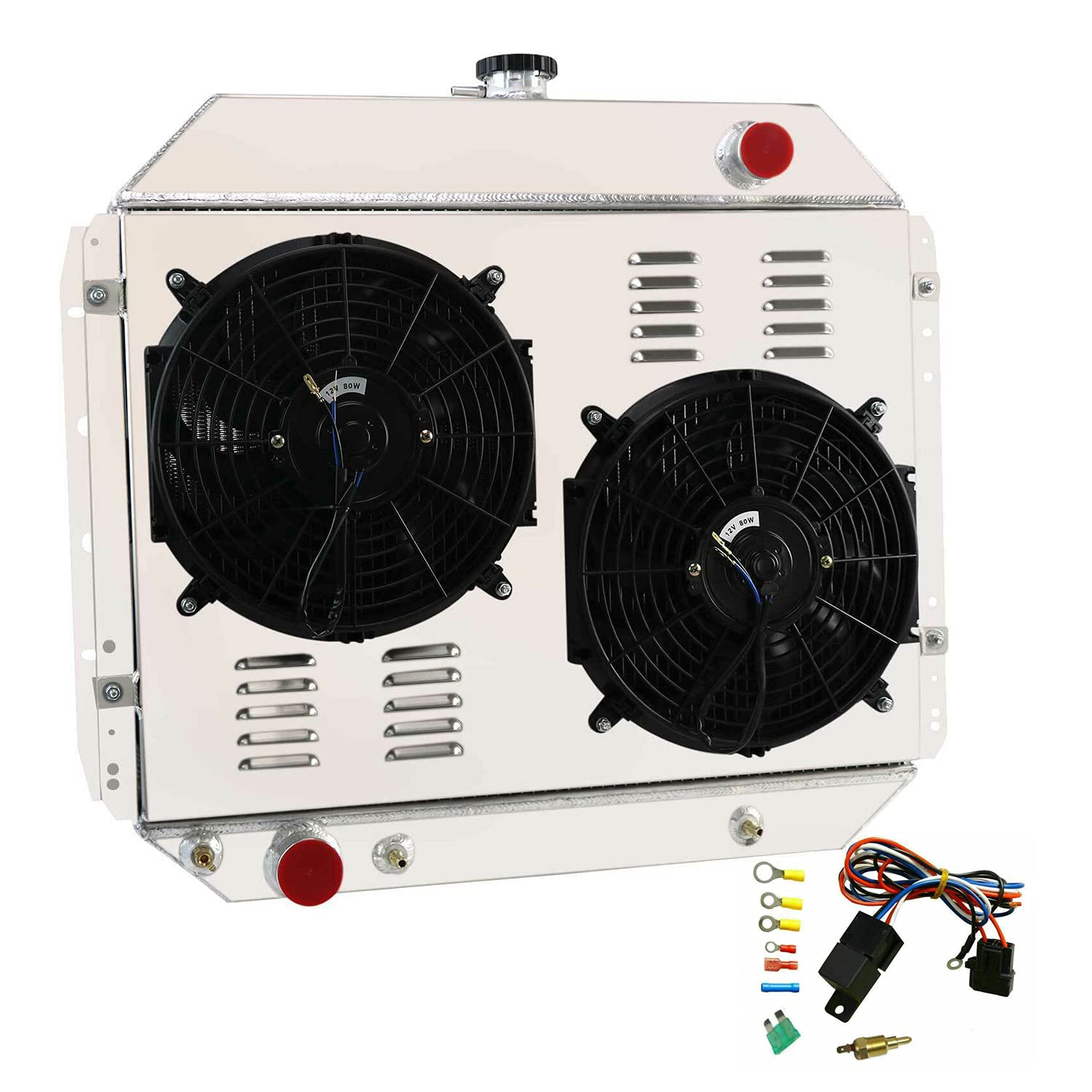

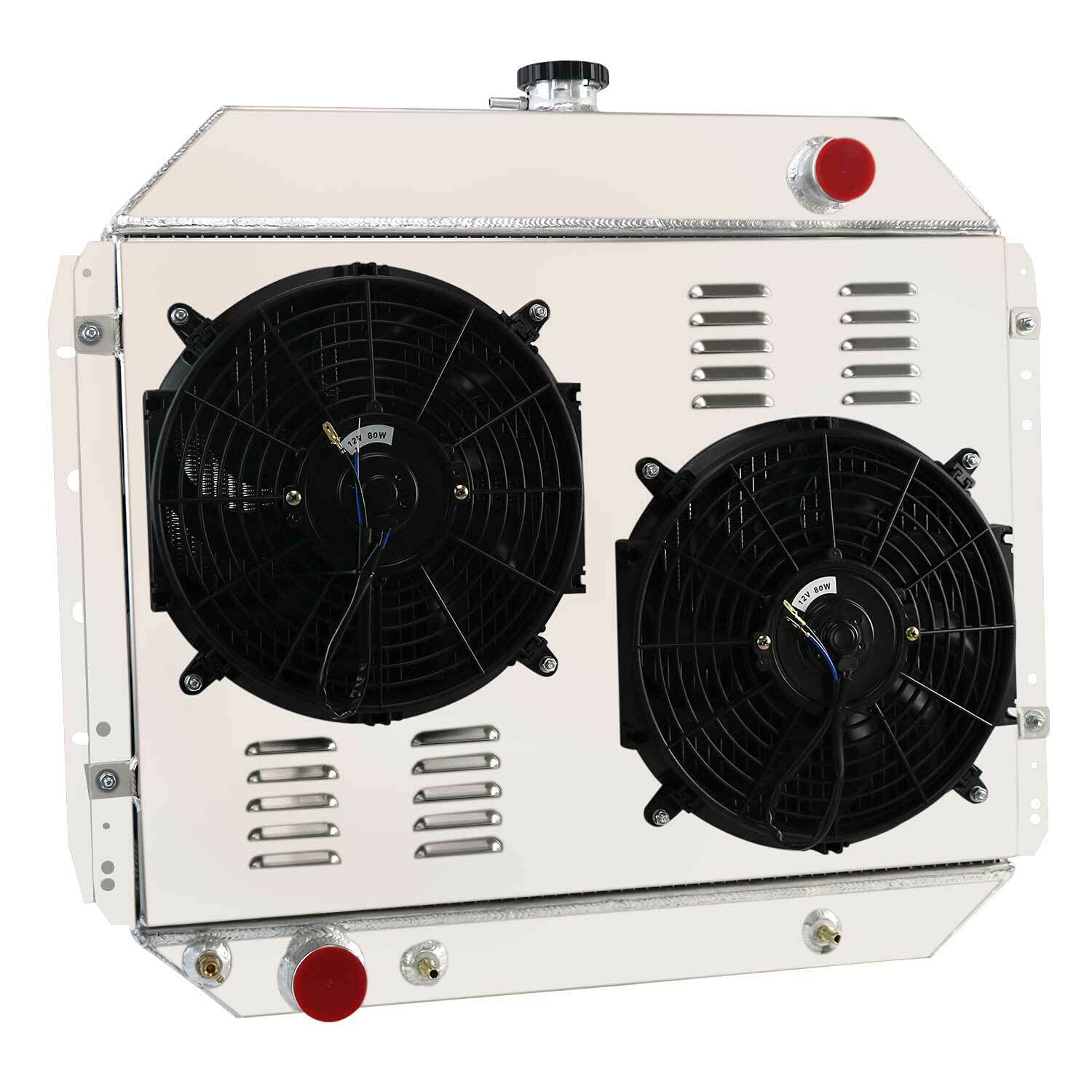

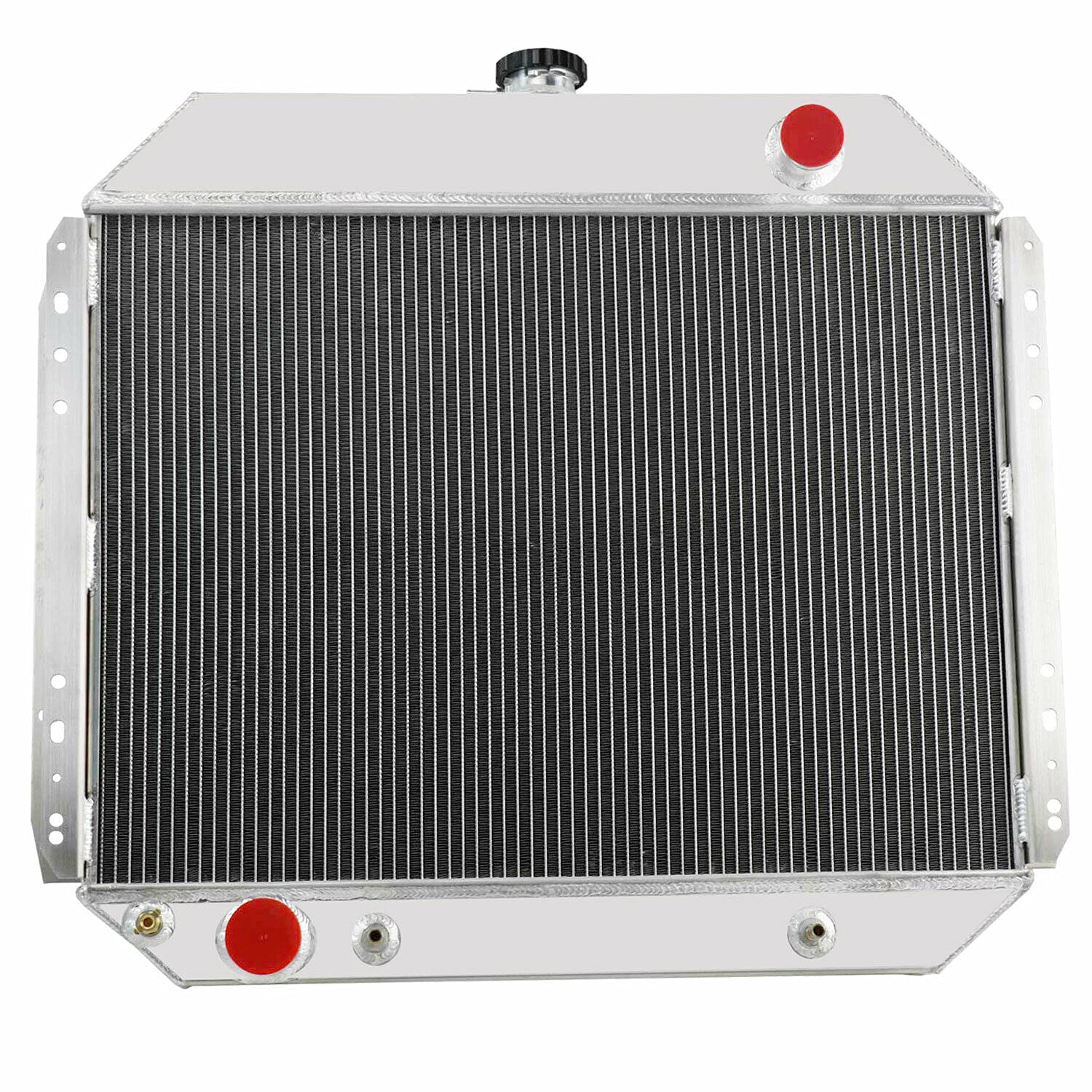

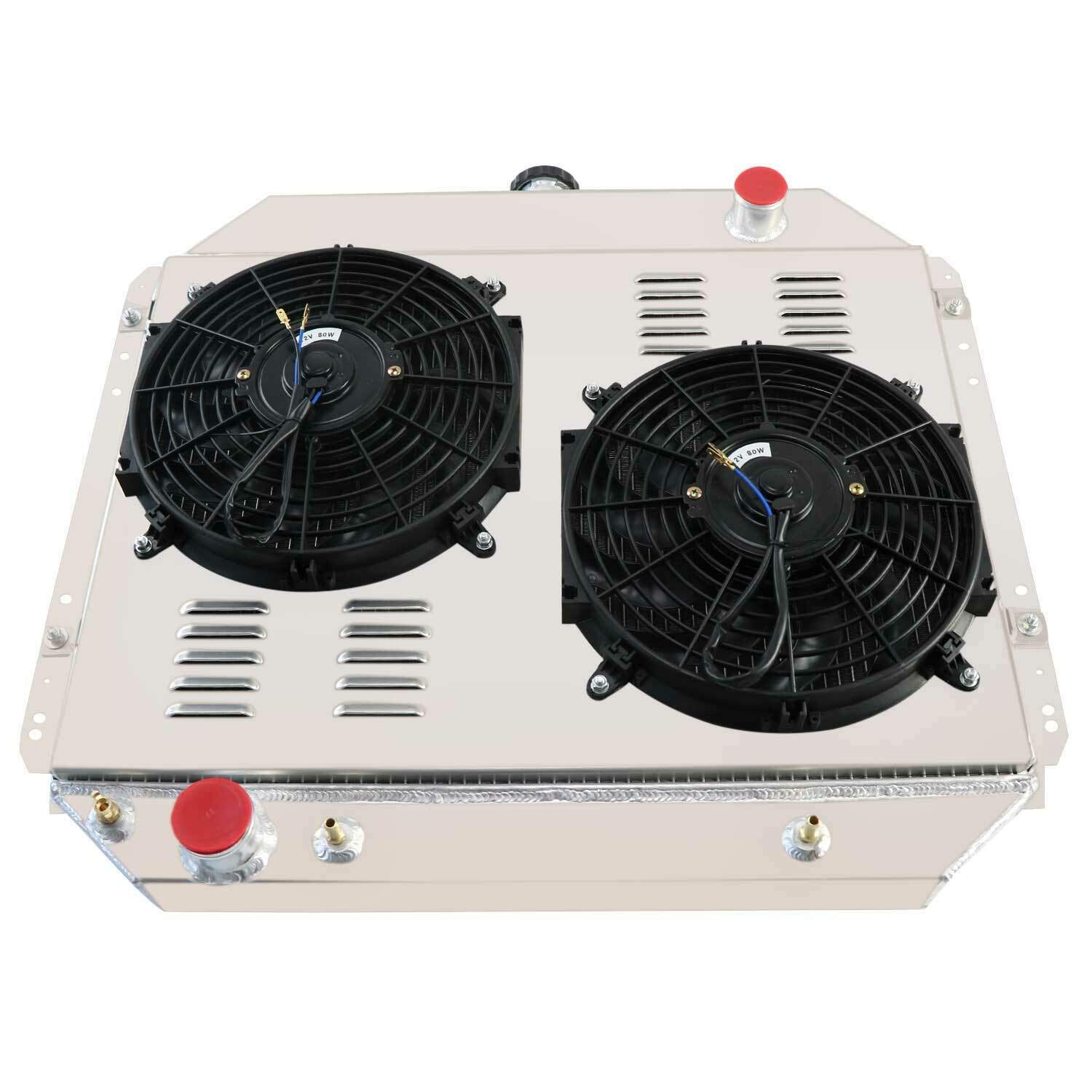

CU433 Aluminum Radiator for 1966-1979 Ford F100 F150 F250 F350 F500 Bronco Truck - 3 Row Heavy Duty Cooling System with Shroud Fans & Relay - Perfect for Off-Roading, Towing & Engine Performance Upgrades

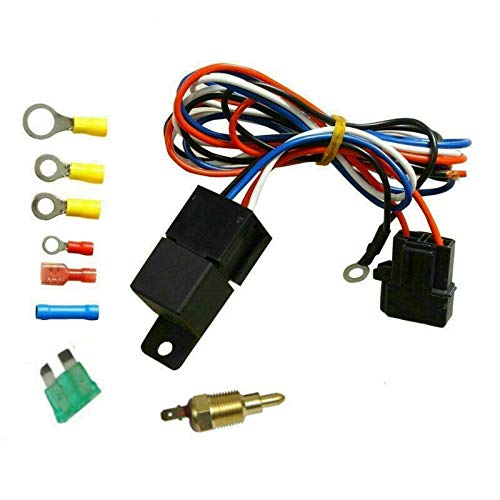

This Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications. Radiator Size: 3 Row-Core Radiator Flow: Down Flow Core Size: 19.25" H x 26.375" WOverall Size: 26.375"H x 29.5" W Inlet/Outlet Diameter: 1.75"/2" Trans Cooler Details: 1/8-27NPT Mounting Type: BRACKET Mounting Specs: Ver - 16 1/2 Horizontal - 27 3/8OEM Style Brass Petcoke Drain CNC machined filler neck and cap Aircraft 5057 grade aluminum and with raw aluminum finishPlease Check the Size Before You Buy! Fans Details： Maximum Fan CFM: 1730 cfm Fan Diameter (in): 12.050” Thickness (in): 2.500” Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Thermostat Kit: RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. Vehicle Fitment: Compatible with Ford Bronco 1978-1979 (351ci V8, 400ci V8) Compatible with Ford F-Series Truck 1968-1969 (4.9L Straight 6-cylinder, 360ci V8, 390ci V8) Compatible with Ford F-Series Truck 1970 1971 1972 (360ci V8, 390ci V8) Compatible wih Ford F-Series Truck 1973 1974 1975 (302ci V8, 360ci V8, 390ci V8) Compatible wih Ford F-Series Truck 1976 (302ci V8, 351ci V8) Compatible wih Ford F-Series Truck 1977 1978 1979 (302ci V8, 351ci V8, 400ci V8)

►Fitment Compatible with 1966-1979 1978 Ford F100 F150 F250 F350/Bronco TRUCK V8 1967 1968 1969 1970 1971 1972 1973 1974 1975 1976 1977 . Please check the vehicle fitment before you buy!

►Core Size ：19.25" H x 26.375" W / Overall Size ：26.375"H x 29.5" W;All-aluminum design with durable TIG-welded construction (AA5052 aircraft aluminum); High performance racing design, improves cooling by 35 -45% Temp.

►Cubauto 3 Row Aluminum Radiator Shroud Fan is welded in vacuum brazing furnace, no epoxy, all item is 100% inspected and tested for quality assurance.

►Easy To Install Cubauto Brand-new radiator engineered and manufactured to meet original specifications for quick installation. Direct fit and built to last long with high quality aluminum core and aluminum tanks preventing corrosion.

►After-sale Guarantee If you have any questions, please contact us, Cubauto will do our best to solve it for you and give you the best purchase experience. One-year warranty, worry-free return and exchange
