40K High-Speed Laser Galvo Scanner Set with Editable Animation - Professional RGB Stage Lighting System for Laser Shows, DJ Parties, and Live Performances

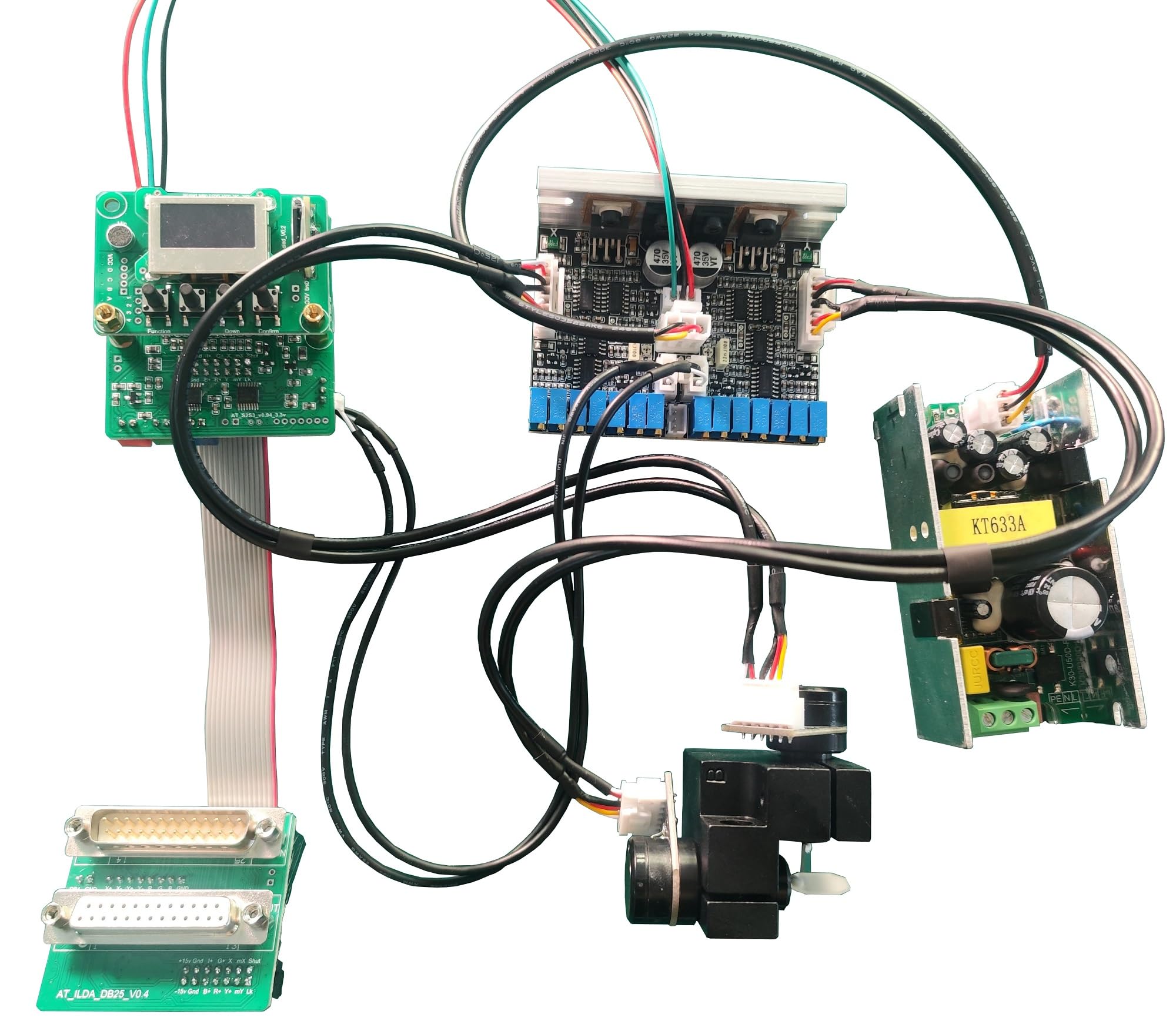

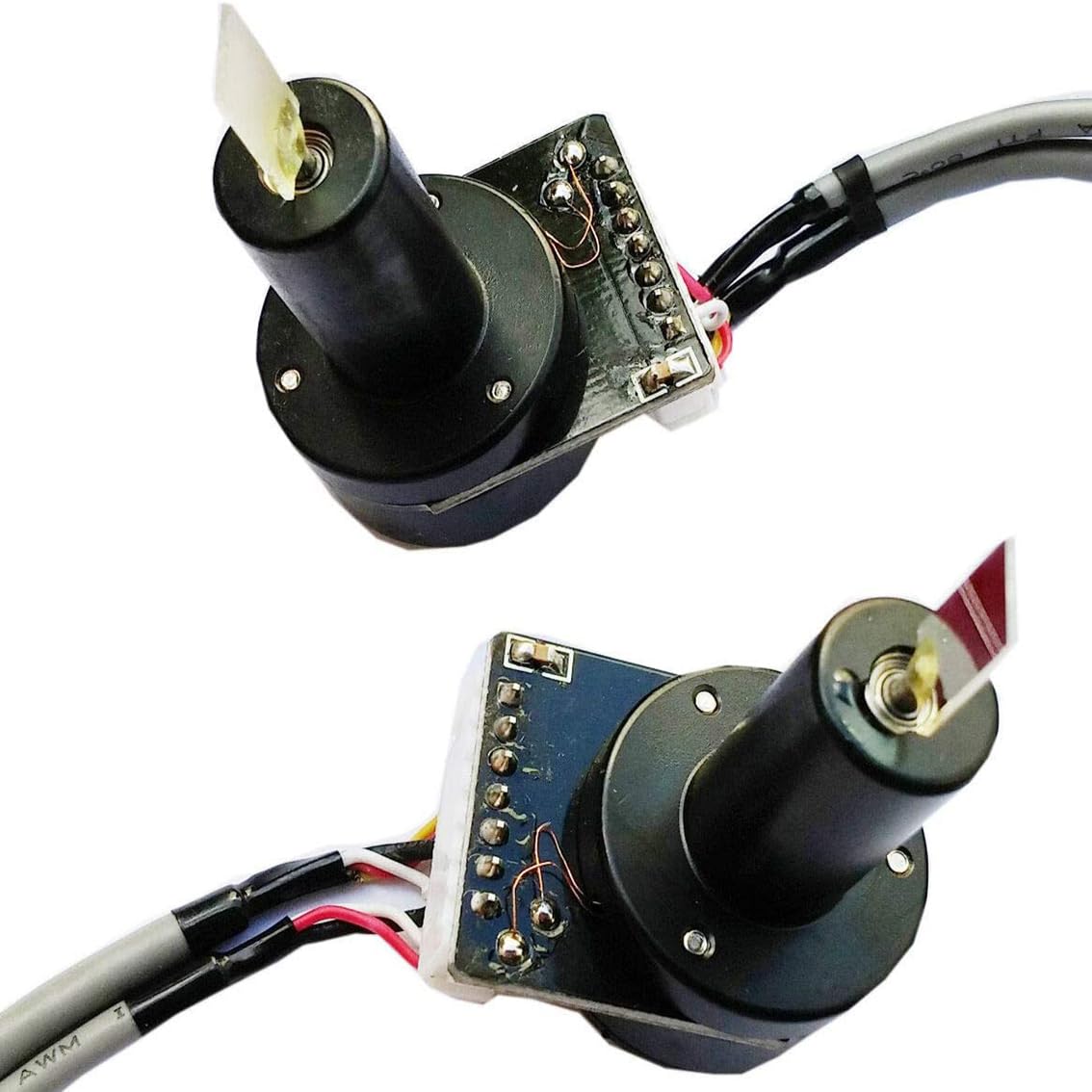

Product Description : Closed Loop Moving Magnet Scanner Input resistance: 200K ohms, differential Signal Input voltage：±5V Input voltage requirements: +15V/1.0A，-15V/0.6A Operating temperature range:0～50 degrees C Optical angle：±30° max Scanner speed:> 40Kpps (40K ILDA test-pattern ，±40°optical) Mirror dimensions WxL: 7mm*11mm*0.6mm（wide wave-length） Board size:7.4cm (long) * 5.0cm (wide) * 2.5cm (high) SPECIFICATION: Potentiometer description: IS Input scale (adjusted only in factory) SG Servo gain (power of the feedback signal for internal PID controller LFD Low frequency damping (correct overshoot) HFD High frequency damping (correct undershoot) LIN Zero offset (electrical offset of the driver, adjusted only in factory) PS Position scale (increases or decrease input sensitivity of the computer, DO NOT change it) Packages includes : Standard package includes(same as the picture showing) : 2× X Y-Scanners 1x main board （show card) 2×Mirrors 1×Scanner mount 1×power supply (PUS) 1×Cables driver to scanner 1×Cables driver to PUS 1×Cables driver to input signals

for stage animation lights, 3D scanner printing machine

The galvo was measured by an independent source and confirmed by the factory with PANGOLIN QM2000 card.

Scanning speed> 40Kpps (40K ILDA test-pattern ，±40°optical)

40Kpps Galvo Galvanometer Based Optical Scanner Including Show Card for Animation lights

Pls email us if you need a PDF user manual , we will reply within 24 business hours .
